Installing Multimedia Interface

Plug in electric plug connections of the multimedia interface.
1. 1.1. Insert jack socket -D- into the mounting until the jack socket locks into place.
2. 1.2. Insert USB interface -C- into the mounting until the USB interface locks into place.
3. 1.3. Connect plug connection for 12V supply -B- until the connector engages securely.
4. 1.4. Secure line -A- with a tie-wrap.

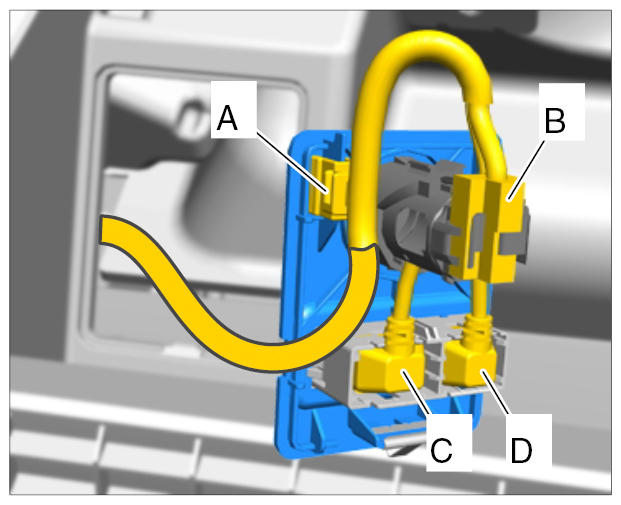

  Fig 1: Identifying USB Interface Connections
Press multimedia interface into the trim panel of the glove compartment and check that it is seated securely.
