Removing TV Tuner - Cabriolet

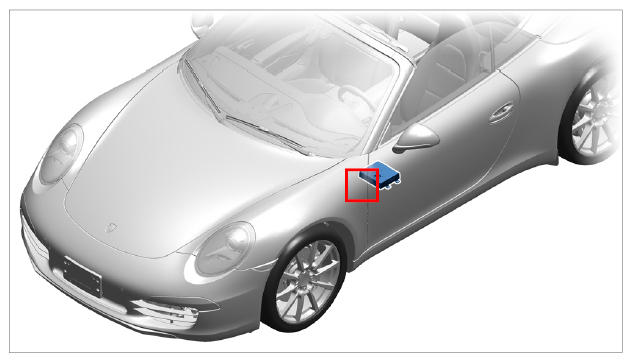

Fig 1: Removing TV Tuner

NOTE: Voltage peaks

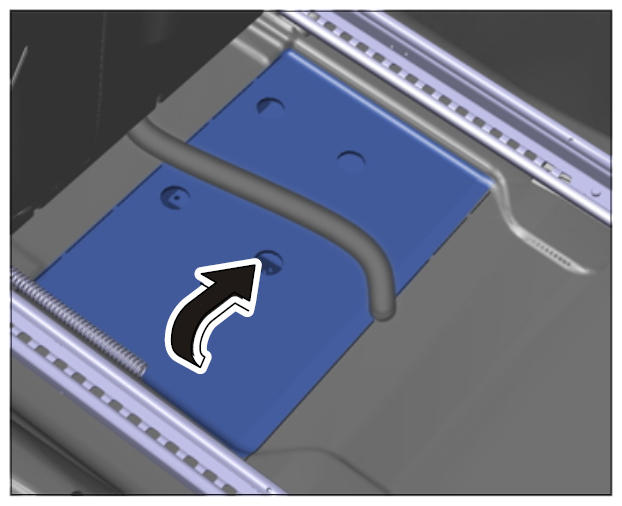

Fold carpet up -arrow- .

Fig 2: Detaching Carpet

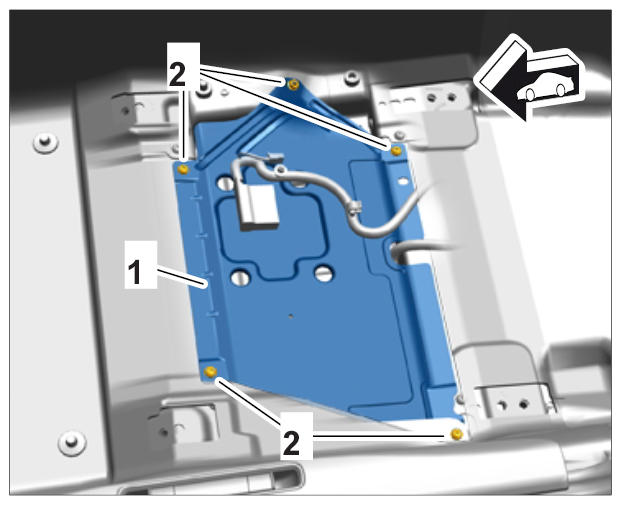

Loosen screws -2- on the reinforcement plate and remove reinforcement plate -1- .

Fig 3: Identifying Reinforcement Plate

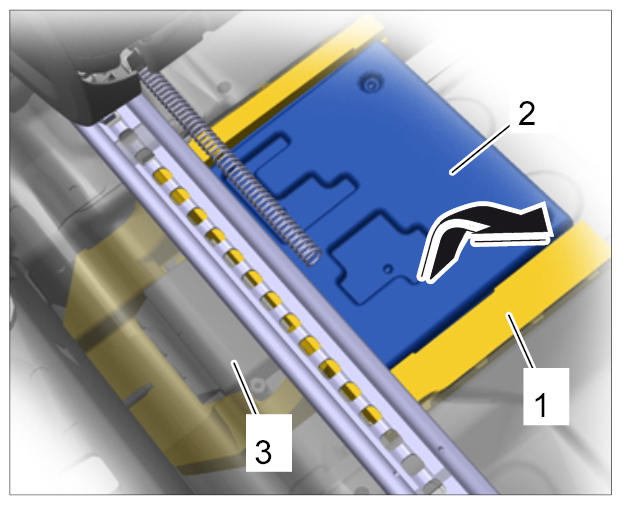

Remove foam holder -1- with the control units -2, 3- from the seat well -arrow- .

Fig 4: Removing Control Units

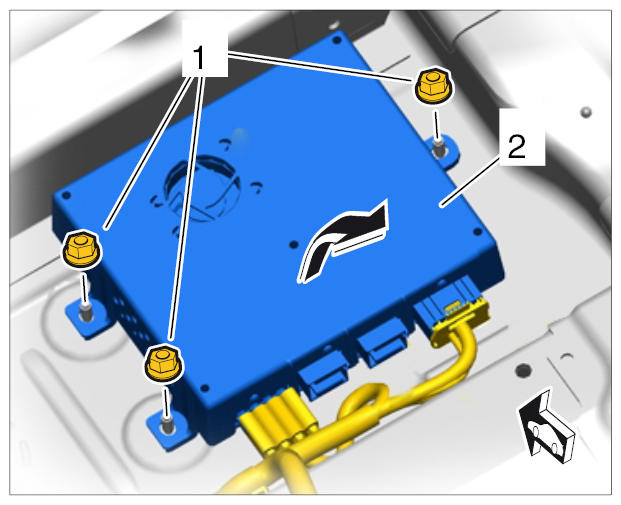

Unscrew fastening nuts -1- and remove -2- TV tuner -arrow- .

Fig 5: Removing TV Tuner

Information

The number of plug connections can vary, depending on equipment.
Release electric plug connections -arrows a- and pull them off -arrows B- .

Fig 6: Disconnecting Plug Connections
