Installing TV Tuner: Notes

Information

The number of plug connections can vary, depending on equipment.

1. Plug in electric plug connections for the TV tuner -arrows-  until they engage securely.

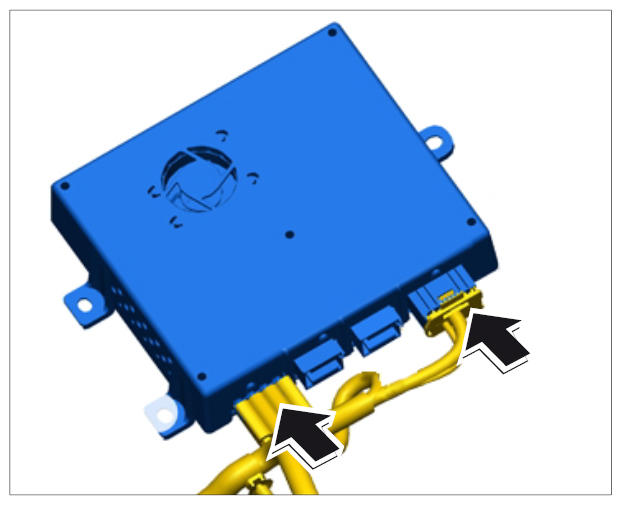

   Fig 1: Locating Plug Connections


2. Position TV tuner -2-  in the seat well -arrow-  and secure with the fastening nuts -1-  . → Tightening torque: 2.5 Nm

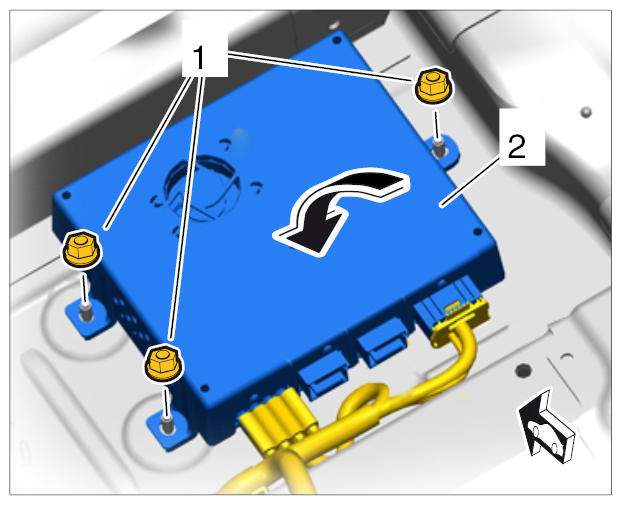

   Fig 2: Installing TV Tuner


3. Position foam holder -1-  with the control units -2, 3-  into the seat well -arrow-  and align it.
   Fig 3: Positioning Control Units


4. Fold carpet down -arrow-  and align it.
   Fig 4: Aligning Carpet


5. Move front seat into initial position.
