Installing TV Tuner - Cabriolet

Information

The number of plug connections can vary, depending on equipment.

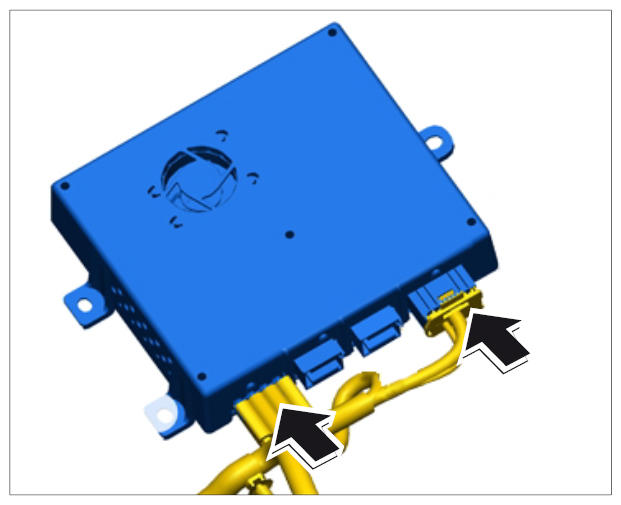

1. Plug in electric plug connections for the TV tuner -arrows-  until they engage securely.
   Fig 1: Locating Plug Connections

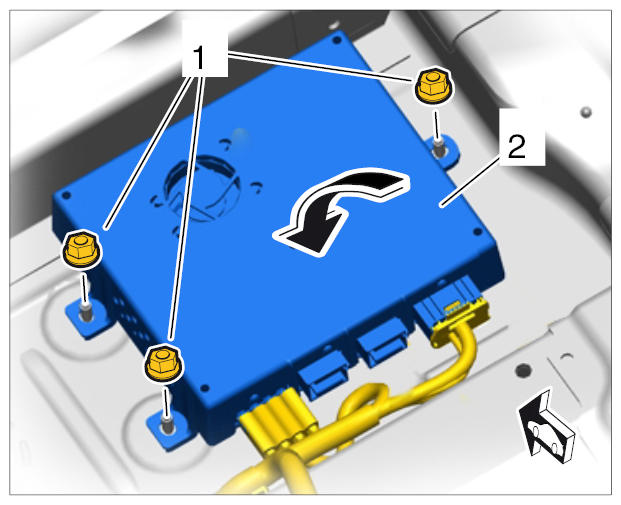

2. Position TV tuner -2-  in the seat well -arrow-  and secure with the fastening nuts -1-  . → Tightening torque: 2.5 Nm (2 ftlb.)
   Fig 2: Installing TV Tuner


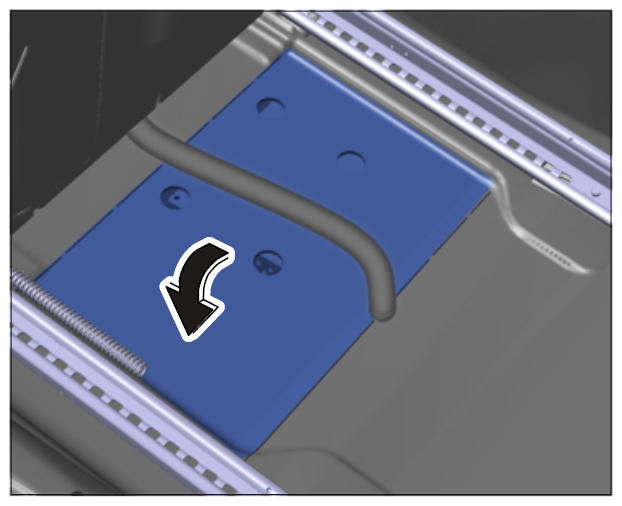

3. Position foam holder -1-  with the control units -2, 3-  in the seat well -arrow-  and align it.
   Fig 3: Positioning Control Units

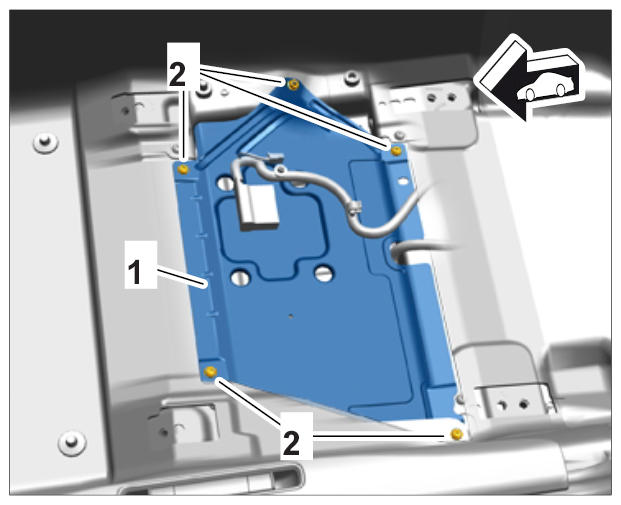

4. Fit reinforcement plate -1-  over the TV tuner and secure with screws -2-  .
   Fig 4: Identifying Reinforcement Plate


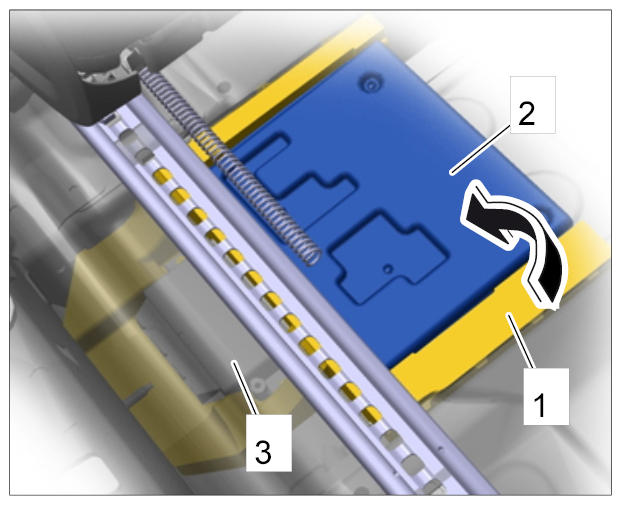

5. Fold carpet down -arrow-  and align it.
   Fig 5: Aligning Carpet


6. Move front seat to its initial position.
