Removing GPS Antenna: Notes

  1. Unclip GPS antenna -1-  (-a-  ) and remove from mounting -A-  .
    1. 1.1. Release antenna connector -2-  on the GPS antenna -b-  and unplug the connector -2-  (-B-  ).

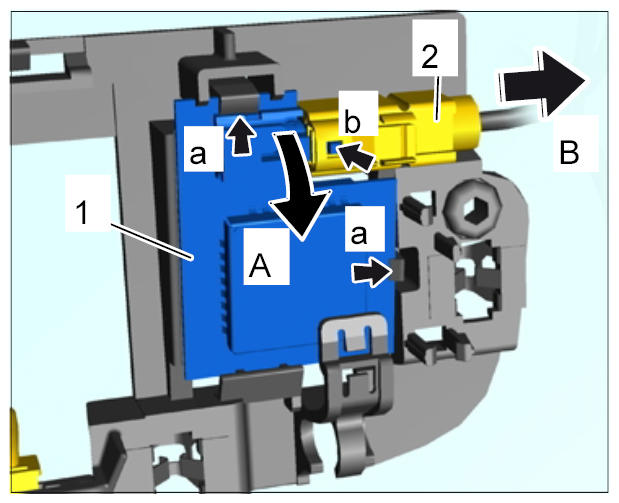

      Fig 1: Removing GPS Antenna
      G09998919
