Installing GPS Antenna

  1. Fit antenna plug -2-  (-1-  ) onto the GPS antenna -C-  until the antenna plug -2-  engages securely.
    1. 1.1. Insert GPS antenna -1-  into the bracket -A-  and clip it in -B-  .

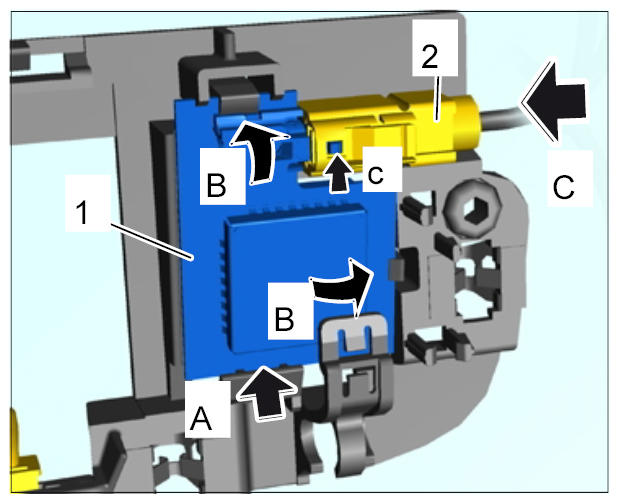

      Fig 1: Installing GPS Antenna
      G09998920
