Removing PCM Display And Operator Control Unit

Information

Ignition switched off and ignition key removed before disconnecting or connecting load.

Information

Protect center console against scratching by using a suitable cover.

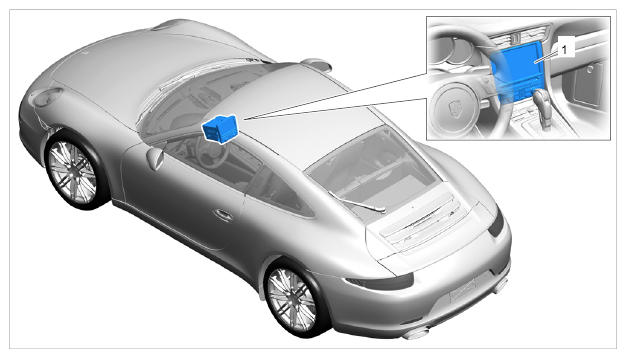

Fig 1: Identifying PCM Display And Operator Control Unit Position

• 1 - PCM display and operator control unit

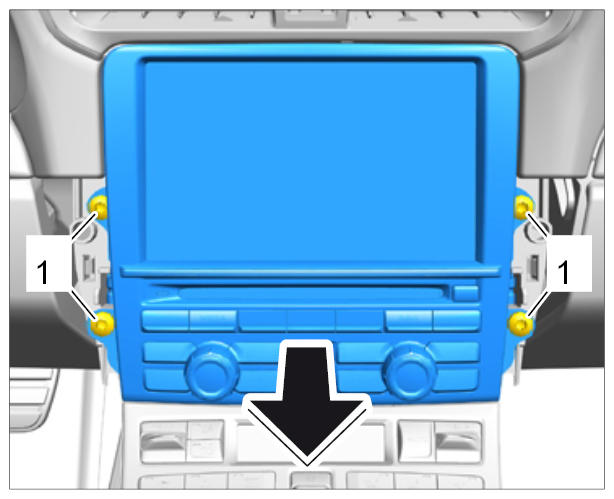

1. Unscrew the screws -1-  and pull the display and operator control unit forward -arrow-  and remove it.
   Fig 2: Pulling PCM Display And Operator Control Unit Screw-On Points

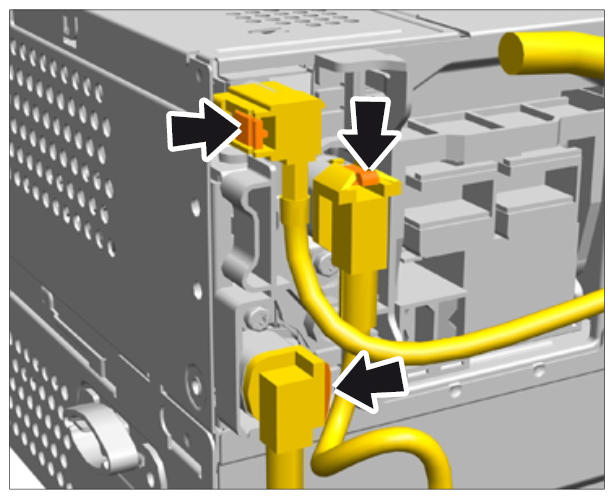

2. Unlock antenna connector -arrows-  and remove it.
   Fig 3: Disconnecting Antenna Plug

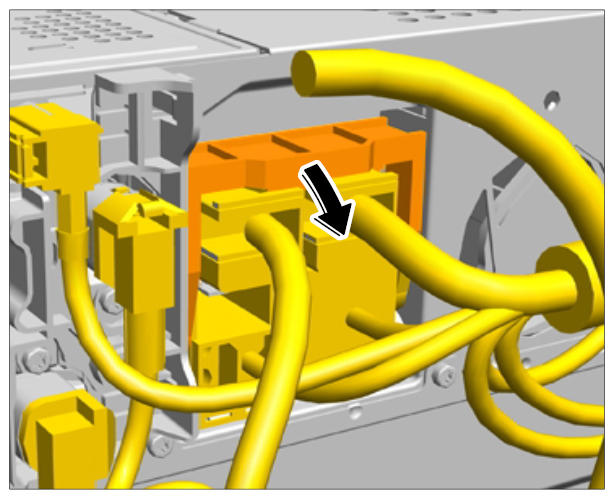

3. Pivot out the securing latch -arrow-  and disconnect combination plug.
   Fig 4: Removing Combination Plug

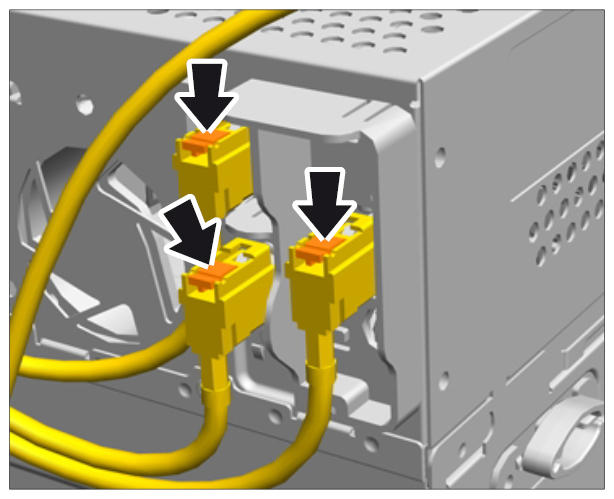

4. Unlock antenna connector -arrows-  and remove it.
   Fig 5: Disconnecting Antenna Plug


5. Remove PCM display and operator control unit
