Installing PCM Display And Operator Control Unit

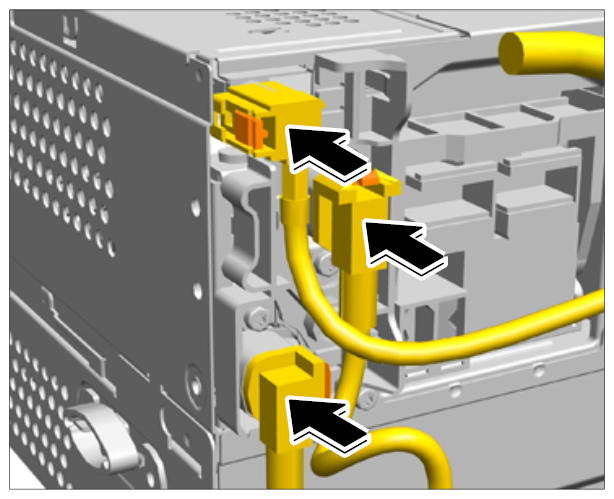

  1. Plug antenna connector into the respective coded bushings -arrows-  until the connectors engage securely.
    Fig 1: Plugging In Antenna Plug
    G09998913

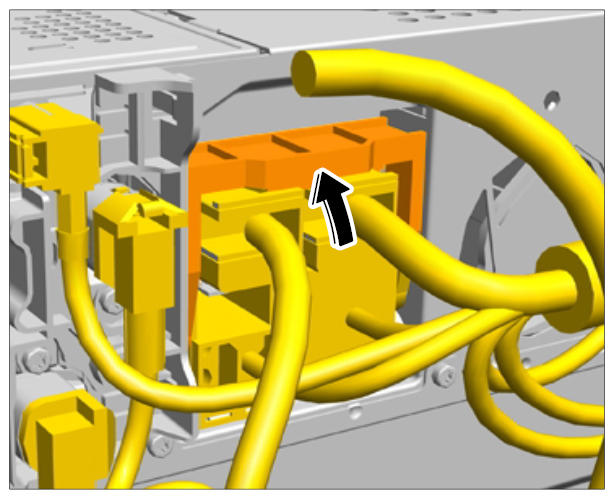

  2. Plug in combination plug and press down the swivel latch -arrow-  until it engages securely.
    Fig 2: Plugging In Combination Plug
    G09998914

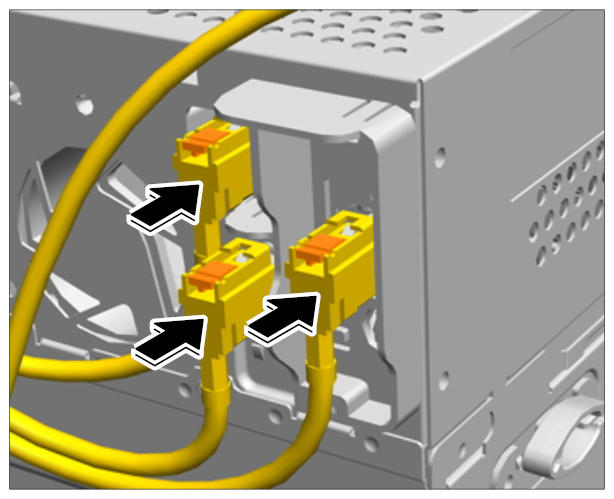

  3. Plug antenna connector into the respective colour-coded bushings -arrows-  until the connectors engage securely.
    Fig 3: Plugging In Antenna Plug
    G09998915

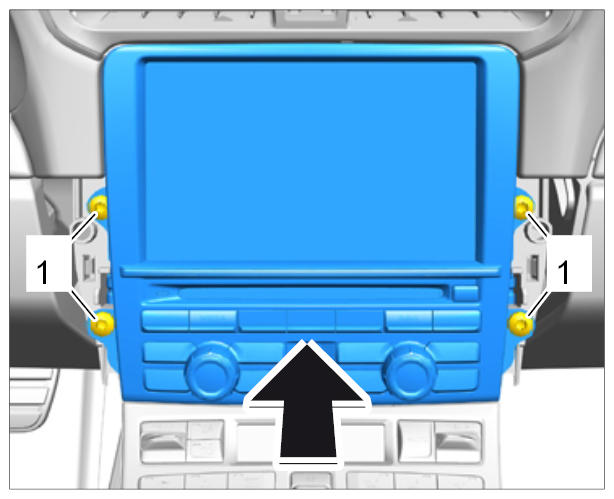

  4. Carefully press the display and operator control panel into the slot -arrow-  and make sure  that no lines are crushed.
    1. 4.1. Secure the PCM display and operator control unit with the four fastening screws -1-  .
      Fig 4: Inserting PCM Display And Operator Control Unit
      G09998916
      Location Description Type Basic value Tolerance 1 Tolerance 2
      Threaded joint of display and control panel   Tightening torque 5.6 Nm
