Removing Cigarette Lighter

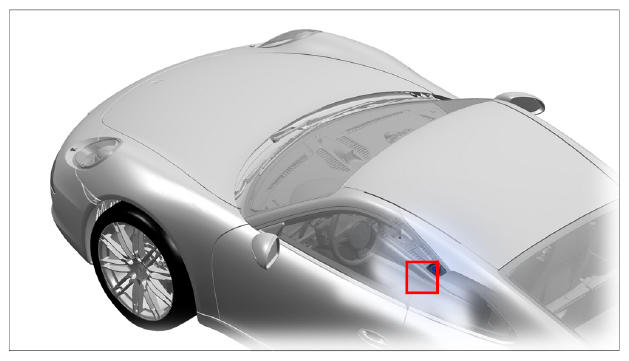

Fig 1: Identifying Cigarette Lighter Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove remote control (hand-held transmitter).

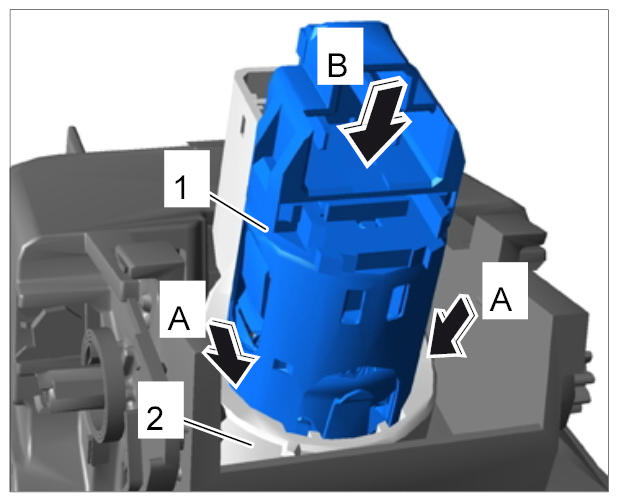

Release the cigarette lighter insert -1- at both locking lugs between the light unit -2- and the cigarette lighter insert -1- -A- and press it up and out -B- .

Fig 2: Removing Cigarette Lighter Insert
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

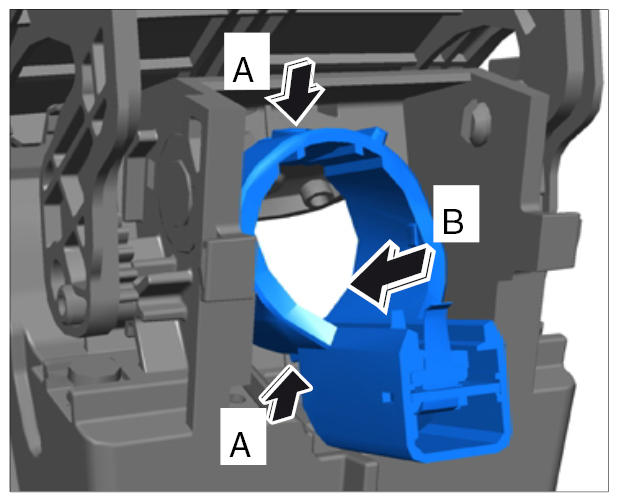

Release the light unit -A- and lift it out of the ashtray -B- .

Fig 3: Removing Light Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
