Removing Plug Socket

Remove plug socket.

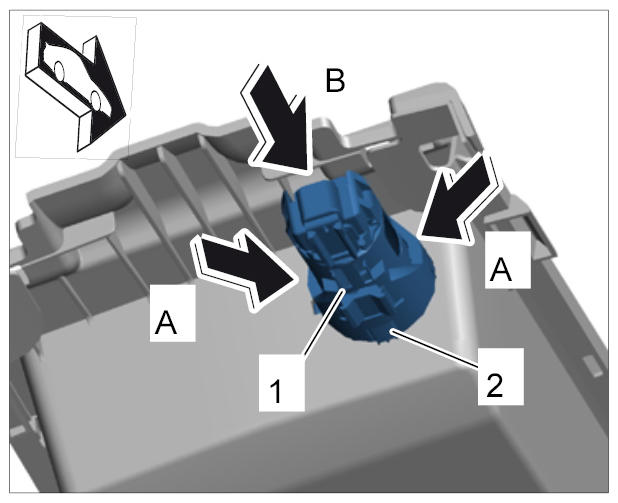

Fig 1: Removing Plug Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Release the two locking lugs between the fastening ring with cover -2- and the plug socket insert -1- using a small screwdriver -A- .
2. 1.2. Press the plug socket out of the insert -B- .
Remove fastening ring with cover.

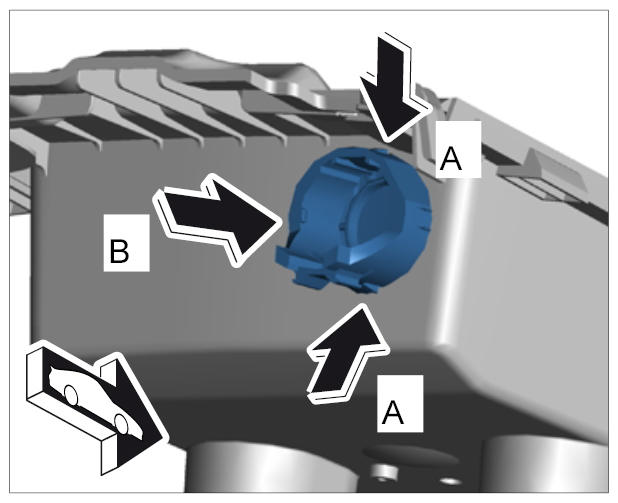

Fig 2: Removing Fastening Ring With Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Release the two locking lugs on the fastening ring -A- .
2. 2.2. Remove fastening ring -B- .
