Installing Plug Socket

Install fastening ring with cover.

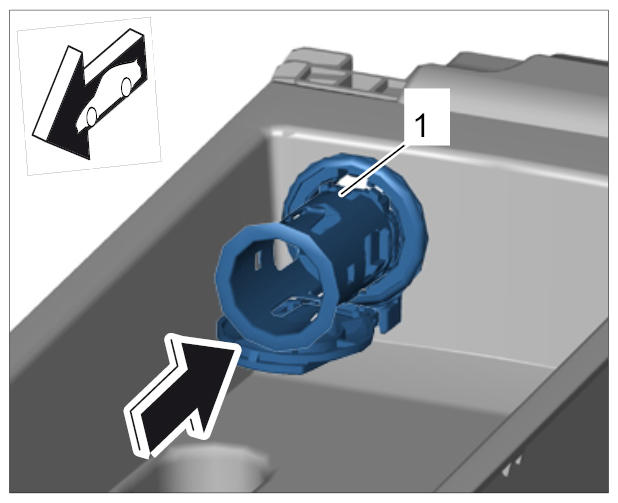

Fig 1: Installing Fastening Ring With Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Fit fastening ring with the lug -1- in the cut-out.
2. 1.2. Press in fastening ring -arrow- until it engages securely.
Install plug socket.

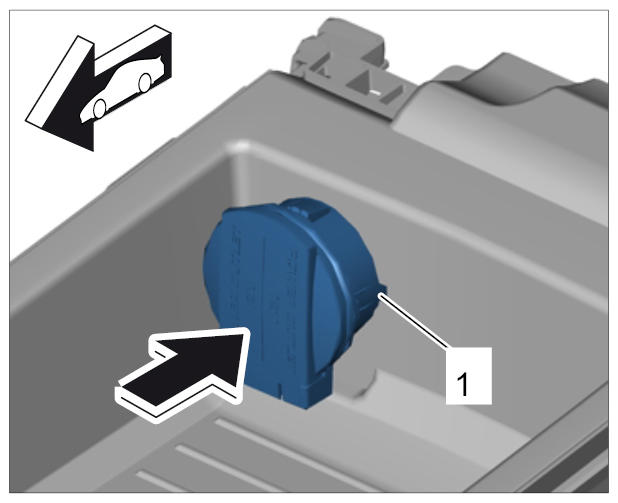

Fig 2: Installing Plug Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Fit plug socket with the guide -1- into the insert.
2. 2.2. Press plug socket into the insert -arrow- until it engages securely.
