Removing Horn

Information

The Workshop Information describes how to remove and install the left horn. The right horn is removed and installed as a mirror image of the steps described for the left horn.

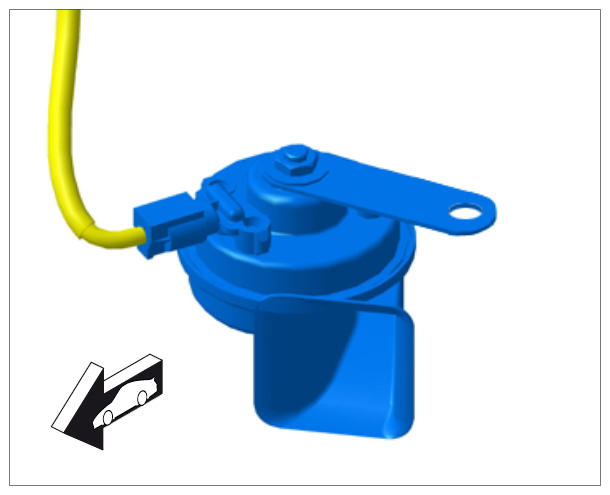

1. The horn must be removed and replaced together with the holder.
   Fig 1: Identifying Horn With Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

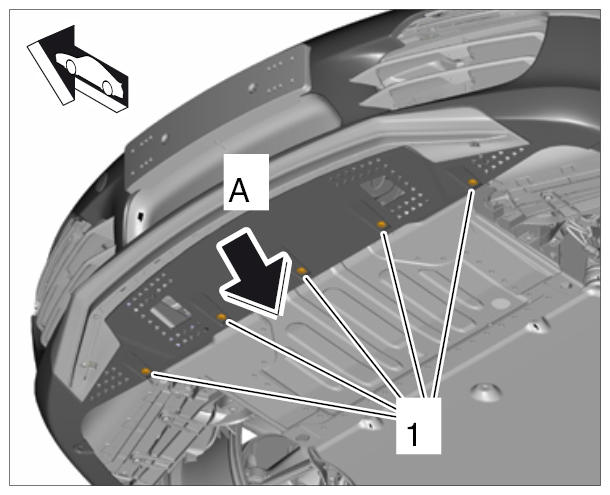

2. Unscrew the five fastening screws -1-  for the front apron and bend the front apron down slightly -arrow A-  .
   Fig 2: Detaching Front Apron

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

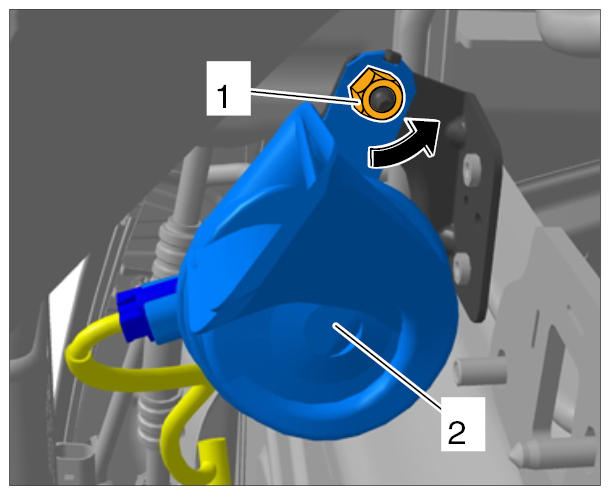

3. Unscrew the fastening nut -1-  and remove the horn together with the holder -2-  .
   Fig 3: Removing Horn

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release electric plug connection and unplug the connector on the horn.
