Removing Gateway Control Unit

Information

Ignition switched off and ignition key removed before disconnecting or connecting load.

1. Release -a-  , swivel out -A-  and pull out the gateway control unit downwards.

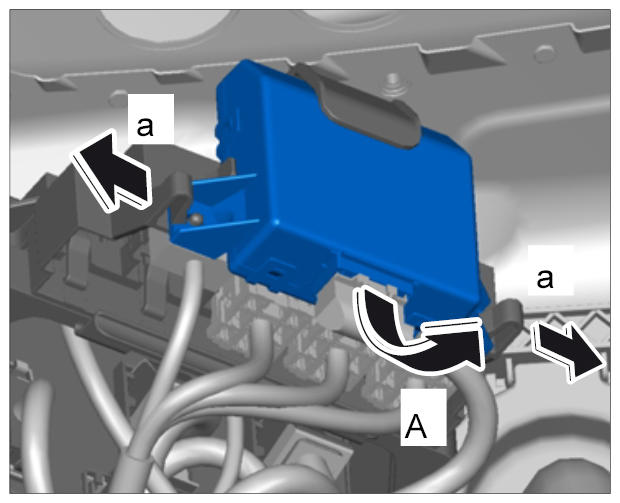

   Fig 1: Removing Gateway Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release -a-  and disconnect -A-  the electric plug connection for the gateway control unit.

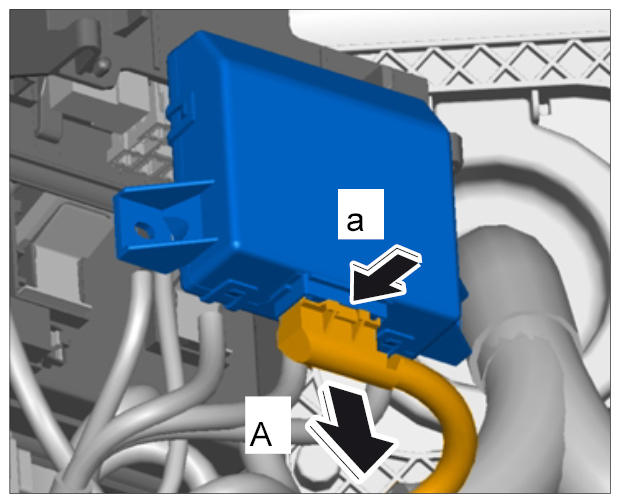

   Fig 2: Releasing Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
