Installing Gateway Control Unit

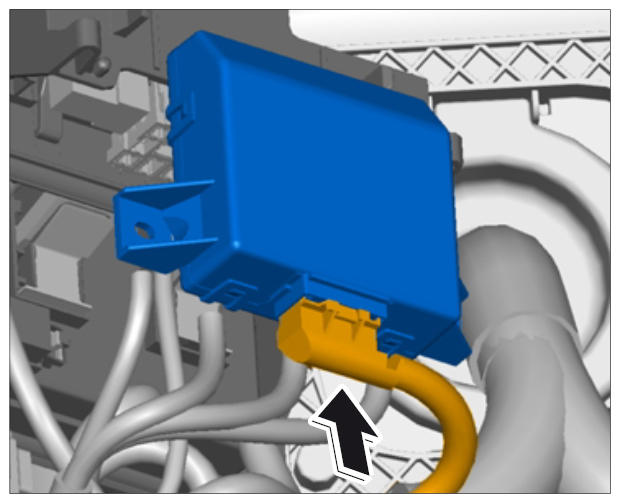

Insert the electric plug connection for the gateway control unit -arrow- until the connector engages securely.

Fig 1: Inserting Gateway Control Unit Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

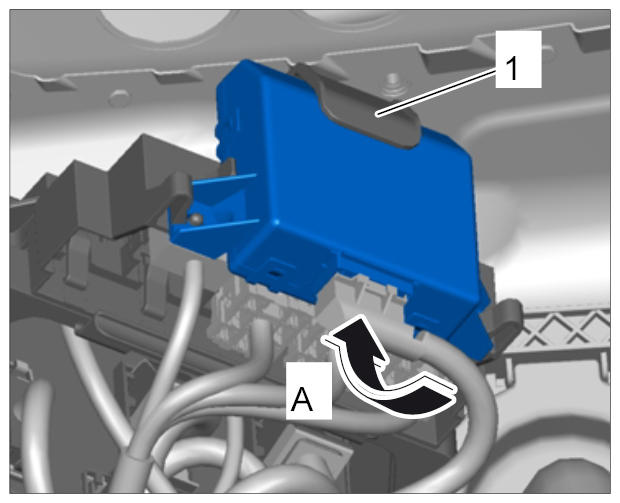

Push the control unit into the holder -1- and lock it in -A- .

Fig 2: Inserting Gateway Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
