Removing Time Management Control Unit

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A  to the vehicle battery.

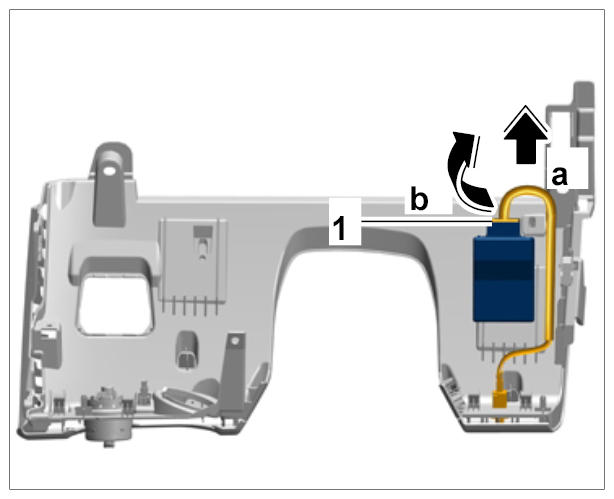

1. Release electric plug connection -1-  (-b-  ) and disconnect it -a-  .
   Fig 1: Releasing Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

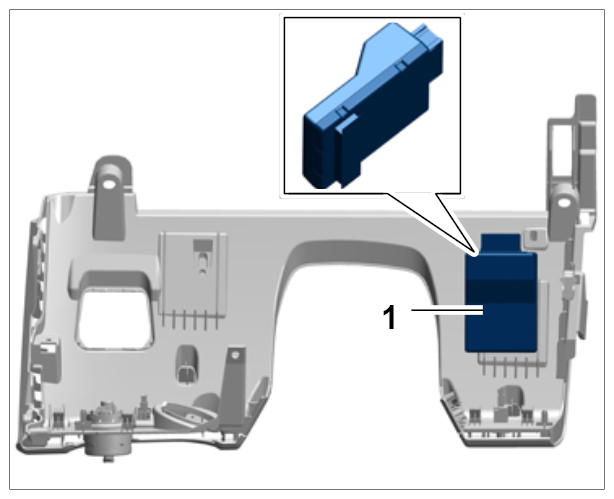

2. Remove time management control unit -1-  from the knee guard strip (left-hand drive vehicle) or dashboard (right-hand drive vehicle).
   Fig 2: Removing Time Management Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
