Removing Instrument Cluster

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

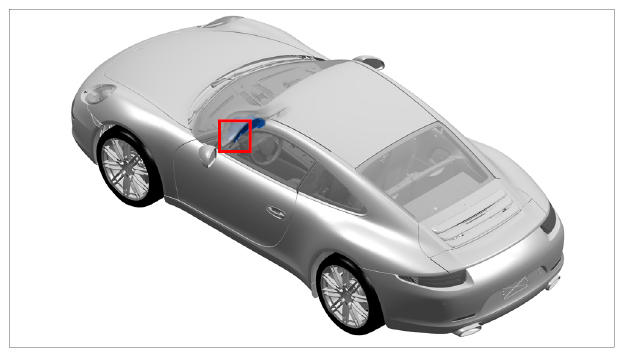

  Fig 1: Identifying Instrument Cluster Installation Position

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

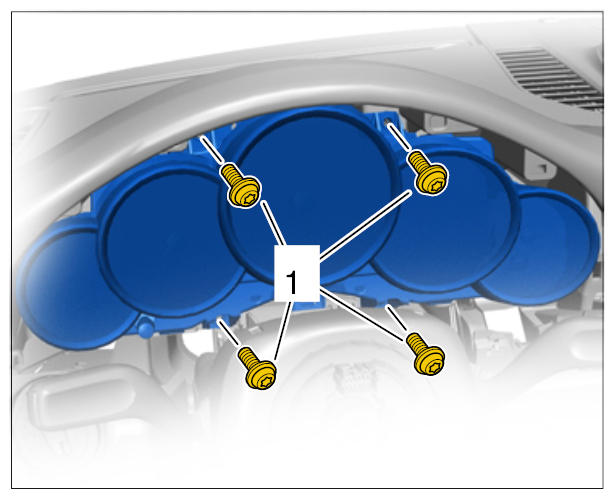

1. Unscrew fastening screws -1-  .
   Fig 2: Removing Instrument Cluster

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

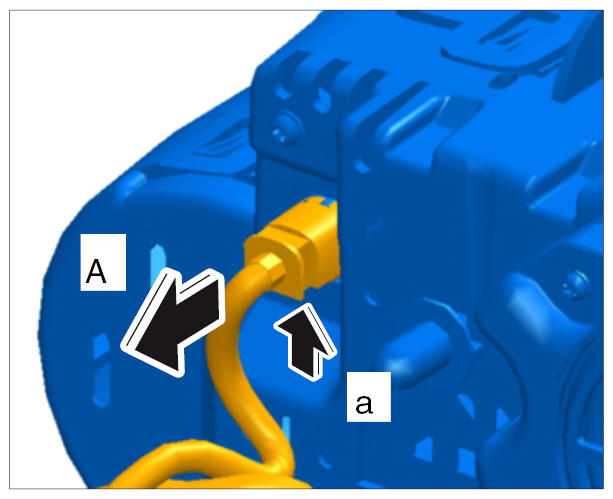

2. Release electric plug connection -arrow a-  and pull it off -arrow A-  .
   Fig 3: Releasing Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

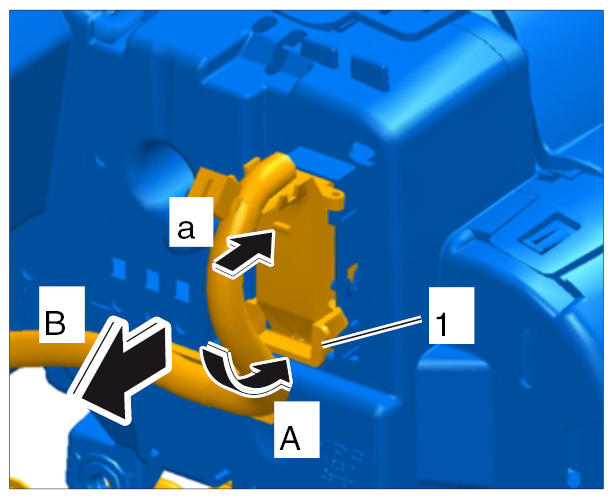

3. Release clip -1-  on electric plug connection -arrow a-  and bend it over -arrow A-  , then pull off connector -arrow B-  .
   Fig 4: Pulling Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
