Installing Instrument Cluster

  1. The instrument cluster is installed in reverse order to removal.
  2. Tighten fastening screws -1-  to → Tightening torque: 3.2 Nm (2 ft. lbs.)

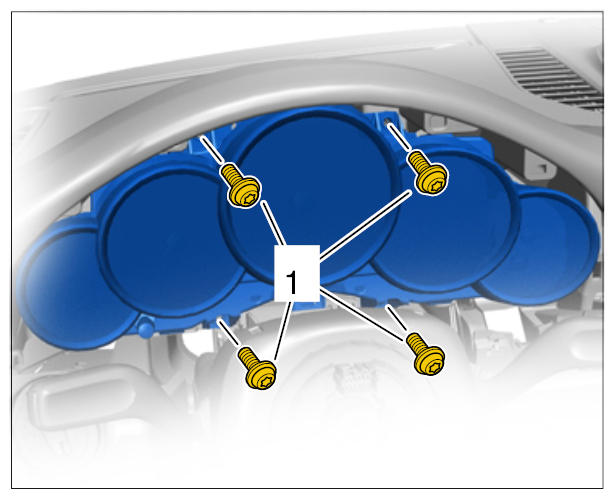

    Fig 1: Installing Instrument Cluster
    G09998875Courtesy of PORSCHE CARS NORTH AMERICA, INC.
