Removing Stopwatch

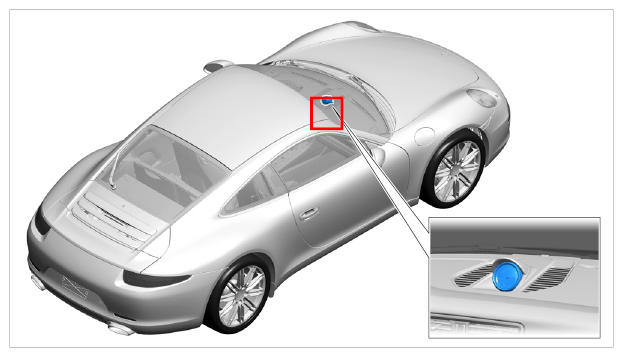

Fig 1: Identifying Stopwatch Installation Position
G09998866Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Turn trim panel for center loudspeaker -3-  around and unscrew the fastening screws -1-  .

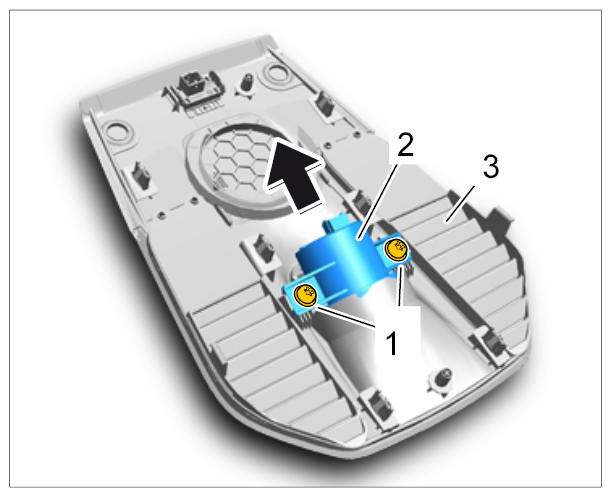

    Fig 2: Removing Stopwatch
    G09998867Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove stopwatch -2-  from the trim panel for the center loudspeaker -3-  (-arrow-  ).
