90 - Instruments -- 911 CARRERA (991)
>>
WM 900319 Removing And Installing Dashboard Inset (All Models)
>>
Removing Dashboard Inset
Removing Dashboard Inset

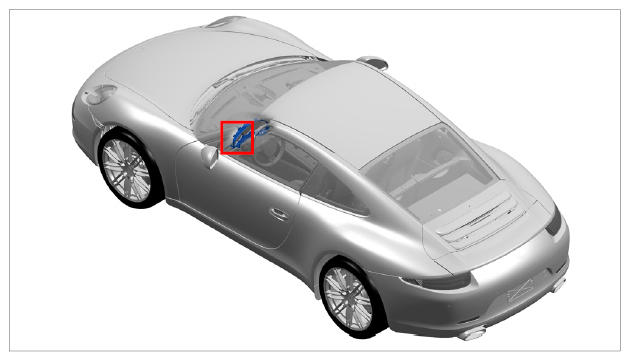

Fig 1: Identifying Dashboard Inset Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip dashboard inset from the locks
-arrows-
from right to left.

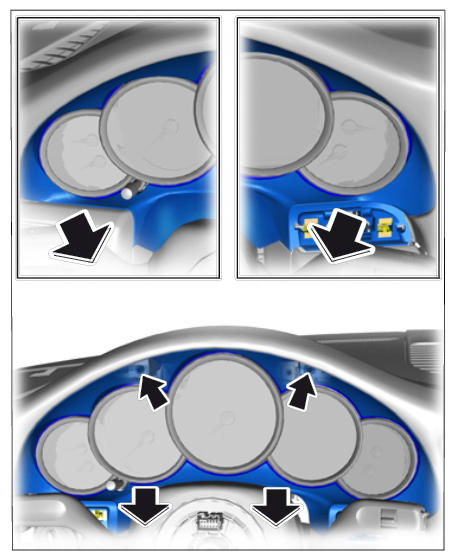

Fig 2: Removing Dashboard Insert
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
