Removing Door Hinge (On Body Side)

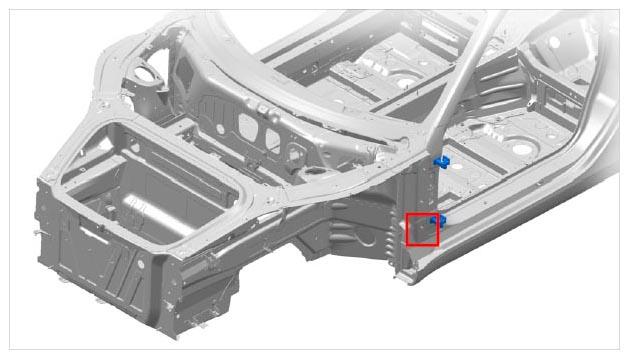

Fig 1: Identifying Door Hinge
G09994080Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Separate inert-gas welded seams
    1. 1.1. Separate inert-gas welded seams in areas -A-  and -B-  using a parting grinder or spherical cutter.

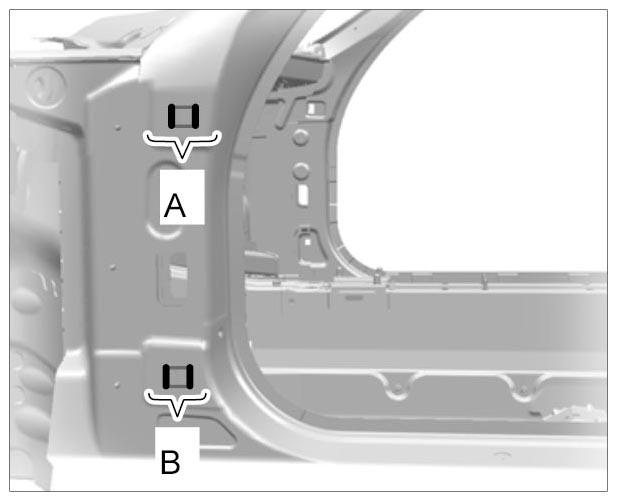

      Fig 2: Separating Inert-Gas Welded Seams
      G09994081Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Separate inert-gas welded seams
    1. 2.1. Separate inert-gas welded seams in areas -A-  and -B-  using a parting grinder.

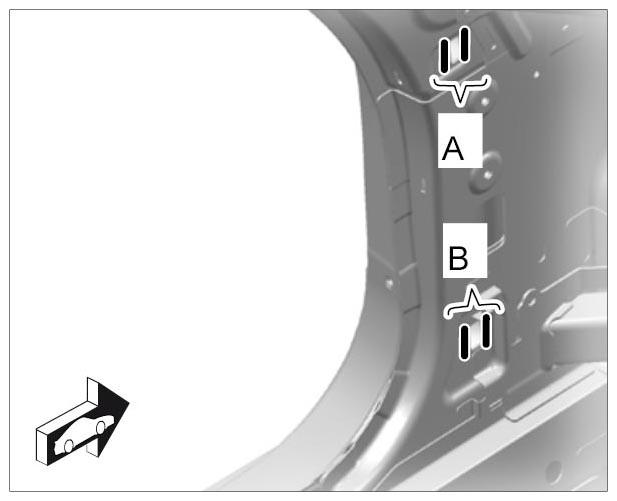

      Fig 3: Separating Inert-Gas Welded Seams
      G09994082Courtesy of PORSCHE CARS NORTH AMERICA, INC.
