Removing Porsche Doppelkupplung (PDK)

  1. Support transmission with a transmission jack.
  2. Remove heat protection on the transmission.

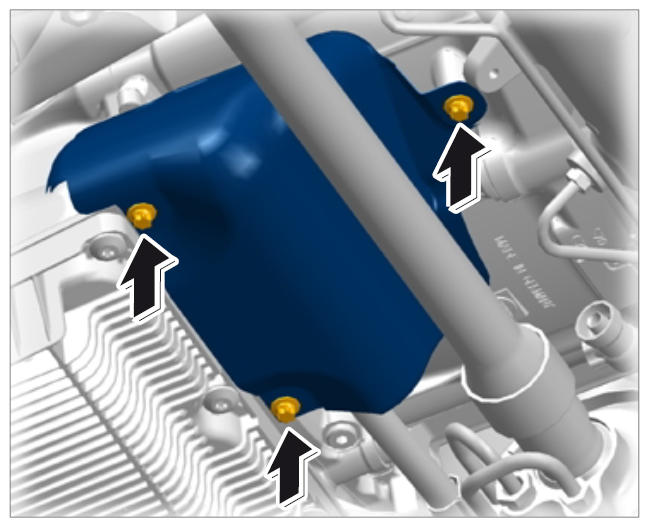

    Fig 1: Locating Heat Shield For PDK Wiring Harness
    G09806856Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Disconnect connector on the transmission by turning it 1/4 turn to the left.

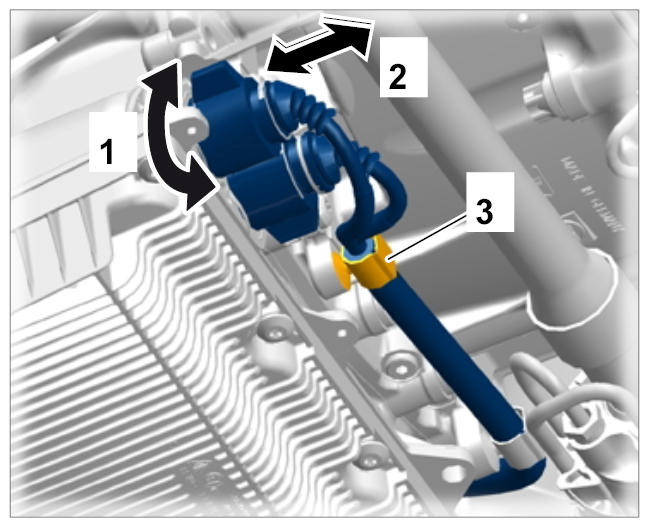

    Fig 2: Disconnecting Connectors On PDK Wiring Harness
    G09806857Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Together with all-wheel drive: Fit the impact puller 9799  using 4 screws -1-  to the groove in the connecting shaft.

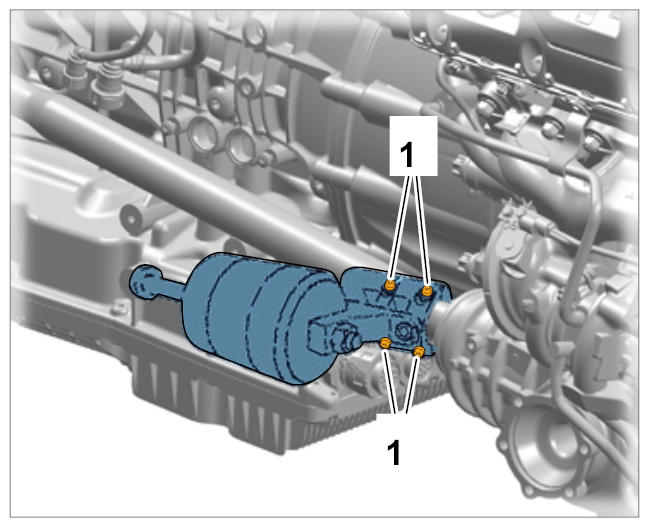

    Fig 3: Identifying Fitting Tool
    G09806858Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Together with all-wheel drive: Remove connecting shaft from the all-wheel final drive using impact puller 9799  . This pushes the connecting shaft into the PDK transmission.

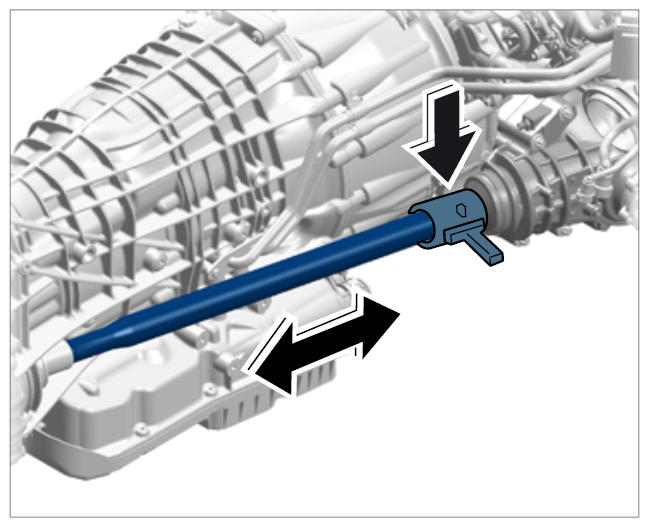

    Fig 4: Removing And Fitting Connecting Shaft
    G09806859Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Place a drip pan underneath.
    WARNING: Hot fluid
    • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

  7. Disconnect ATF line on the transmission.

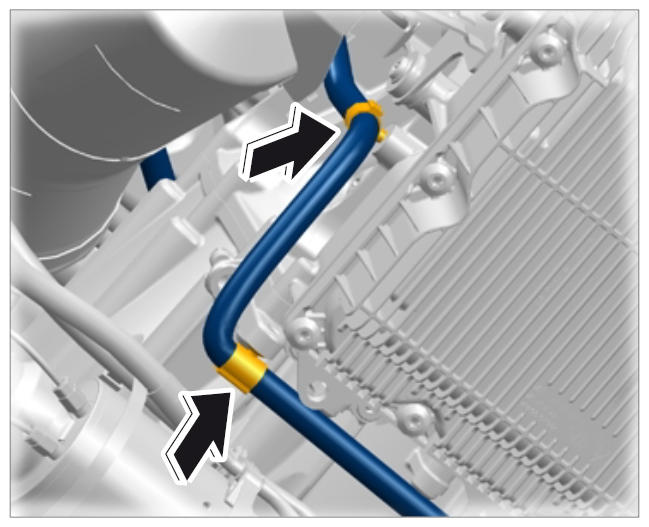

    Fig 5: Locating Retaining Clips On PDK Wiring Harness
    G09806860Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Press locking cable off the gear lever on the transmission using the disassembly tool Nr.21  .

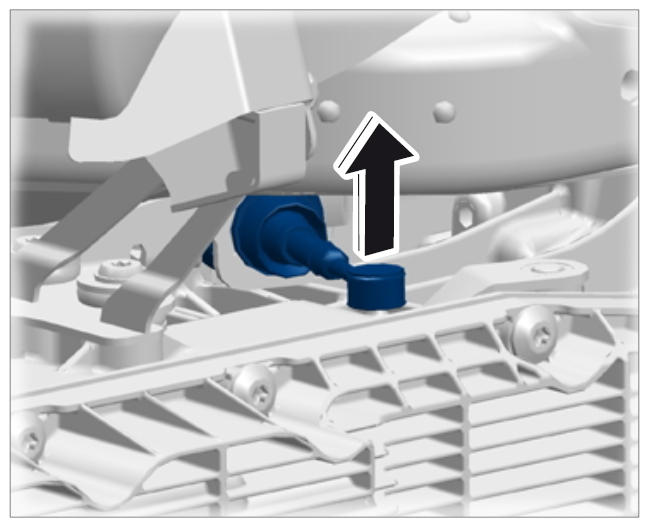

    Fig 6: Removing Parking Lock Cable
    G09806861Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Press fastening part on the locking cable up and pull it backwards out of the support.

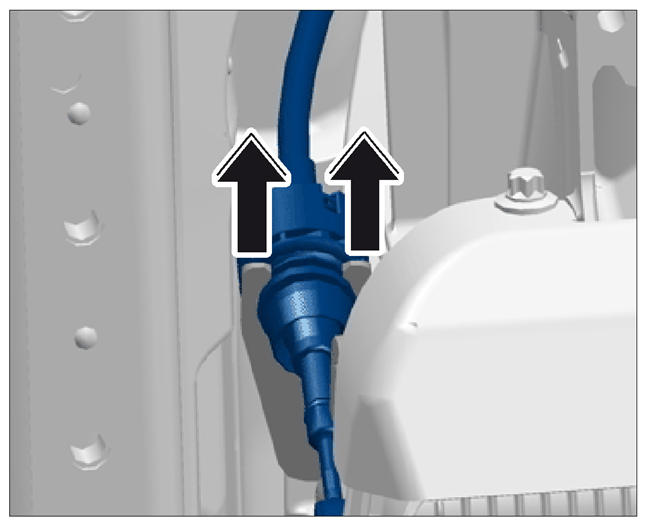

    Fig 7: Removing Parking Lock Cable Support
    G09806862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ↓ Information

    The ATF pan must cover the complete surface of the transmission jack.

    If this is not the case, the gap at the ATF pan must be filled with a suitable object (piece of wood).

  10. Support transmission with a transmission jack and secure with a retaining strap.
  11. Unscrew fastening screws from transmission support.

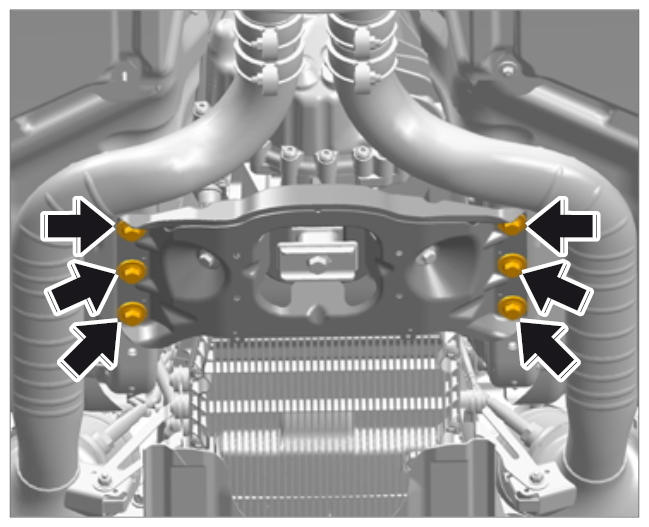

    Fig 8: Locating Fastening Screws On Transmission Mount
    G09806863Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Unscrew fastening screws for securing transmission to engine.

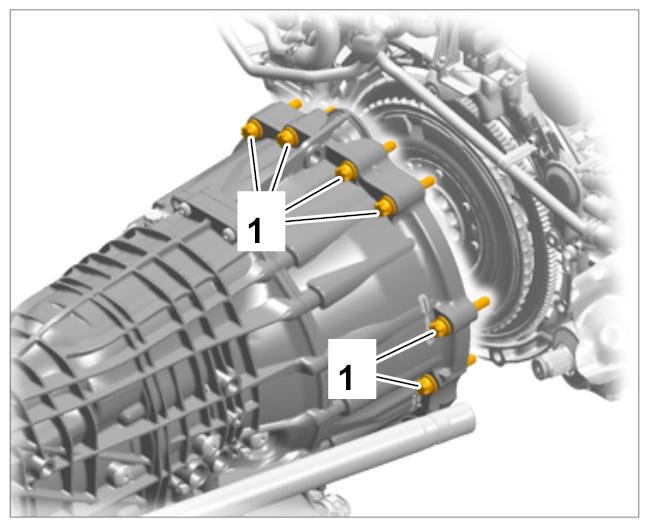

    Fig 9: Identifying PDK On Engine Fastening Screws
    G09806864Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Remove transmission.
