Installing Boost Pressure Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Insert boost pressure sensor into the Y-pipe and install screw.

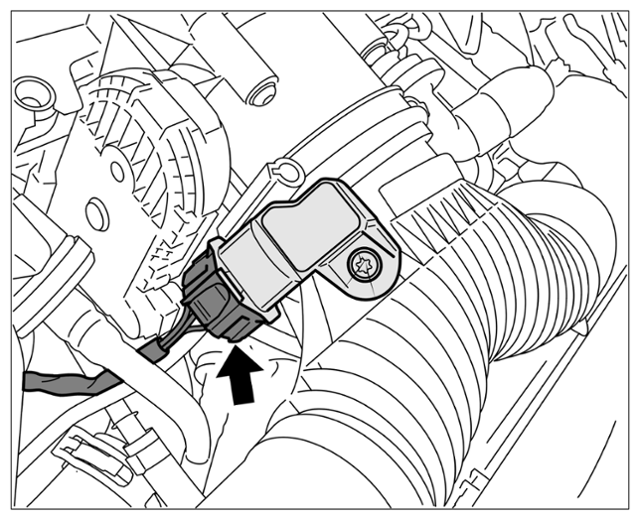

  2. Connect boost pressure sensor connector -position arrow-  .
    G15198656Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Boost sensor connector
