Installing Charge Air Cooler

Installation is performed in reverse order.

1. Guide charge-air cooler in sideways.
2. Screw in fastening screws on charge-air cooler.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

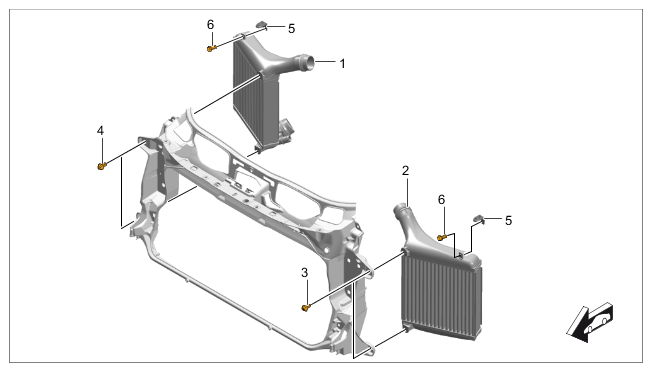

   Mounting point for charge-air cooler

   Fit the two fastening screws -3 and 4-  on the charge-air cooler at the lock carrier. > Tightening torque 6.5 Nm (4.5 ftlb.)

   Fit fastening screws -6-  between charge-air cooler and wing. > Tightening torque 10 Nm (7.5 ftlb.)

3. Fit accessories on charge-air cooler.

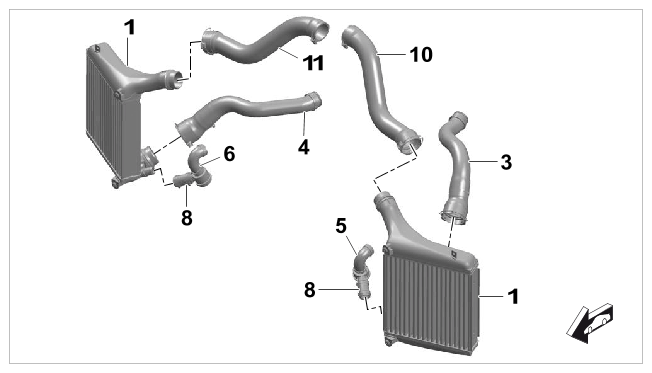

   Fig 1: Charge-Air Cooler Connections Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Charge-air cooler connections

   1	Charge-air coolers, left and right
   3	Pressure hose, left
   4	Pressure hose, right
   5	Ambient air line
   6	Ambient air line
   8	Connection between charge-air cooler and ambient air line
   10	Charge air line, left
   11	Charge air line, right

   Fit pressure hose -3 and 4-  on the charge-air cooler at both sides.

   Fit hose for ambient air valve -5 and 6-  to the suction hose from the turbocharger at both sides.

   Fit hose from ambient air valve -8-  on the charge-air cooler at both sides.

   Fit the air guide for the air cleaner housing at both sides.

   > WM 243619 REMOVING AND INSTALLING FRONT AIR GUIDE AT THE SIDE (PANAMERA, PANAMERA 4)

   1. 3.4.1  Open the retaining clip on the front wire harness on the right side and secure the wire harness in the holder.

      Lower the vehicle.

      Fit charge air line -10 and 11-  between the charge-air cooler and the air box for the throttle valve at the charge-air cooler on both sides.
