Component Overview

WARNING: This page is about a different variant/trim than selected.

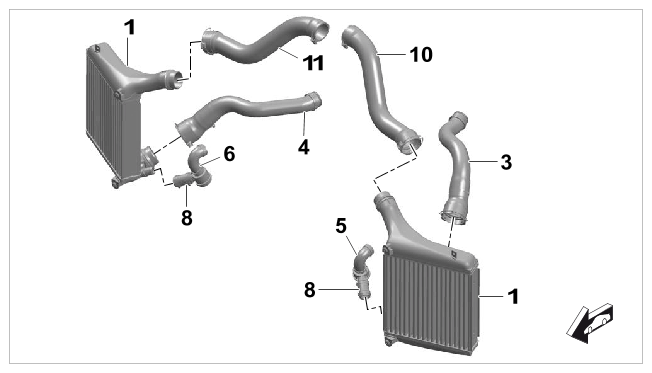

Fig 1: Charge-Air Cooler Connections Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge-air cooler connections

1	Charge-air coolers, left and right
3	Pressure hose, left
4	Pressure hose, right
5	Ambient air line
6	Ambient air line
8	Connection between charge-air cooler and ambient air line
10	Charge air line, left
11	Charge air line, right

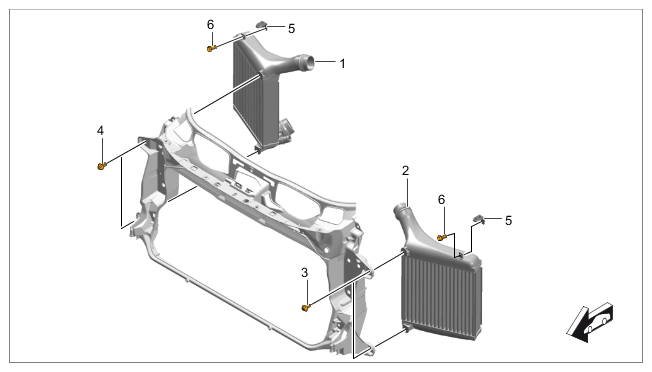

Fig 2: Charge-Air Cooler Mounting Point Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting point for charge-air cooler
