Installing Pressure Pipes

WARNING: This page is about a different variant/trim than selected.

Fit upper pressure pipes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

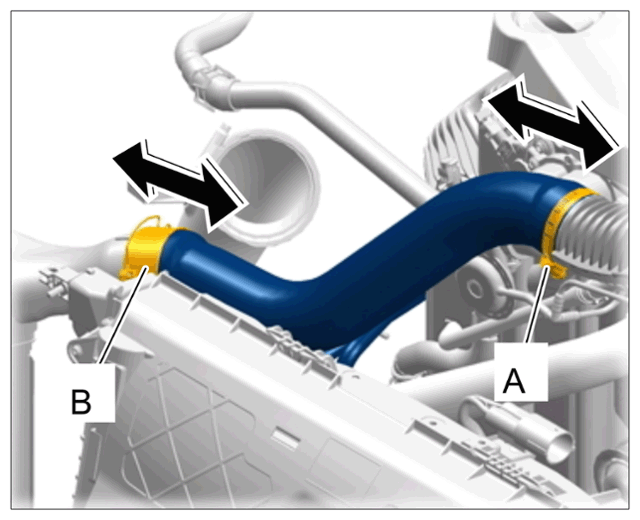

Upper pressure pipe (right side shown here)

Insert pressure pipes and make sure that the tension locks -B- engage securely on the charge-air cooler.

Fit screws on hose clamps -A- at the throttle valve air box at both sides.
Fit air boxes on both sides.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

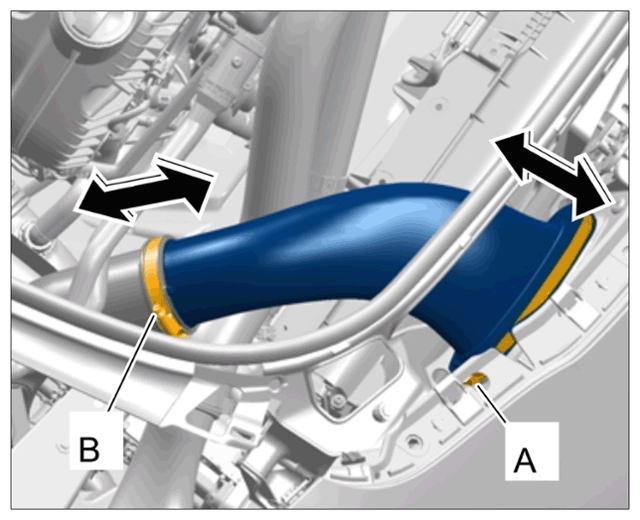

Air box (right side shown here)

Fit air boxes on the air cleaner housing and intake manifold.

Fit screws on the hose clamps at the air cleaner housing -A- and intake manifold - B- .
Raise the vehicle.
> WM 4X00IN LIFTING THE VEHICLE (EXCEPT PANAMERA GTS, PANAMERA TURBO S, PANAMERA PLATINUM ED., PANAMERA 4 PLATINUM ED.)
Fit pressure pipes on the turbocharger and charge-air cooler -A and B- and make sure that the tension locks engage securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

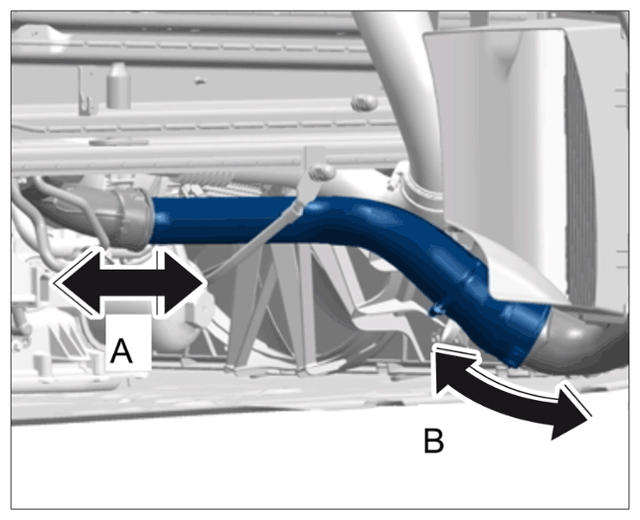

Tension locks on pressure pipe (right side show i here)
