Component Overview
WARNING: This page is about a different variant/trim than selected.

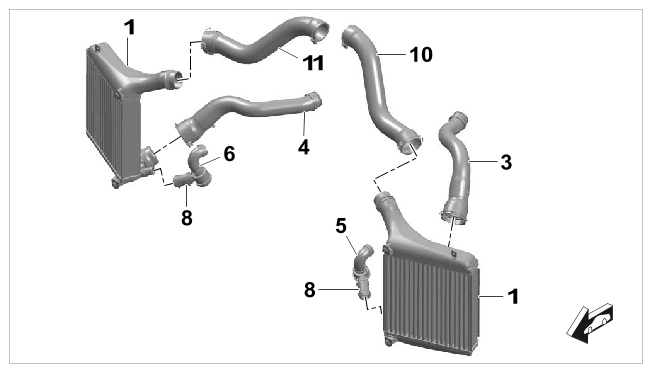

Charge air cooler connections
| 1 | Charge-air coolers, left and right |
| 3 | Pressure hose, left |
| 4 | Pressure hose, right |
| 5 | Ambient air line |
| 6 | Ambient air line |
| 8 | Connection between charge-air cooler and ambient air line |
| 10 | Charge air line, left |
| 11 | Charge air line, right |
