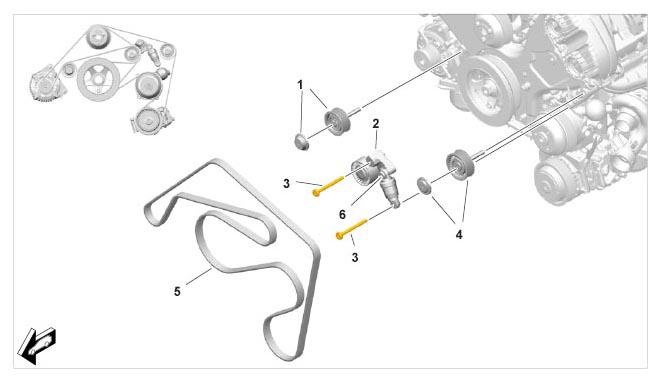

Belt Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Deflection roller → Tightening torque: 32 Nm (24 ftlb.)
- Hydraulic belt tensioner; tensioner to lever → Tightening torque: 32 Nm (24 ftlb.)
; tensioning roller to tensioning lever → Tightening torque: 32 Nm (24 ftlb.)
- Screw, M8 x 96; complete lever to timing-case cover and cylinder head → Tightening torque: 32 Nm (24 ftlb.)
; belt tensioner and timing-case cover to bracket → Tightening torque: 32 Nm (24 ftlb.)
- Deflection roller → Tightening torque: 32 Nm (24 ftlb.)
- Dual poly V-belt
