Installation Position Of Connecting Rods

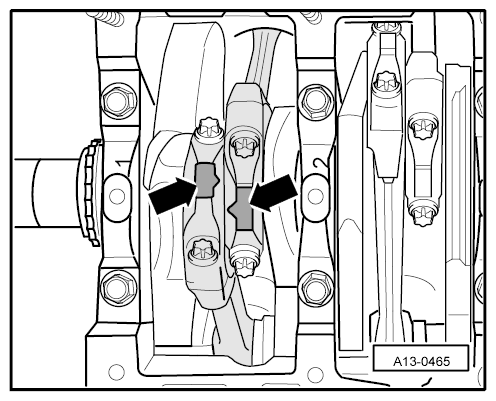

The cast lugs -arrows-  on the ground surfaces of connecting-rod pairs "1 and 2", "3 and 4" and "5 and 6" must be facing each another.

Fig 1: Locating Installation Position Of Connecting Rods
G09804301Courtesy of PORSCHE CARS NORTH AMERICA, INC.
