Instrument Cluster

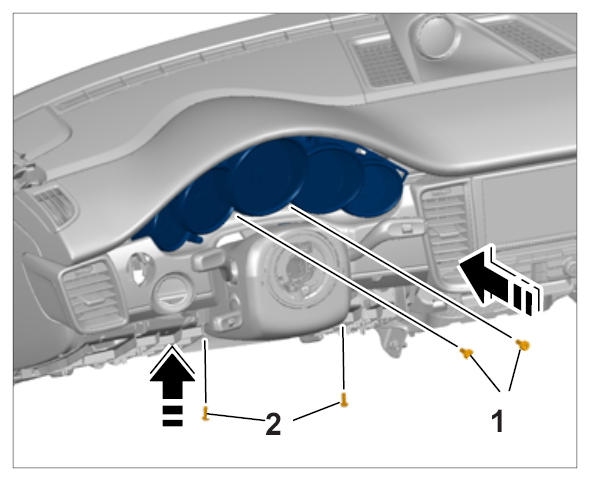

  1. Front fastening screws
  2. Bottom fastening screws
    Fig 1: Installing Fastening Screws
    G09813664Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws for instrument cluster   Tightening torque 3.2 Nm (2 ftlb.)
