Technical Values

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

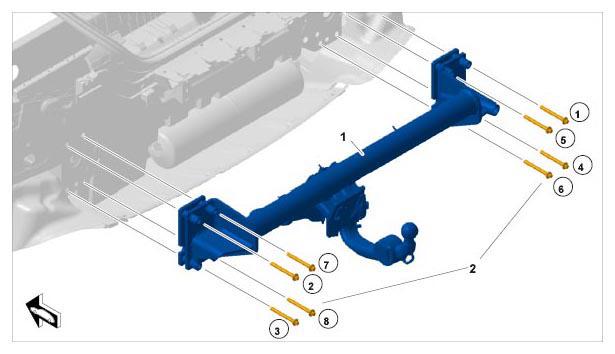

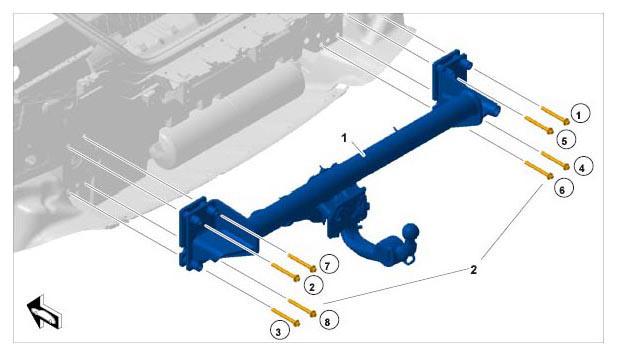

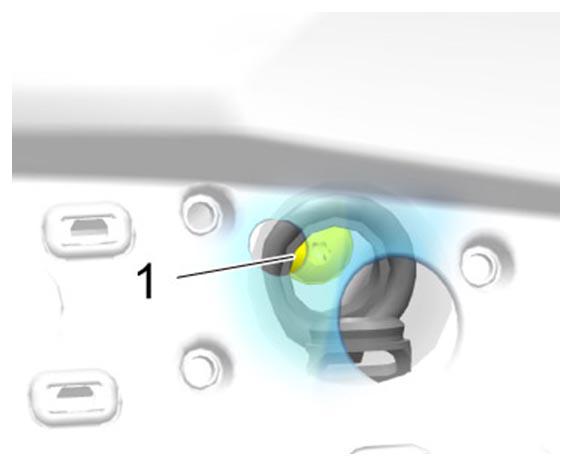

Trailer hitch to body		Tightening torque	50 Nm (37 ftlb.)
Screw-in sequence for trailer hitch fastening screws
Trailer hitch to body		Torque angle	180°
Screw-in sequence for trailer hitch fastening screws
Rear apron fastening screws		Tightening torque	2.8 Nm (2.1 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Screws on frame for light
Lateral retaining strip		Tightening torque	4.8 Nm (3.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Removing lateral retaining strip
Centre retaining strip to end plate		Tightening torque	4.8 Nm (3.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Centre retaining strip
Lower retaining strip to end plate		Tightening torque	4.8 Nm (3.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Removing lower holder

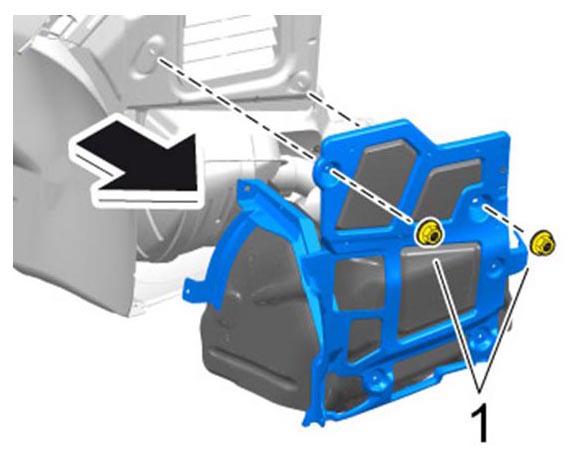

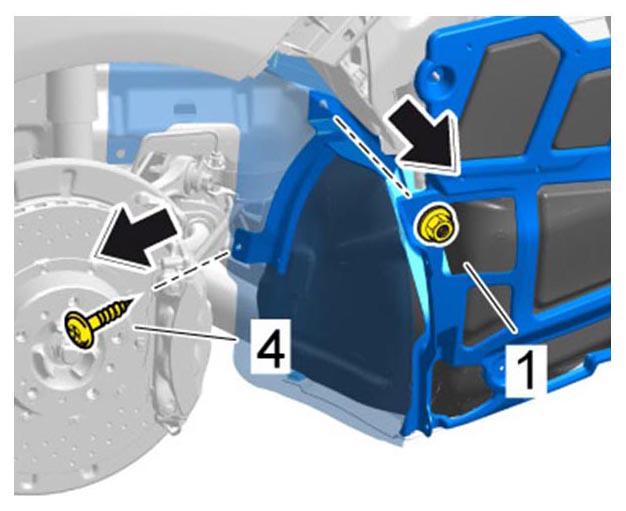

Fastening screw for holder with heat protection		Tightening torque	4.8 Nm (3.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Removing holder with heat protection

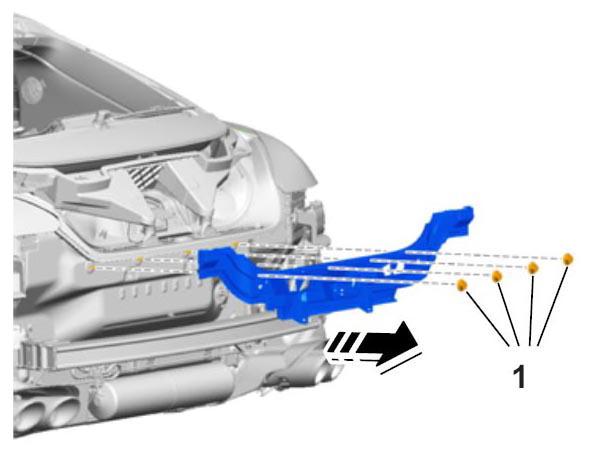

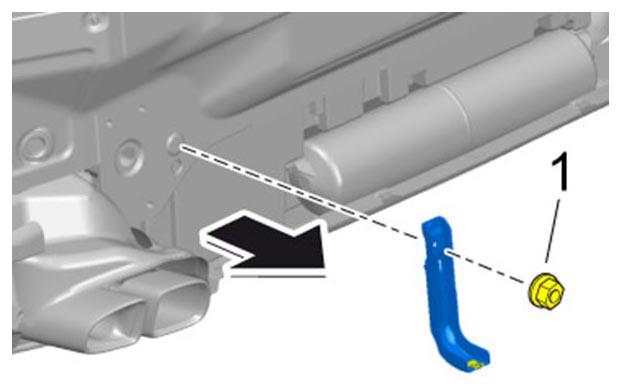

Fastening nut for holder with heat protection		Tightening torque	4.8 Nm (3.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Removing holder with heat protection

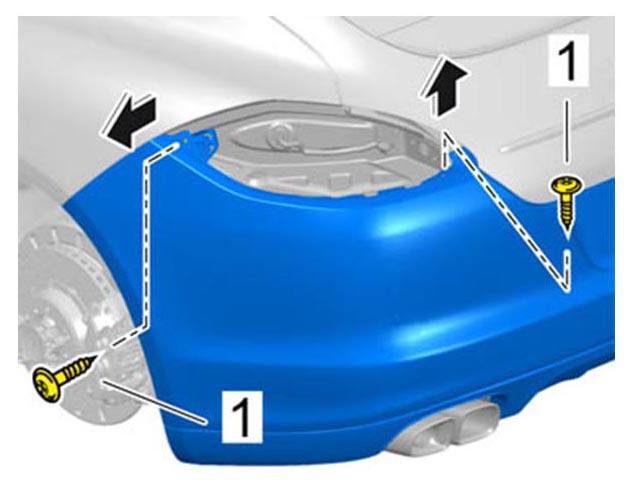

Fastening screw securing bumper to bodyshell		Tightening torque	65 Nm (48 ftlb.)	+/-6.5 Nm (+/-5 ftlb.)
Removing bumper

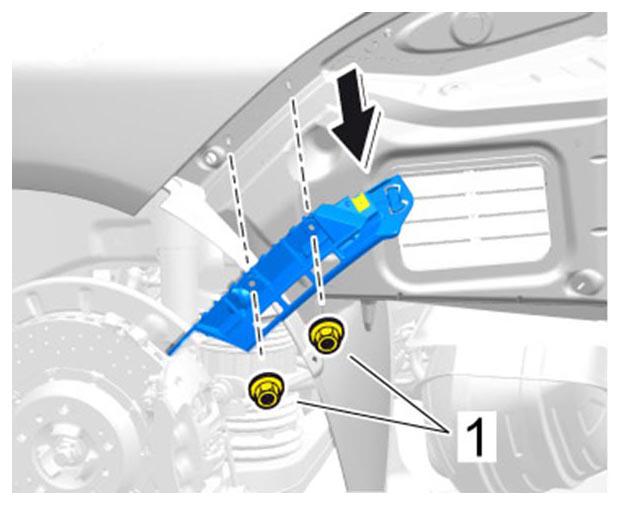

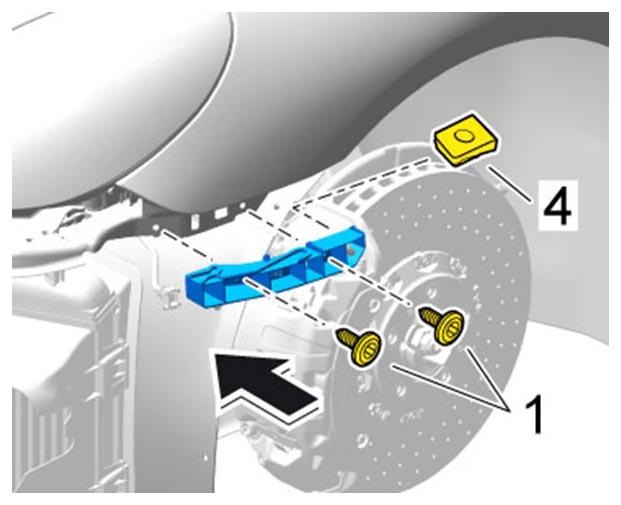

Fastening screw, retaining strip		Tightening torque	2.8 Nm (2 ftlb.)
Installing front holder

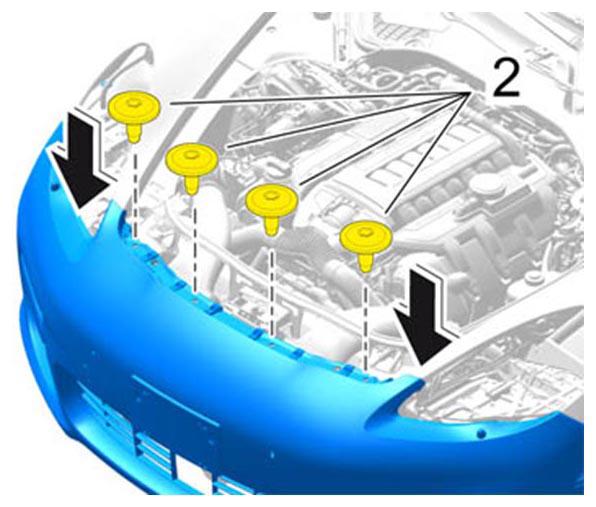

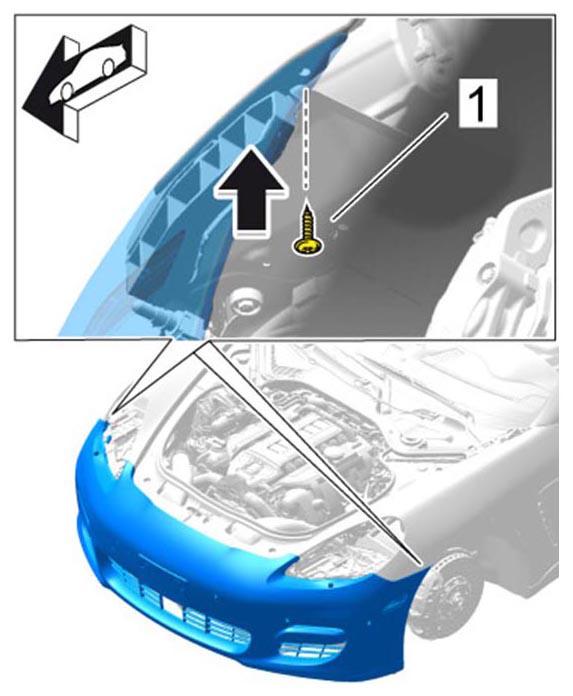

Front apron to lock carrier		Tightening torque	5 Nm	+/-0.5 Nm (+/-0.5 ftlb.)
Front screws at the top
Front apron to lateral wing		Tightening torque	2.8 Nm (2 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Wing screw

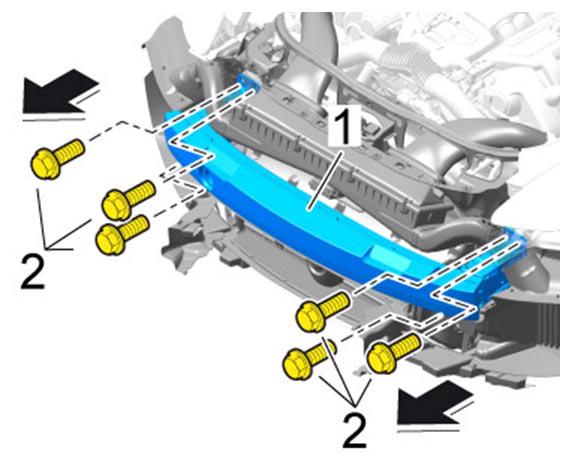

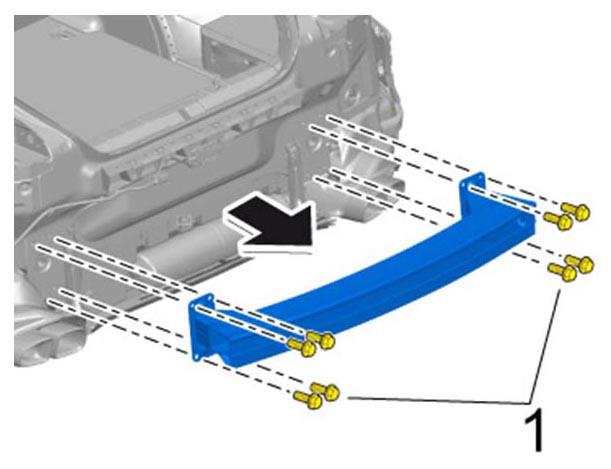

Fastening screw securing bumper to longitudinal member		Tightening torque	50 Nm (37 ftlb.)	+5 Nm (+3.5 ftlb.)	-7.5 Nm (-5.5 ftlb.)
Bumper mounting

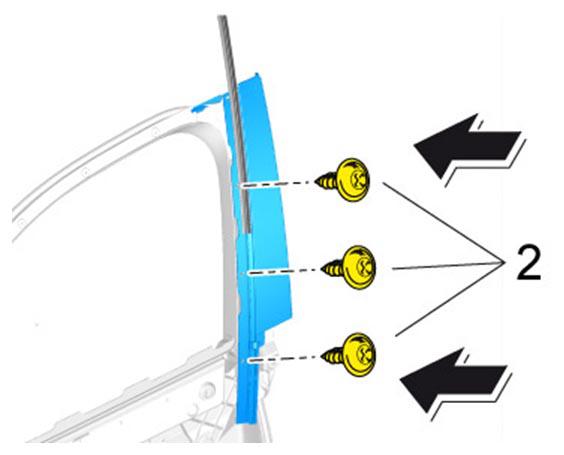

B-pillar cover to door sub-frame		Tightening torque	3.5 Nm	+10°
Securing B-pillar cover
Fastening screw for rear-view mirror	Item 1	Tightening torque	23 Nm (17 ftlb.)
Removing rear-view mirror

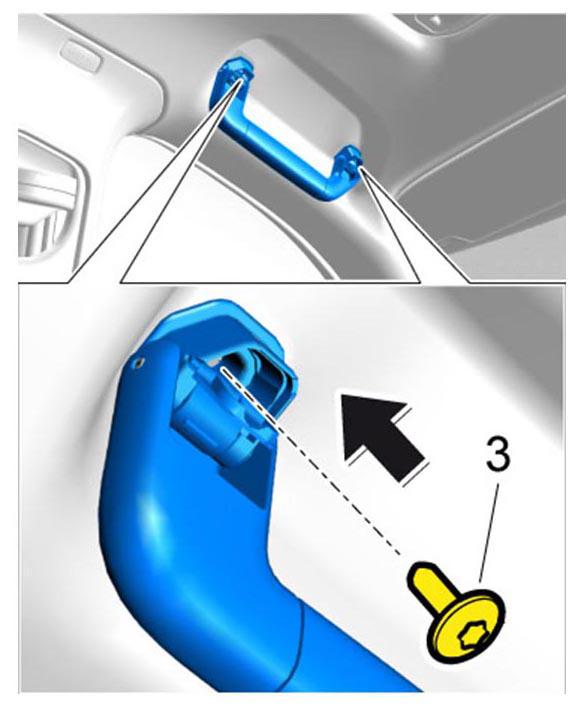

Fastening screw for front grab handle	Item 3	Tightening torque	5.5 Nm (4 ftlb.)
Securing front grab handle
Fastening screw for rear grab handle	Item 3	Tightening torque	5.5 Nm (4 ftlb.)
Securing front grab handle

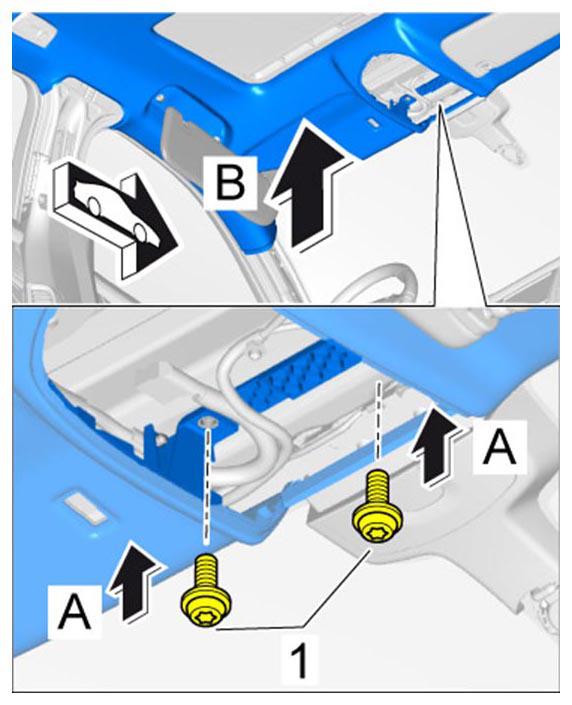

Fastening screw for headliner	Item 1	Tightening torque	5.5 Nm (4 ftlb.)
Securing headliner

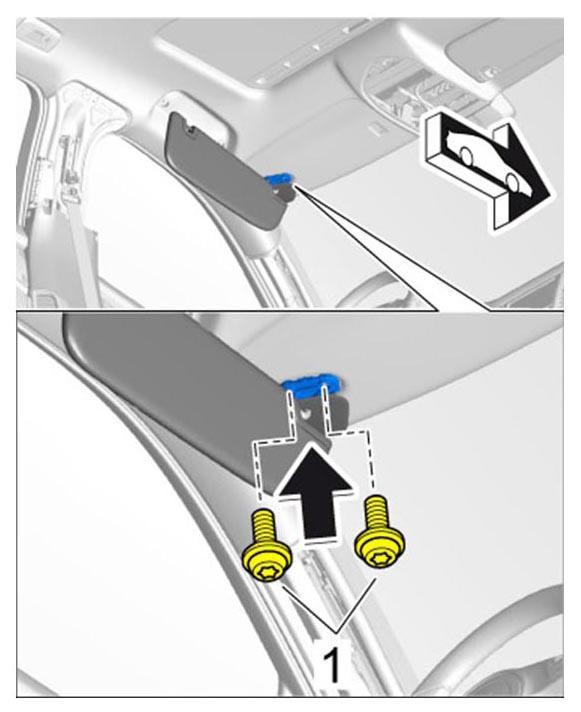

Fastening screw for sun visor	Item 1	Tightening torque	5.5 Nm (4 ftlb.)
Securing sun visor

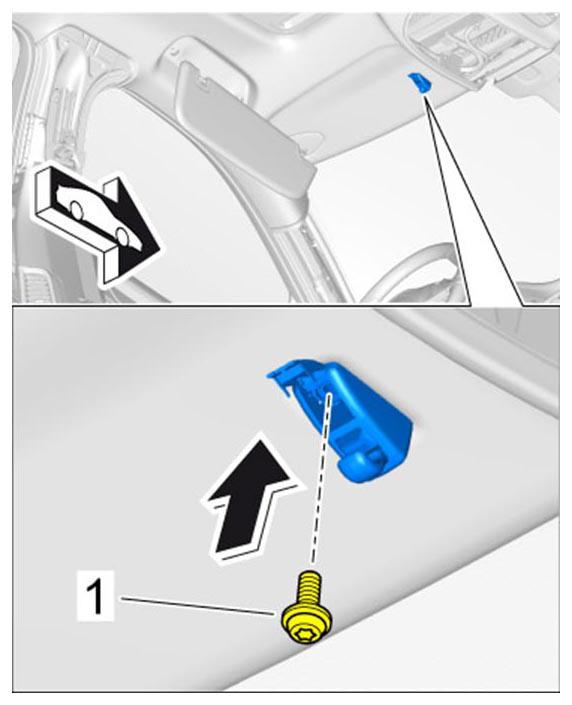

Fastening screw for sun visor	Item 1	Tightening torque	5.5 Nm (4 ftlb.)
Installing holder
Fastening screws for sliding roof at front	Observe tightening sequence	Tightening torque	9.7 Nm
Securing sliding roof at the front

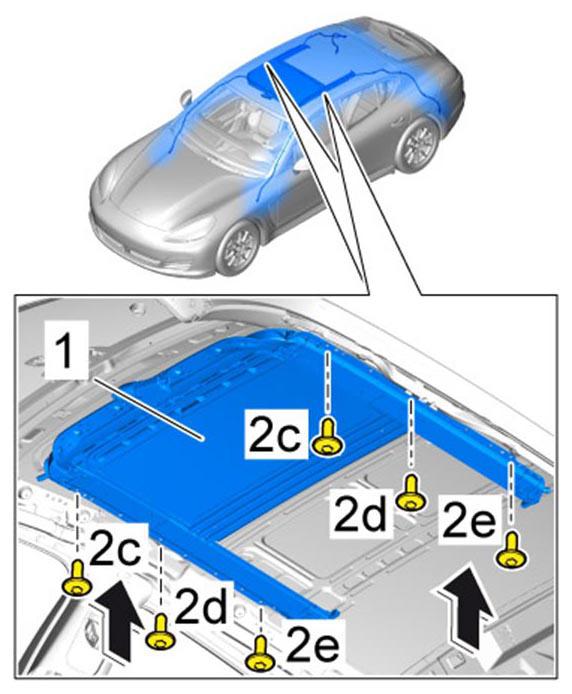

Fastening screws for sliding roof at the sides	Observe tightening sequence	Tightening torque	9.7 Nm
Securing sliding roof at the sides

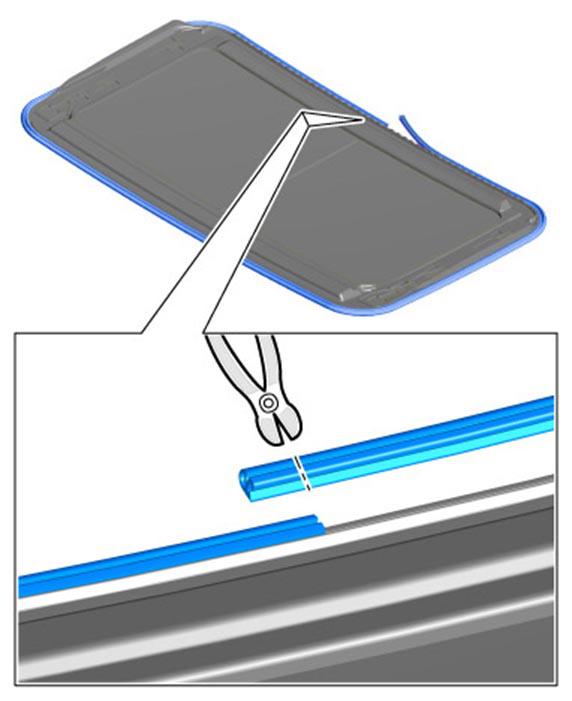

Overlength seal		Length	2 mm	+1 mm
Rear cut		Length	approx. 1 mm
Trimming the seal

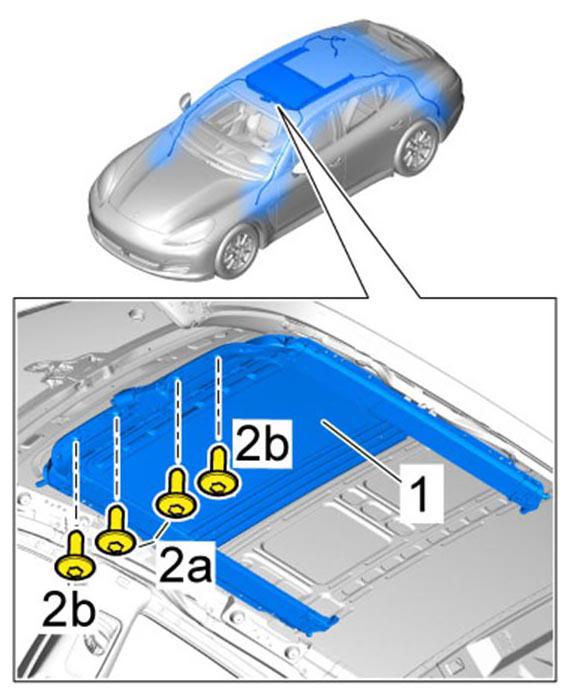

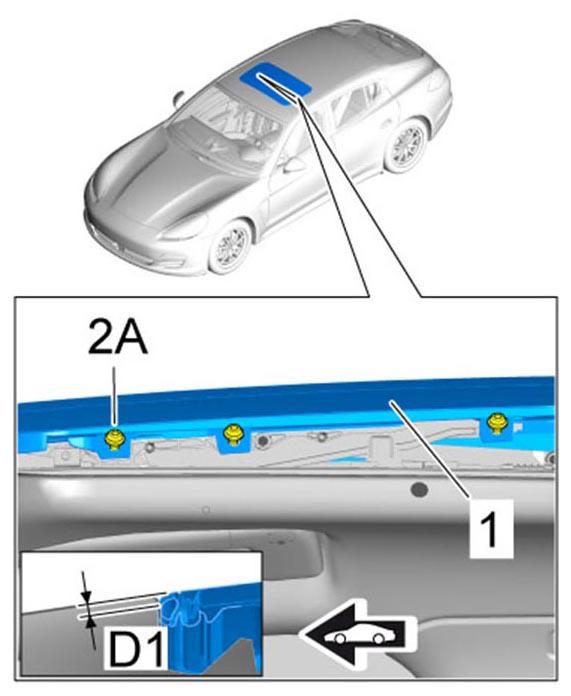

Fastening screw securing sliding roof panel to sliding roof trim surround	Item 2A	Tightening torque	4.5 Nm	+/-0.5 Nm (+/-0.5 ftlb.)
Adjusting height at the front

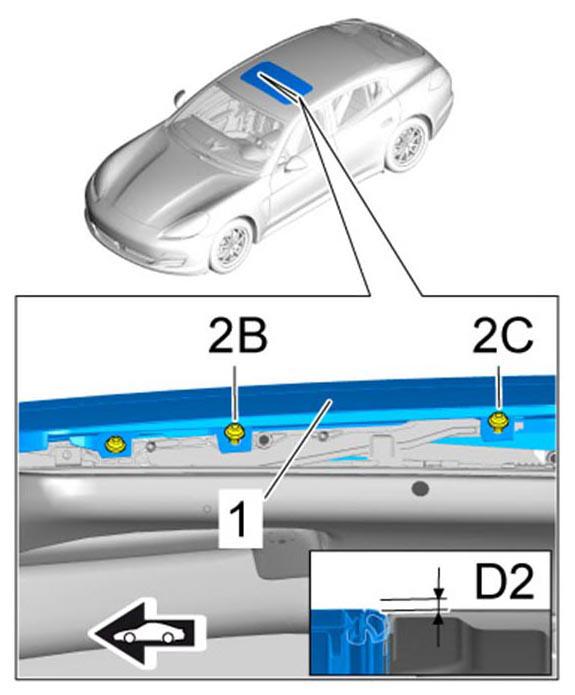

Fastening screw securing sliding roof panel to sliding roof trim surround	Item 2B, 2C	Tightening torque	4.5 Nm	+/-0.5 Nm (+/-0.5 ftlb.)
Adjusting height at the rear
Fastening screw securing lower part of center console cover		Tightening torque	2.5 Nm	+/-0.5 Nm (+/-0.5 ftlb.)
Securing cover

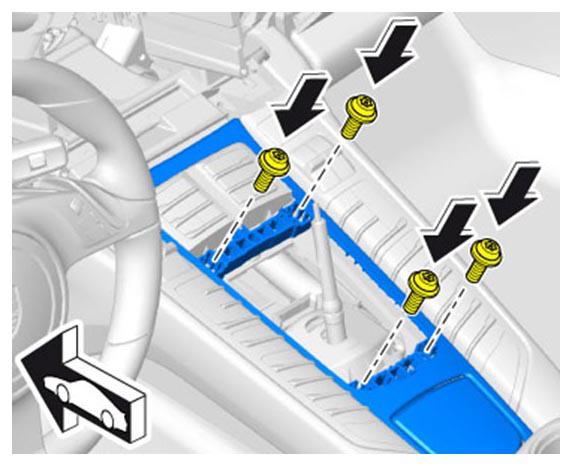

Fastening screw at top of center console		Tightening torque	3.2 Nm (2 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Securing center console at the top

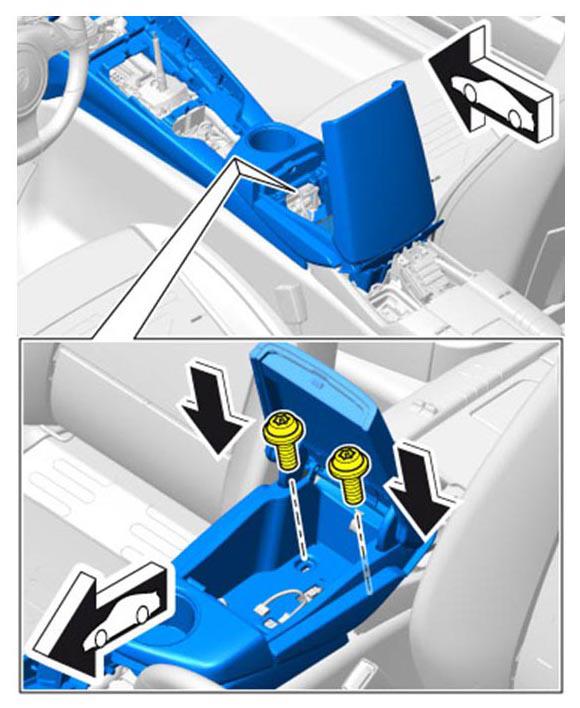

Centre console fastening screws in package box		Tightening torque	3.2 Nm (2 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Securing center console
Fastening screw for front ashtray		Tightening torque	2.5 Nm	+/-0.5 Nm (+/-0.5 ftlb.)

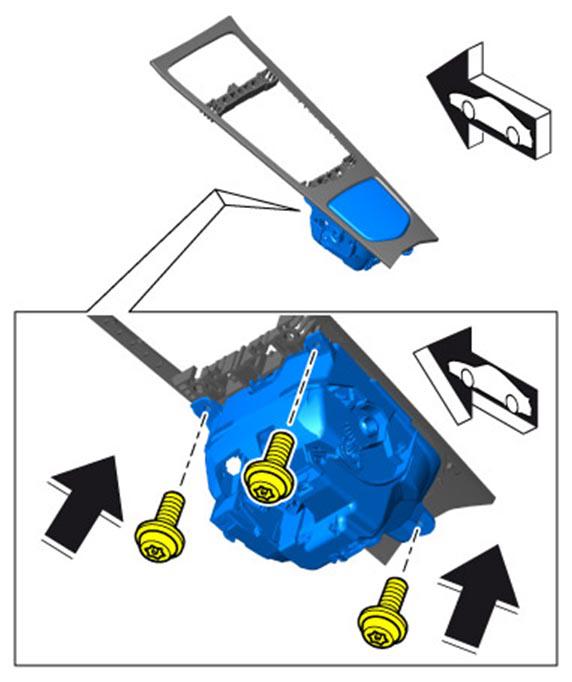

Securing front ashtray

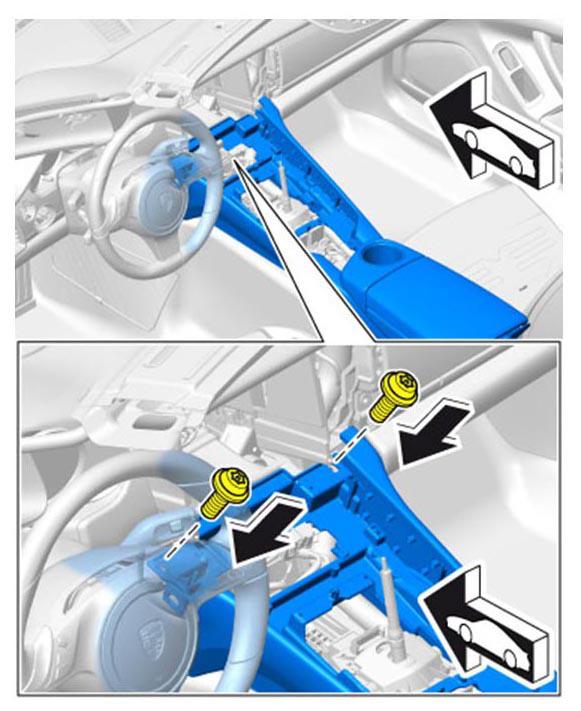

Front fastening screw securing center console to center tunnel	Torx screw	Tightening torque	3.2 Nm (2 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Front screws
Rear fastening screw securing center console to center tunnel	Torx screw	Tightening torque	3.2 Nm (2 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Installing center console

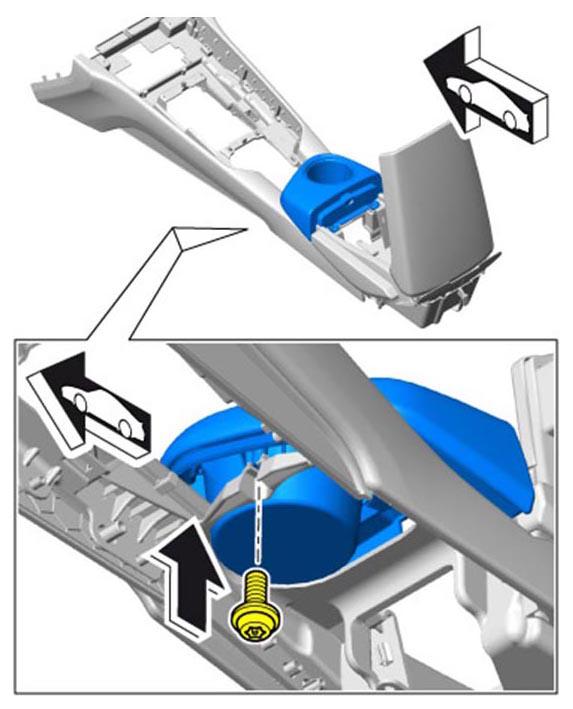

Fastening screws for cover extension in storage compartment		Tightening torque	2.5 Nm	+/-0.5 Nm (+/-0.5 ftlb.)
Securing extension for cover in storage compartment
Lower fastening screw for cover extension in storage compartment		Tightening torque	2.5 Nm	+/-0.5 Nm (+/-0.5 ftlb.)
Securing extension for cover in storage compartment

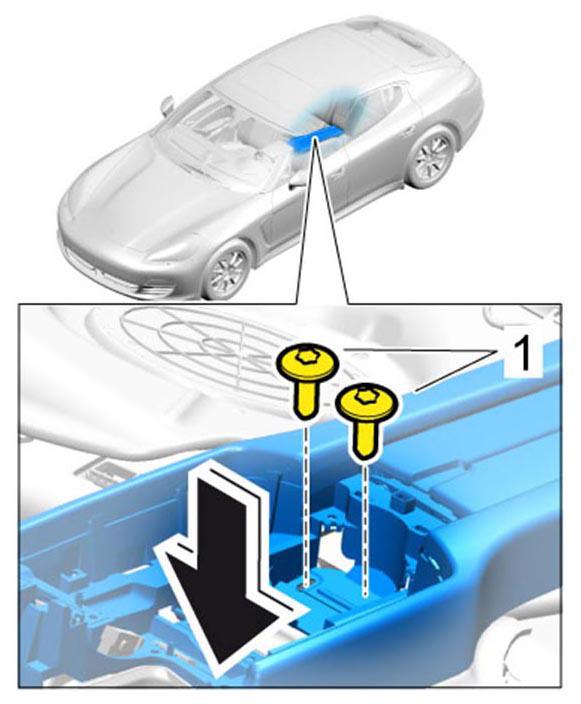

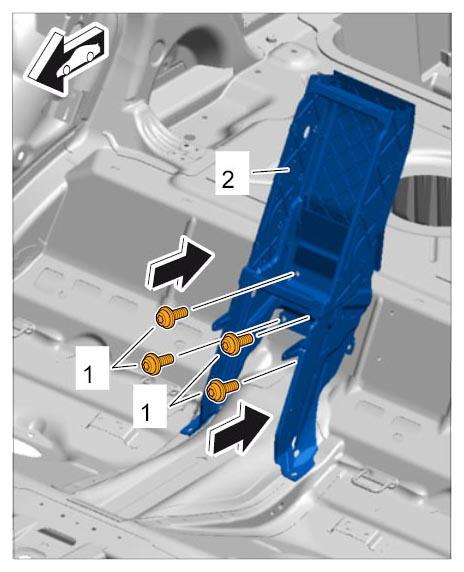

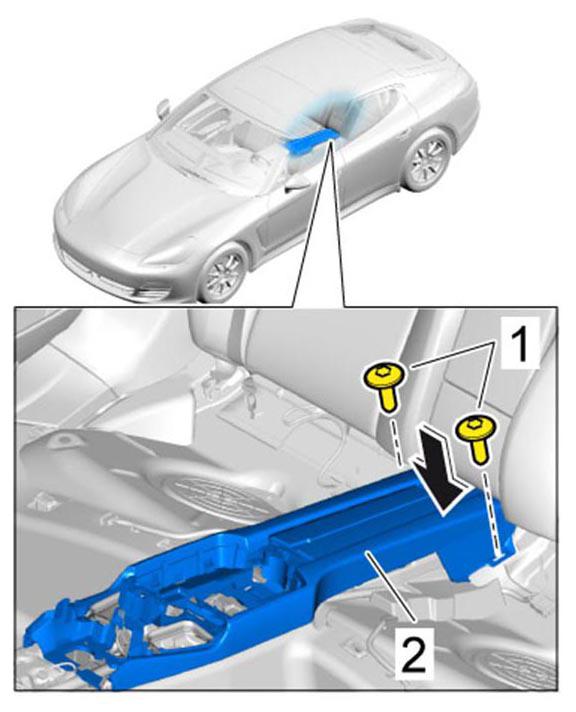

Fastening screws, rear		Tightening torque	27 Nm

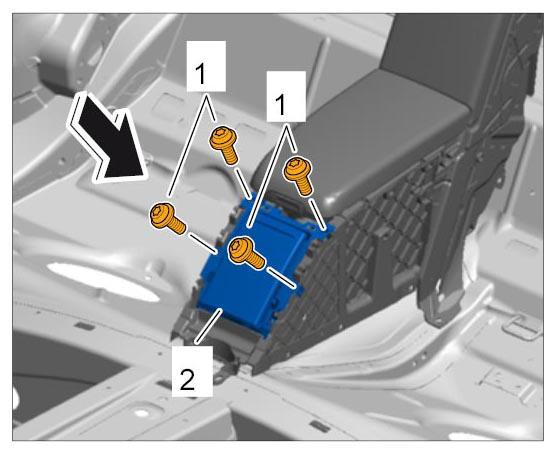

Installing rear center console (Business)

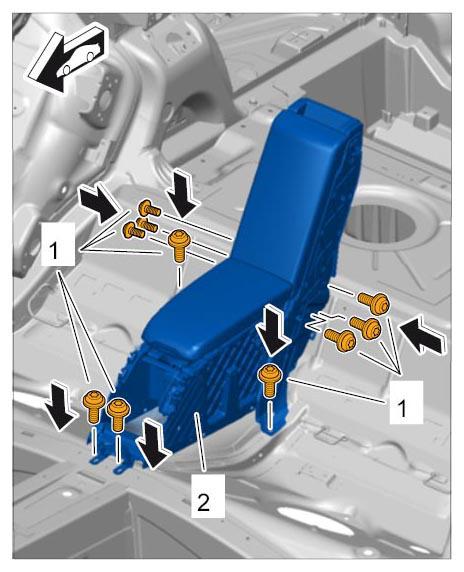

Fastening screw, front and bottom		Tightening torque	3.2 Nm (2 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Screwing in fastening screws at the front, bottom and sides
Fastening screws securing damper to package box cover		Tightening torque	3.2 Nm (2 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Securing damper
Fastening screws securing bracket to center console		Tightening torque	2.5 Nm	+/-0.5 Nm (+/-0.5 ftlb.)

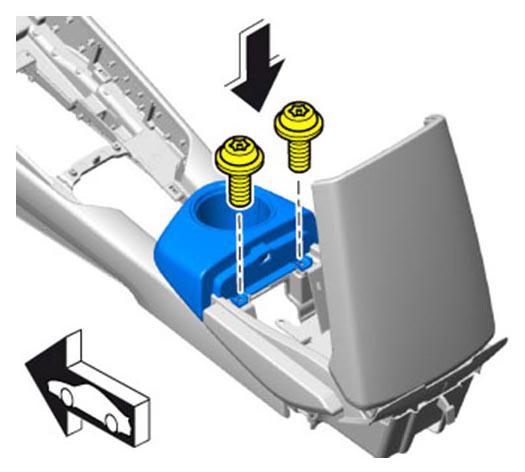

Rear cupholder (Business) to center console		Tightening torque	1.5 Nm (1 ftlb.)	+0.2 Nm (+0.1 ftlb.)	-0.4 Nm (-0.2 ftlb.)
Screwing in fastening screws

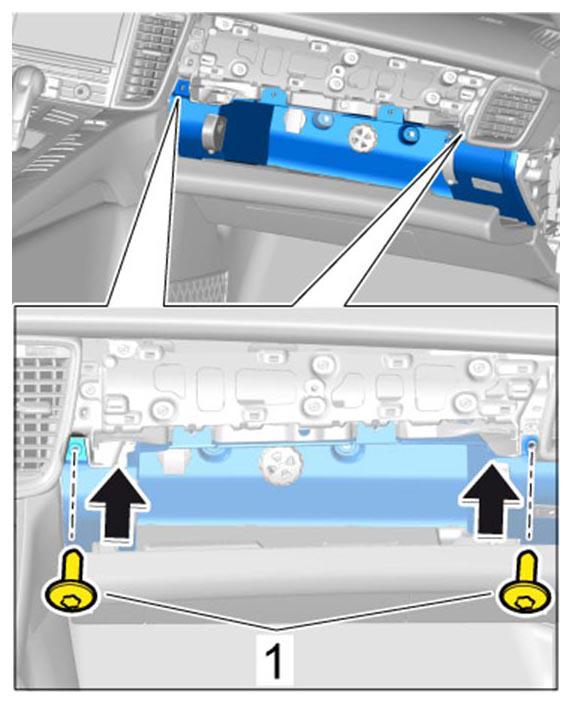

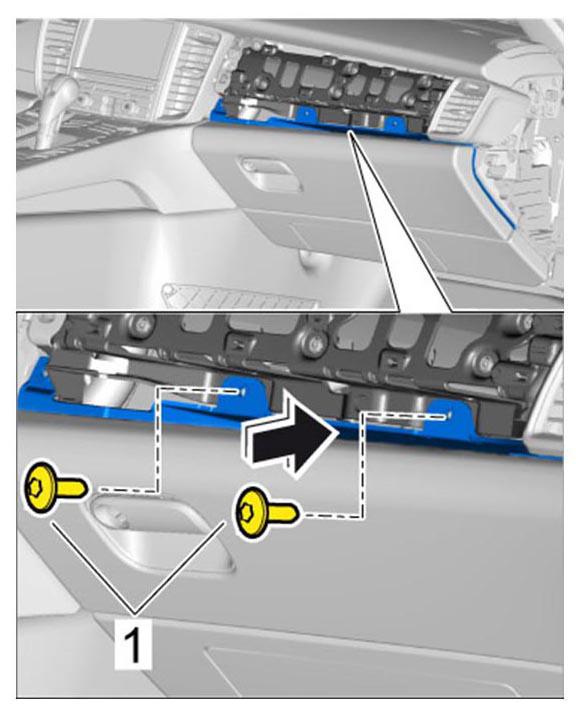

Fastening screws for glove compartment, inner/outer		Tightening torque	3.2 Nm (2 ftlb.)
Securing glove compartment at the top (inner)

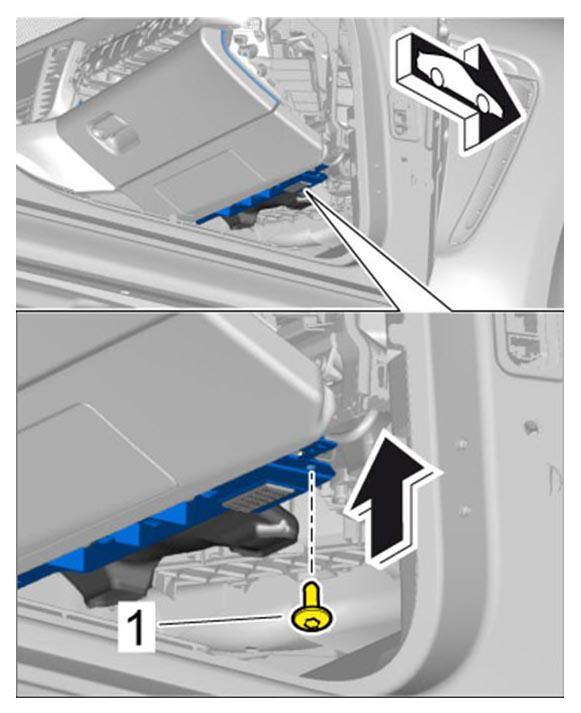

Inner fastening screws for glove compartment		Tightening torque	3.2 Nm (2 ftlb.)
Securing glove compartment on the inside

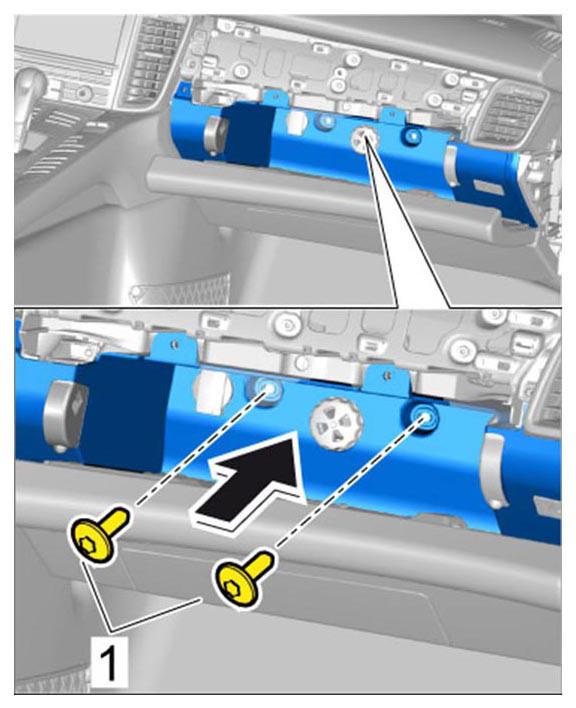

Fastening screws for glove compartment, top		Tightening torque	3.2 Nm (2 ftlb.)
Securing glove compartment at the top

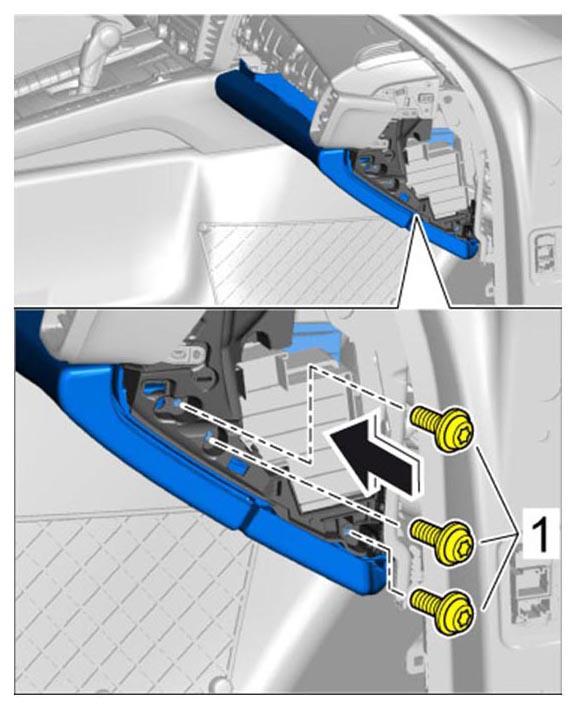

Fastening screws for glove compartment, lateral		Tightening torque	3.2 Nm (2 ftlb.)
Securing glove compartment at the sides

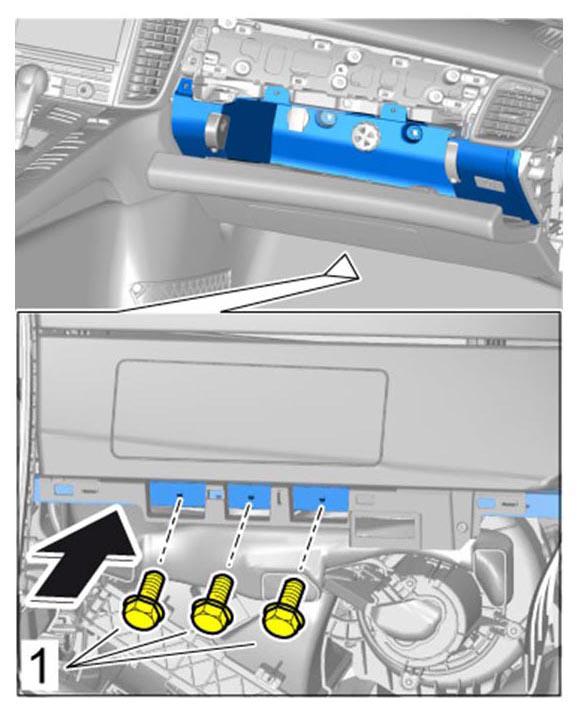

Fastening screws for knee airbag strut		Tightening torque	8 Nm	+/-0.8 Nm (+/-0.5 ftlb.)
Securing strut for knee airbag
Fastening screws for ventilation duct		Tightening torque	3.2 Nm
Securing ventilation duct

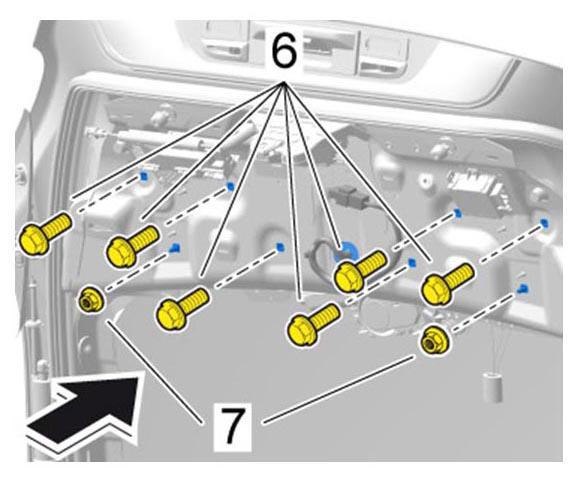

Fastening nuts for spoiler drive	Item 7	Tightening torque	9 Nm
Securing spoiler drive

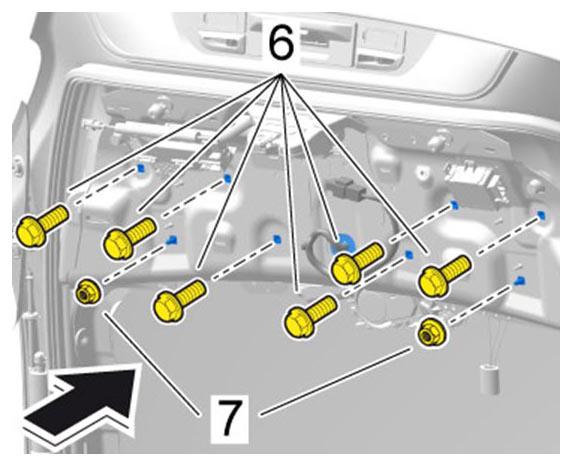

Fastening screws for spoiler drive	Item 6	Tightening torque	9 Nm
Securing spoiler drive

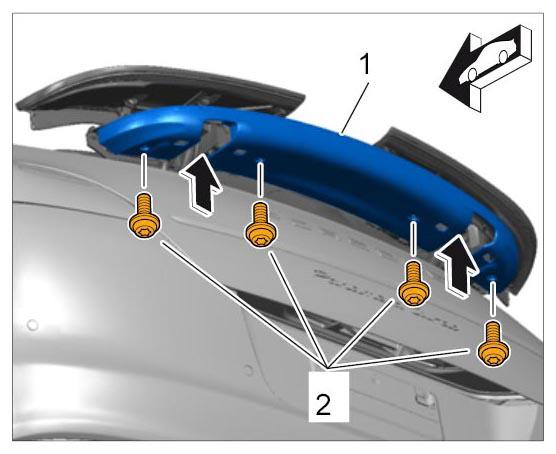

Fastening screw securing lower part of rear spoiler to spoiler drive		Tightening torque	4.5 Nm (3 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Loosening lower part of rear spoiler

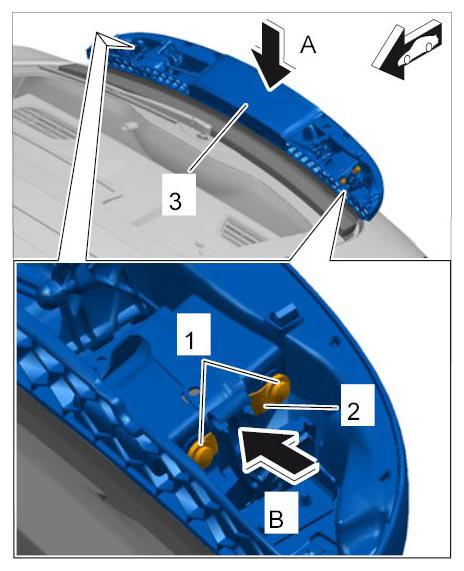

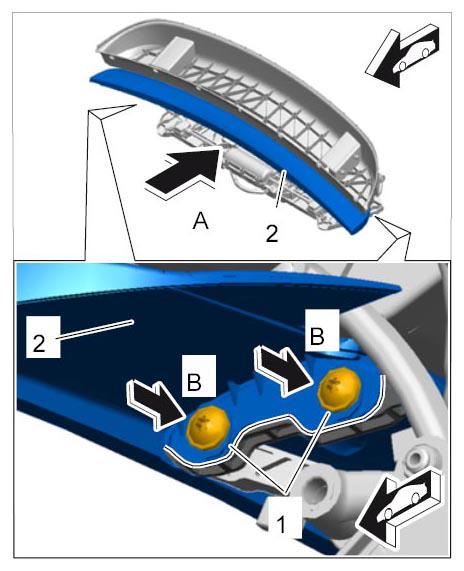

Fastening screw securing closing element of rear spoiler to spoiler drive	Item (B)	Tightening torque	4.5 Nm (3 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Installing closing element of rear spoiler
Fastening screw securing spoiler drive (wing) to spoiler drive	Item 1	Tightening torque	4.5 Nm (3 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Installing spoiler drive (flap)
Fastening screw securing lower part of rear spoiler to spoiler drive		Tightening torque	4.5 Nm (3 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Installing lower part of rear spoiler

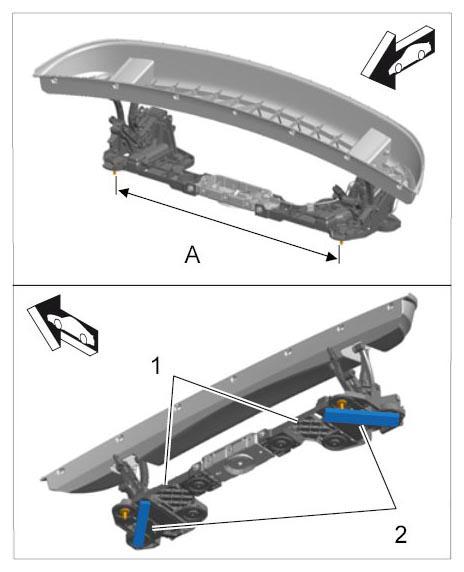

Gap from bolt to bolt (inner side)	Dimension A	Adjustment value	556 mm
Laying spoiler drive onto special tool

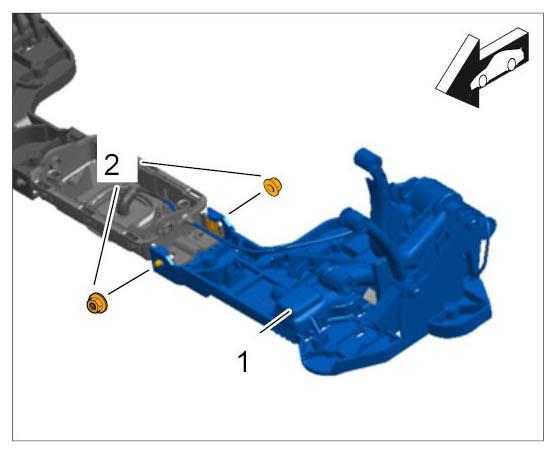

Fastening nut securing spoiler drive to engine housing		Tightening torque	1 Nm (0.5 ftlb.)
Screwing off spoiler drive nuts

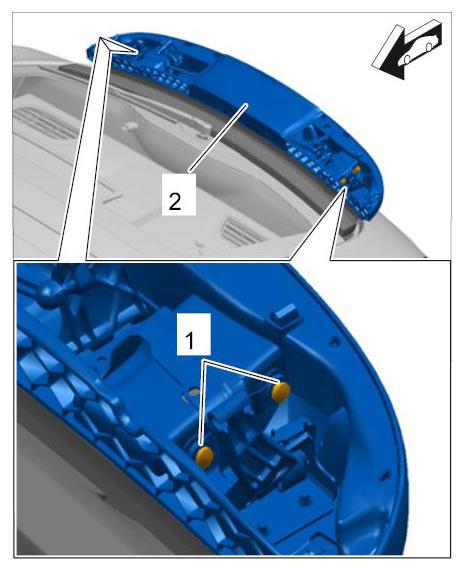

Fastening screw securing closing element of rear spoiler to spoiler drive		Tightening torque	4.5 Nm (3 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Installing closing element of rear spoiler

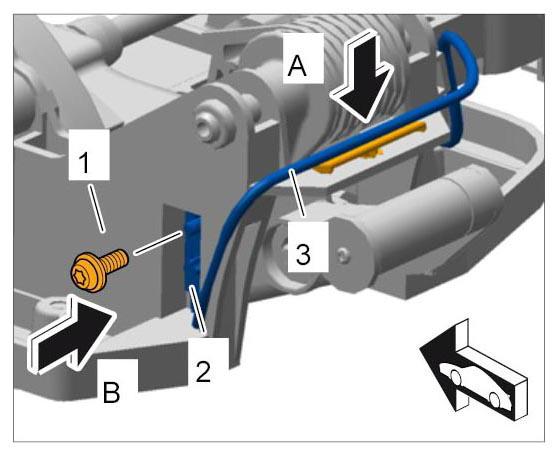

Fastening screw for securing rear spoiler microswitch to spoiler drive		Tightening torque	1 Nm (0.5 ftlb.)
Installing wire harness for rear spoiler

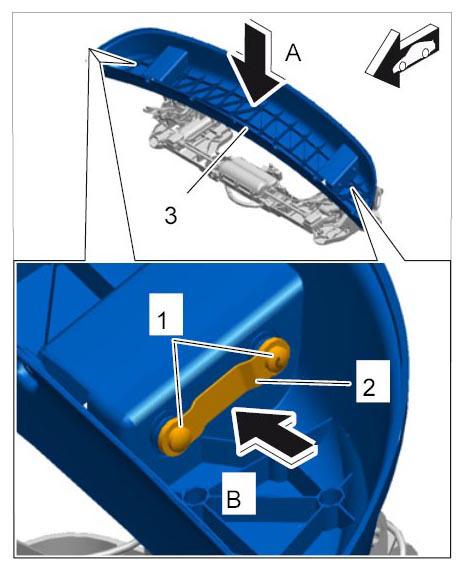

Fastening screw securing cover on lower part of rear spoiler to spoiler drive		Tightening torque	4.5 Nm (3 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Securing cover on lower part of rear spoiler

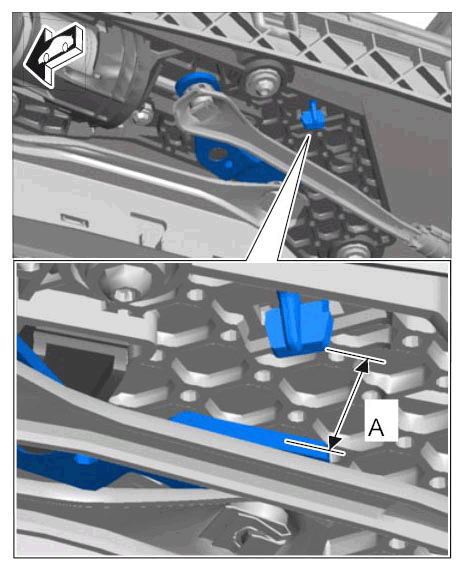

Distance from reversing lever to limit stop		Distance	20 mm
Moving motor for spoiler drive into adjustment position

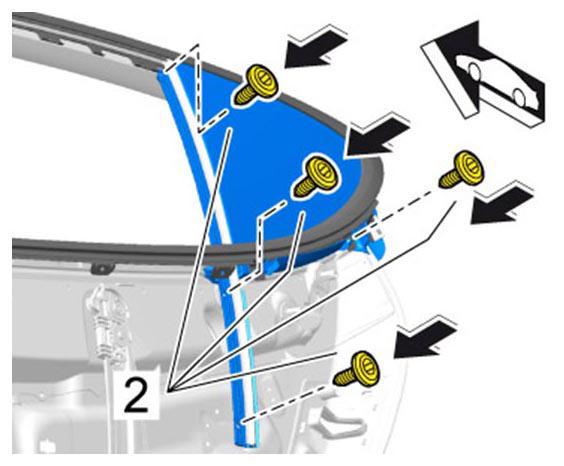

Fastening screw for side window	Item 2	Tightening torque	3.5 Nm	+10°
Securing side window

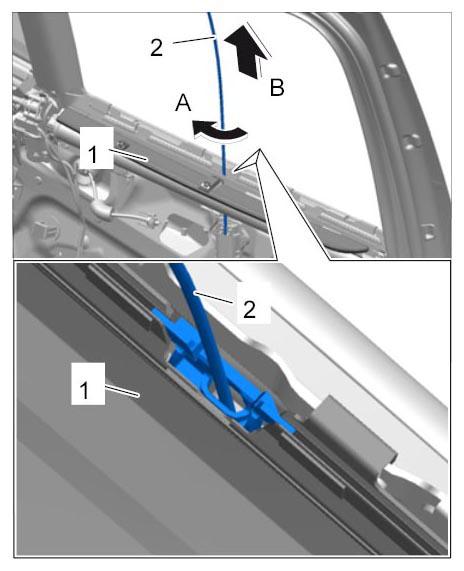

Actuating bar for sun blind on door window		Torque angle	45°
Removing actuating bar for sun blind on door window
Fastening screws securing passenger's airbag unit to dashboard	4	Tightening torque	8 Nm (6 ftlb.)
Fastening screws securing passenger's airbag unit to retaining frame	5	Tightening torque	8 Nm (6 ftlb.)
Fastening screws securing bracket for trim to dashboard	2	Tightening torque	3.2 Nm (2 ftlb.)
Fastening screws securing support to dashboard	2	Tightening torque	8 Nm (6 ftlb.)
Fastening nuts for triggering unit	-1-	Tightening torque	9 Nm (6.5 ftlb.)	+10 %	-15 %
Fastening screw securing rear side airbag to catch bar	-1-	Tightening torque	10 Nm (7.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Upper threaded joint securing driver's knee airbag to trim panel	Torx screw -1-	Tightening torque	3.2 Nm (2.5 ftlb.)
Driver's knee airbag to trim panel	Torx screw -1-	Tightening torque	1.4 Nm (1 ftlb.)
Screws securing knee airbag on passenger's side to glove compartment	-1-	Tightening torque	1.4 Nm (1 ftlb.)
Upper screws securing knee airbag on passenger's side to glove compartment	-1-	Tightening torque	3.2 Nm (2 ftlb.)
Fastening screw for head airbag	-1-	Tightening torque	2.7 Nm (2 ftlb.)
Fastening nut for head airbag	-2, 3-	Tightening torque	9.7 Nm (7.5 ftlb.)
Fastening screw for head airbag	-4, 5, 6, 7-	Tightening torque	2.7 Nm (2 ftlb.)
Fastening screw for head airbag	-8, 9, 10, 11-	Tightening torque	2.7 Nm (2 ftlb.)

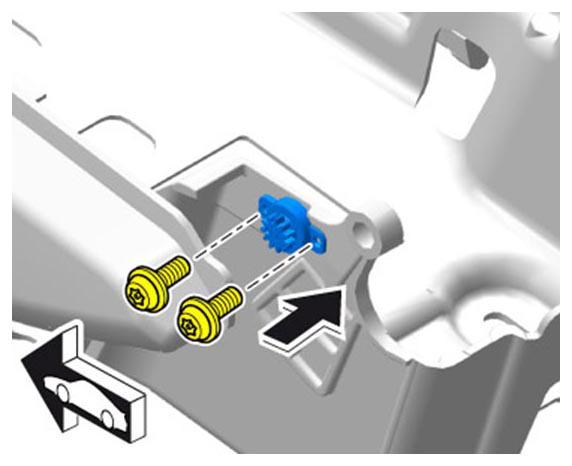

Fastening nut securing airbag sensor to lock carrier		Tightening torque	9 Nm (6.5 ftlb.)	+1 Nm (+0.5 ftlb.)	-1.5 Nm (-1 ftlb.)
Fastening nut securing airbag sensor to inner side member		Tightening torque	9 Nm (6.5 ftlb.)	+1 Nm (+0.5 ftlb.)	-1.5 Nm (-1 ftlb.)
Fastening nut securing airbag sensor to rear wheel arch		Tightening torque	9 Nm (6.5 ftlb.)	+1 Nm (+0.5 ftlb.)	-1.5 Nm (-1 ftlb.)
Front side airbag to seat frame		Tightening torque	7 Nm (5 ftlb.)
