TV Trailer Hitch

Location Description Type Basic value Tolerance 1 Tolerance 2
Trailer hitch to body   Tightening torque 50 Nm (37 ftlb.)

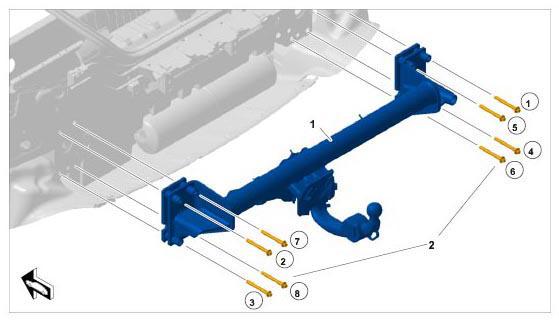

G09810689

Screw-in sequence for trailer hitch fastening screws
Trailer hitch to body   Torque angle 180°

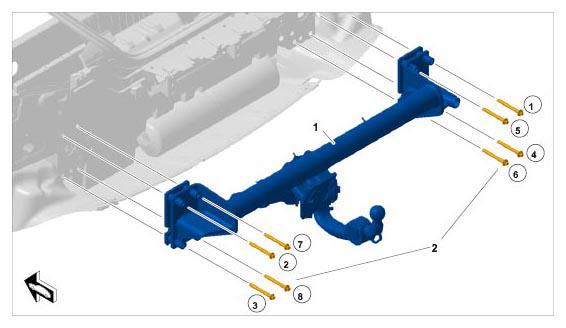

G09810690

Screw-in sequence for trailer hitch fastening screws
