TV Sliding Roof
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

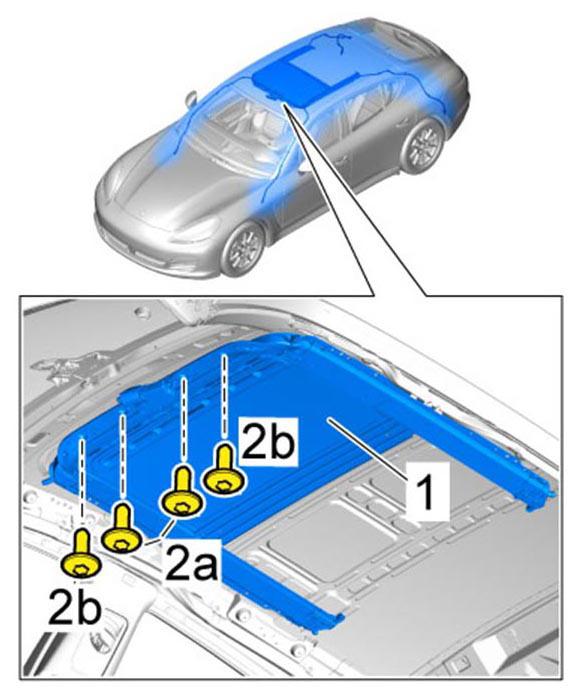

| Fastening screws for sliding roof at front | Observe tightening sequence | Tightening torque | 9.7 Nm | ||
|
Securing sliding roof at the front |
|||||

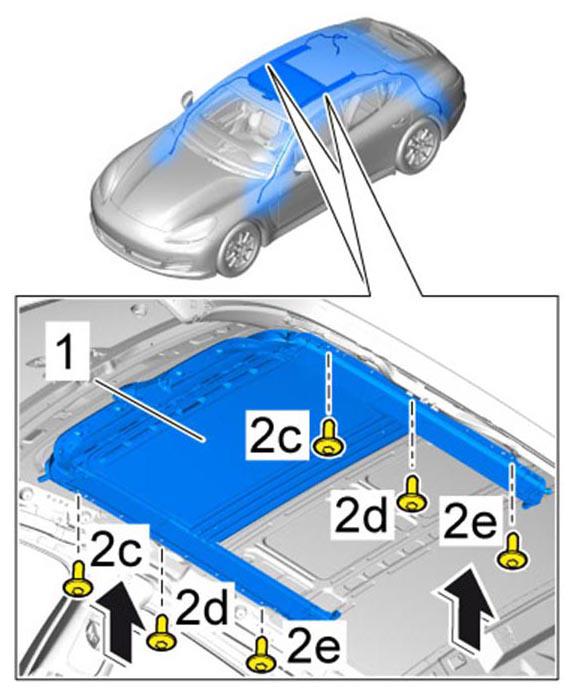

| Fastening screws for sliding roof at the sides | Observe tightening sequence | Tightening torque | 9.7 Nm | ||
|
Securing sliding roof at the sides |
|||||

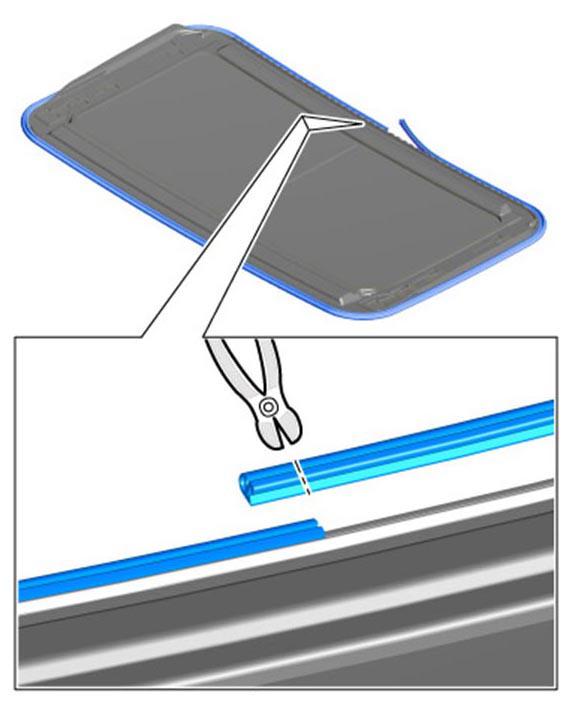

| Overlength seal | Length | 2 mm | +1 mm | ||
| Rear cut | Length | approx. 1 mm | |||
|
Trimming the seal |
|||||

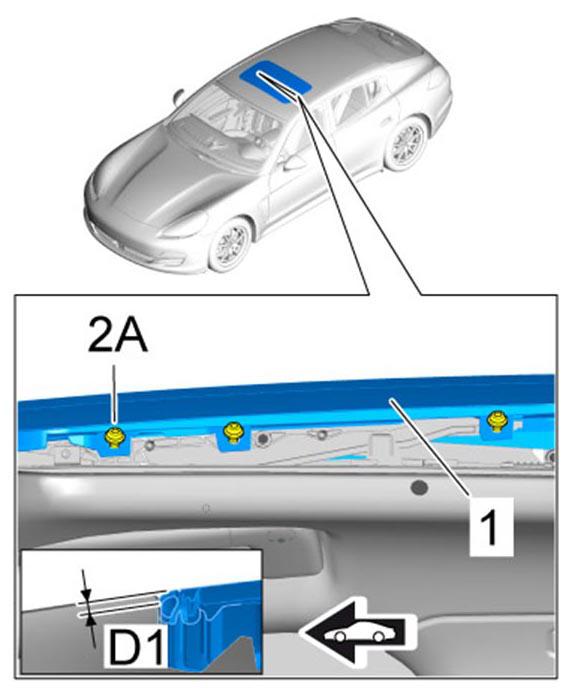

| Fastening screw securing sliding roof panel to sliding roof trim surround | Item 2A | Tightening torque | 4.5 Nm | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Adjusting height at the front |
|||||

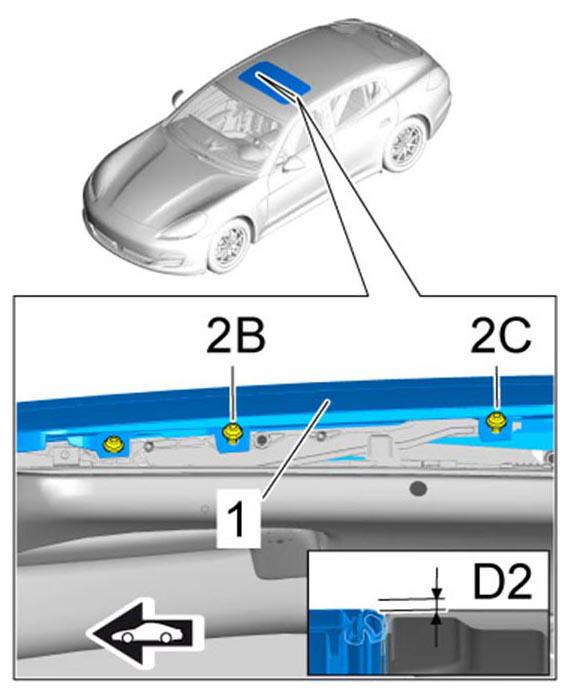

| Fastening screw securing sliding roof panel to sliding roof trim surround | Item 2B, 2C | Tightening torque | 4.5 Nm | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Adjusting height at the rear |
|||||
