TV Rear Spoiler
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

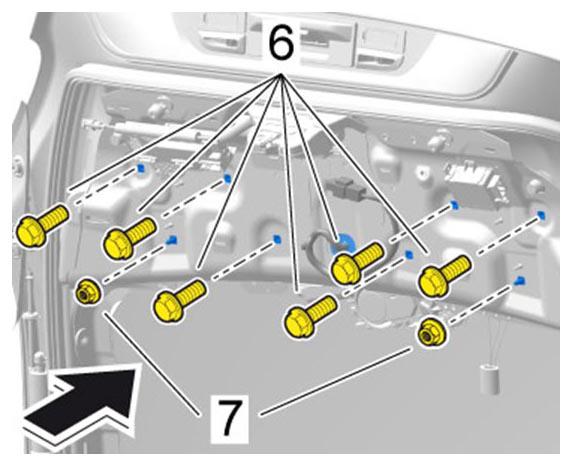

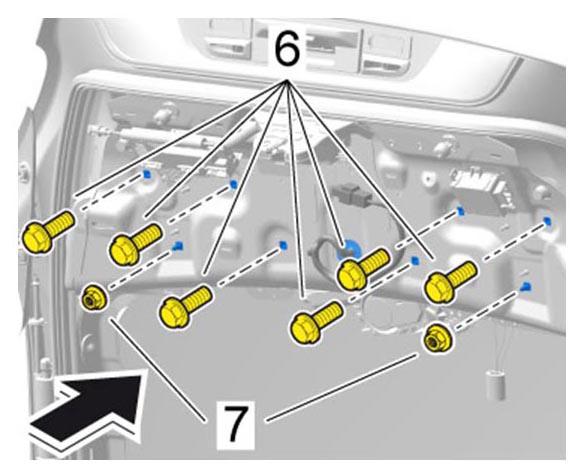

| Fastening nuts for spoiler drive | Item 7 | Tightening torque | 9 Nm | ||
|
Securing spoiler drive |
|||||
| Fastening screws for spoiler drive | Item 6 | Tightening torque | 9 Nm | ||
|
Securing spoiler drive |
|||||

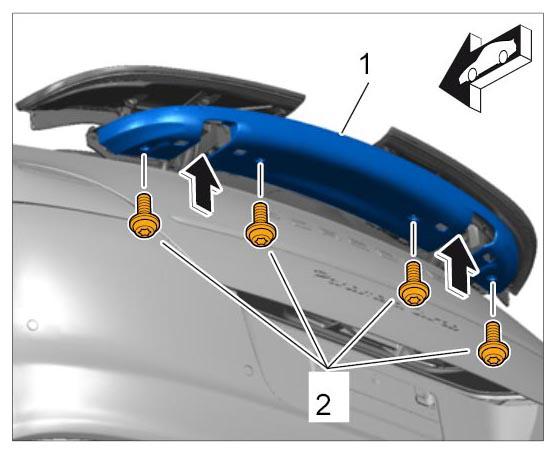

| Fastening screw securing lower part of rear spoiler to spoiler drive | Tightening torque | 4.5 Nm (3 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | ||
|
Loosening lower part of rear spoiler |
|||||

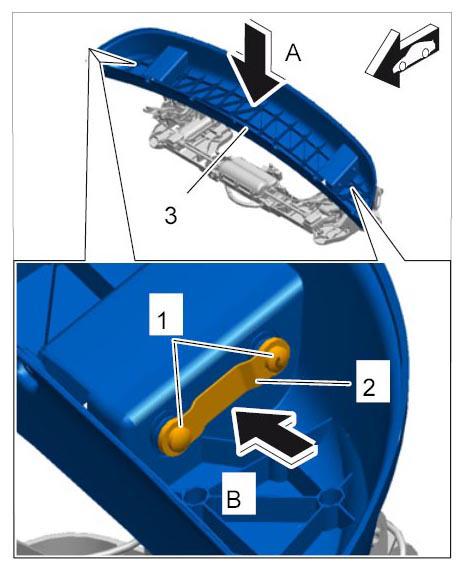

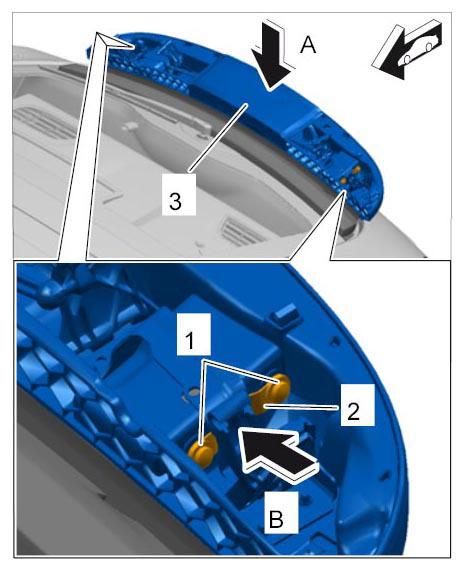

| Fastening screw securing closing element of rear spoiler to spoiler drive | Item (B) | Tightening torque | 4.5 Nm (3 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Installing closing element of rear spoiler |
|||||

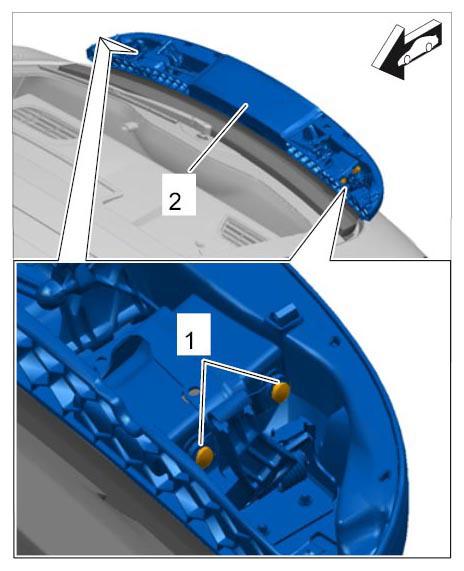

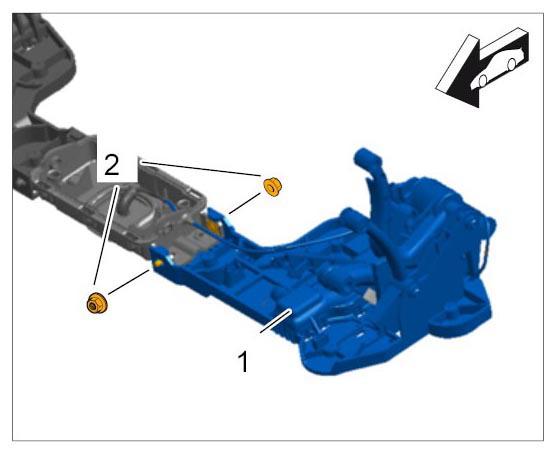

| Fastening screw securing spoiler drive (wing) to spoiler drive | Item 1 | Tightening torque | 4.5 Nm (3 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Installing spoiler drive (flap) |
|||||
| Fastening screw securing lower part of rear spoiler to spoiler drive | Tightening torque | 4.5 Nm (3 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | ||
|
Installing lower part of rear spoiler |
|||||

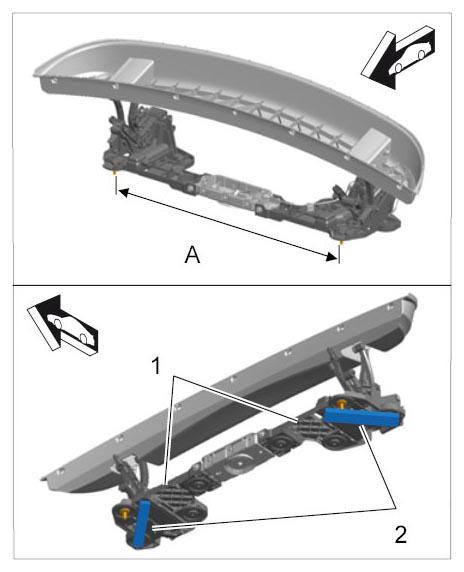

| Gap from bolt to bolt (inner side) | Dimension A | Adjustment value | 556 mm | ||
|
Laying spoiler drive onto special tool |
|||||
| Fastening nut securing spoiler drive to engine housing | Tightening torque | 1 Nm (0.5 ftlb.) | |||
|
Screwing off spoiler drive nuts |
|||||

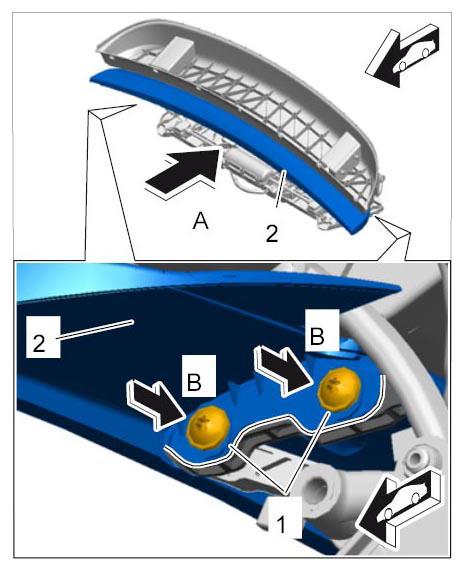

| Fastening screw securing closing element of rear spoiler to spoiler drive | Tightening torque | 4.5 Nm (3 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | ||
|
Installing closing element of rear spoiler |
|||||

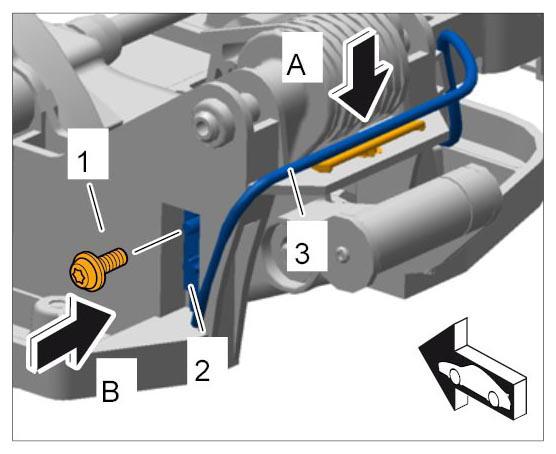

| Fastening screw for securing rear spoiler microswitch to spoiler drive | Tightening torque | 1 Nm (0.5 ftlb.) | |||
|
Installing wire harness for rear spoiler |
|||||
| Fastening screw securing cover on lower part of rear spoiler to spoiler drive | Tightening torque | 4.5 Nm (3 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | ||
|
Securing cover on lower part of rear spoiler |
|||||

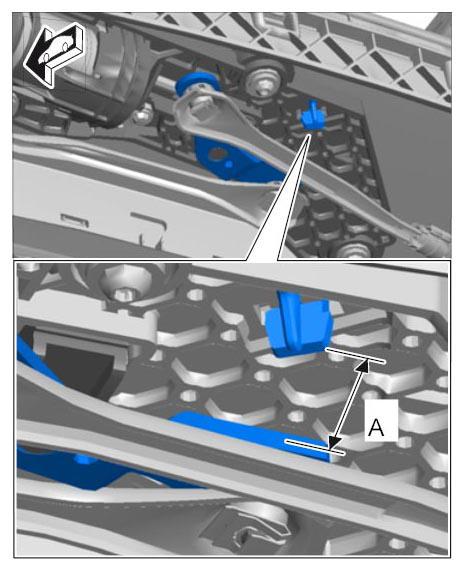

| Distance from reversing lever to limit stop | Distance | 20 mm | |||
|
Moving motor for spoiler drive into adjustment position |
|||||
