Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

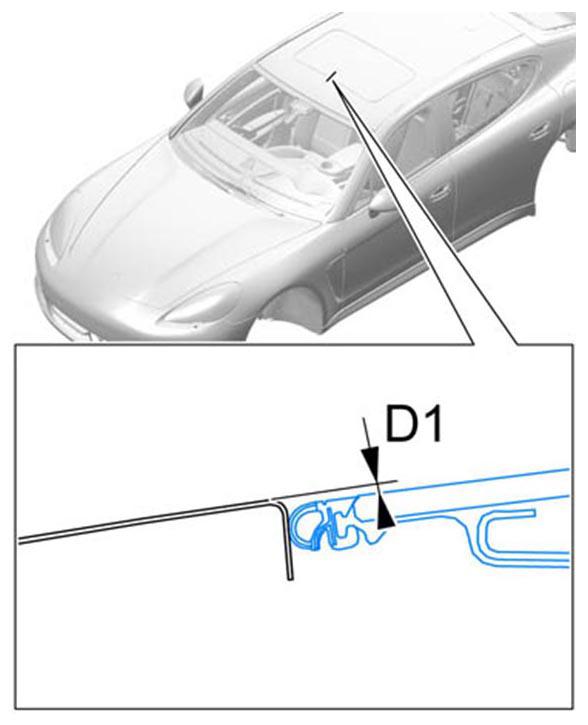

| Sliding-roof panel to roof (D1) | Lowered only | Gap dimension | 0 mm | -1 mm | |
|
Gap dimension |
|||||

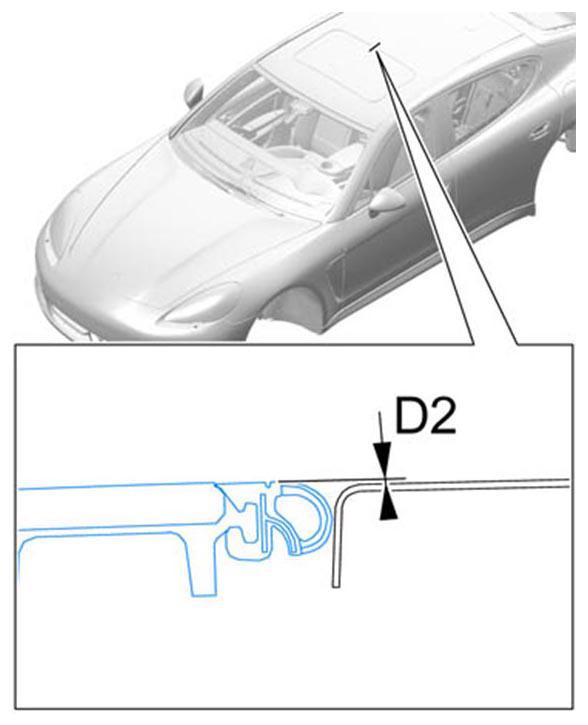

| Sliding-roof panel to roof (D2) | Raised only | Gap dimension | 0 mm | +1 mm | |
|
Gap dimension |
|||||

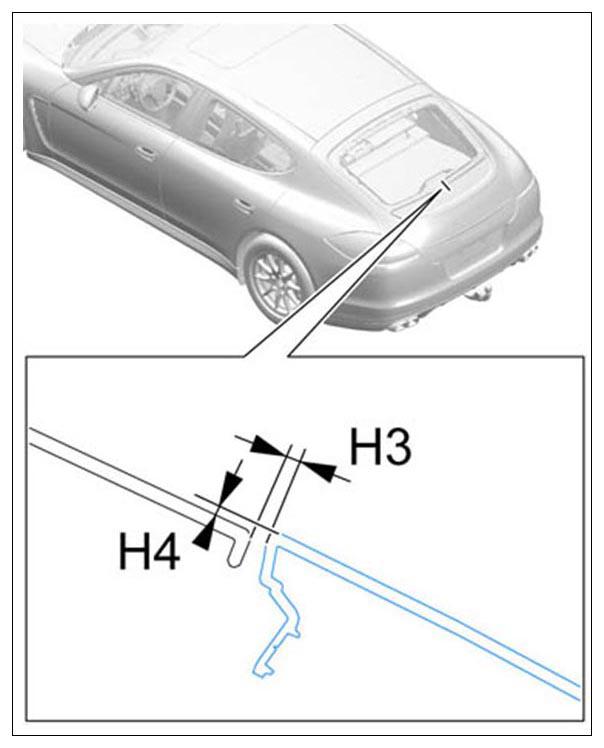

| Rear spoiler to rear window (H3) | Gap dimension | 4 mm | +1 mm | -0.5 mm | |
|
Gap dimension |
|||||

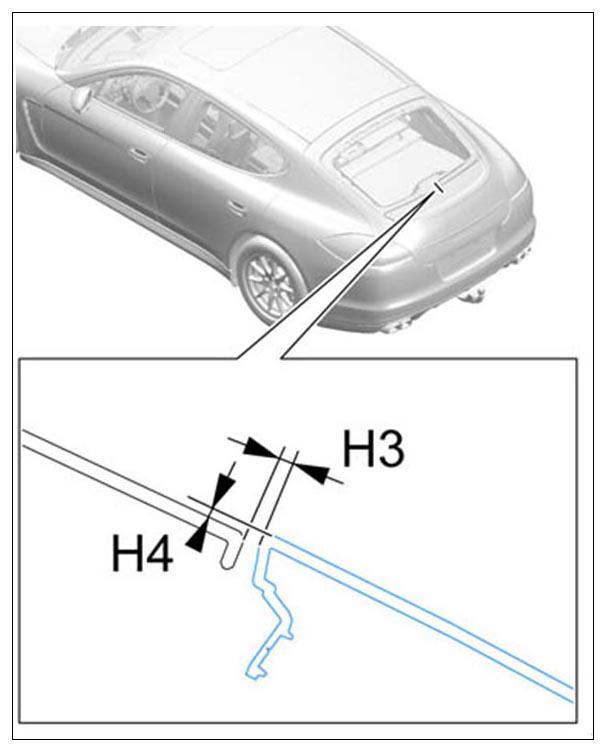

| Rear spoiler to rear window (H4) | Gap dimension | 3 mm | +/-1 mm | ||
|
Gap dimension |
|||||

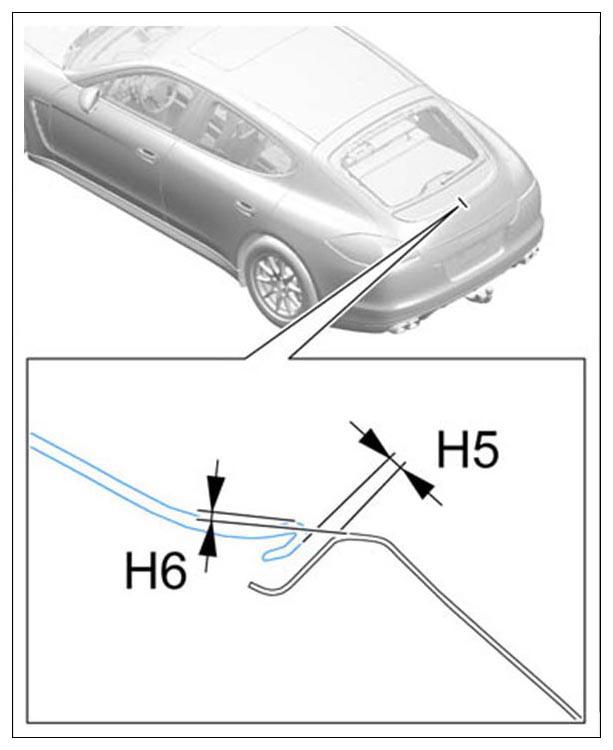

| Rear spoiler to rear lid (H5) | Gap dimension | 4 mm | +/-0.5 mm | ||
|
Gap dimension |
|||||

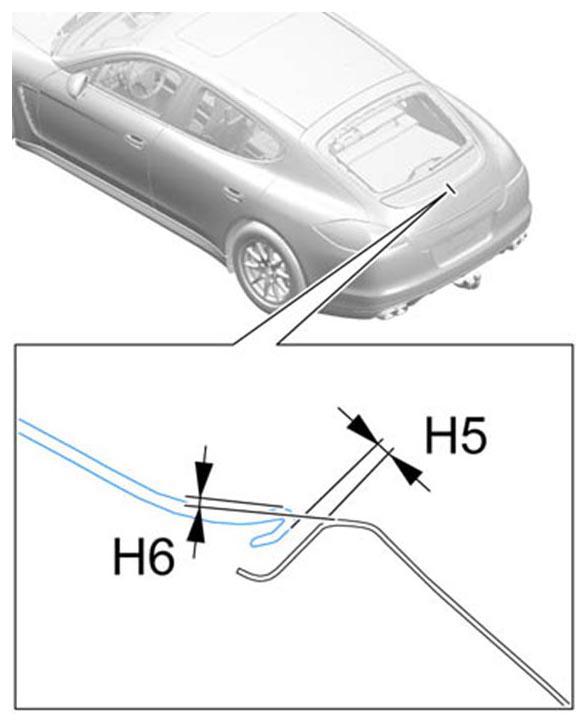

| Rear spoiler to rear lid (H6) | Gap dimension | 1 mm | -1 mm | ||
|
Gap dimension |
|||||

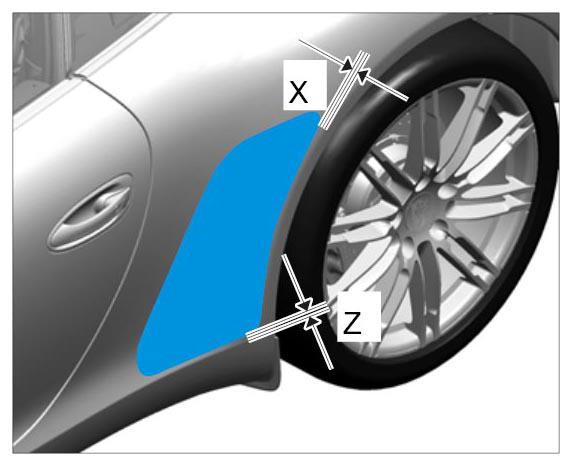

| Gap dimension from outer edge of film to radial run-out line | Item X | Gap dimension | 40 mm | +/-1 mm | |
|
Affixing stone guard film |
|||||
| Gap dimension from lower edge of door to lower edge of film | Item Z | Gap dimension | 2 mm | +/-1 mm | |
|
Affixing stone guard film |
|||||
