Gap Dimensions Of Rear Spoiler
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

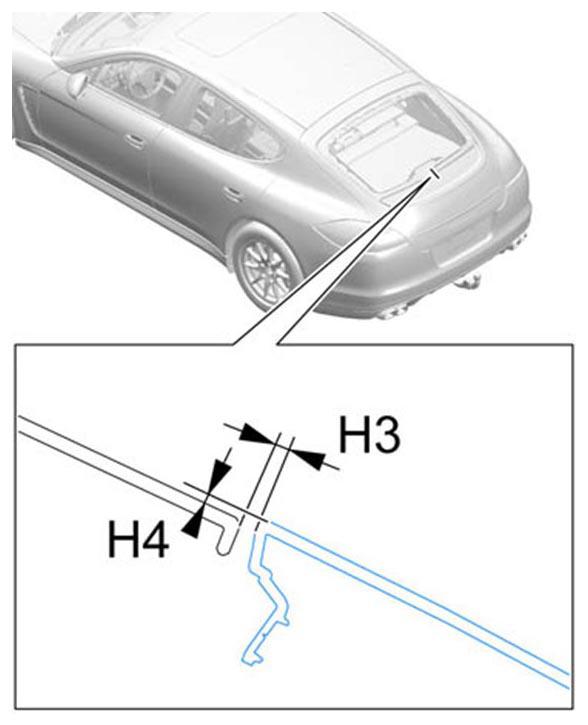

| Rear spoiler to rear window (H3) | Gap dimension | 4 mm | +1 mm | -0.5 mm | |
|
Gap dimension |
|||||
| Rear spoiler to rear window (H4) | Gap dimension | 3 mm | +/-1 mm | ||
|
Gap dimension |
|||||

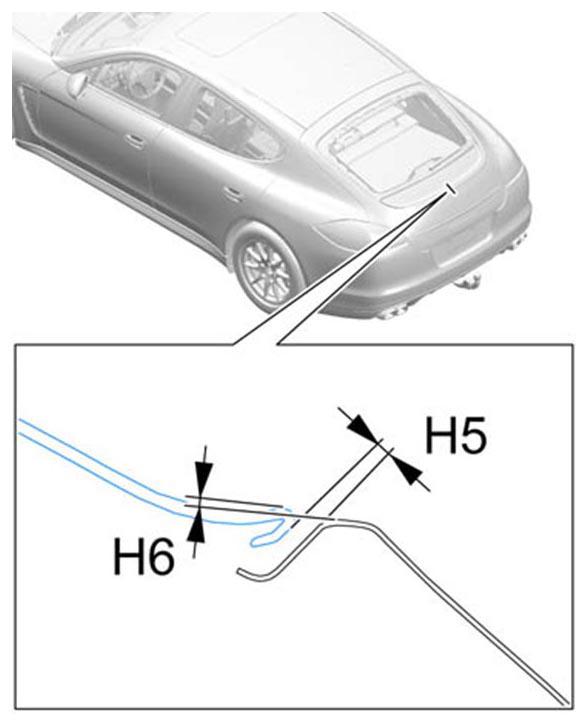

| Rear spoiler to rear lid (H5) | Gap dimension | 4 mm | +/-0.5 mm | ||
|
Gap dimension |
|||||
| Rear spoiler to rear lid (H6) | Gap dimension | 1 mm | -1 mm | ||
|
Gap dimension |
|||||
