Heel-Plate Cross Member/Support

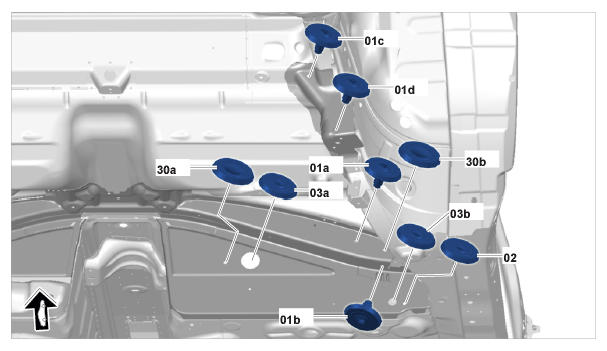

Fig 1: Identifying Heel-Plate Cross Member/Support
G09809023Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 01a  - Heel-plate cross member, upper (2x)
  2. 01b  - Heel-plate cross member, upper (2x)
  3. 01c  - Support (2x)
  4. 01d  - Heel-plate cross member, lower (2x)
  5. 02  - Heel-plate cross member, lower (2x)
  6. 03a  - Heel-plate cross member, lower (2x)
  7. 03b  - Heel-plate cross member, lower (2x)
  8. 30a  - Heel-plate cross member, lower (2x)
  9. 30b  - Heel-plate cross member, upper (2x)
