Removing Crankshaft Pulse Sender

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew the fastening screw -2-  .

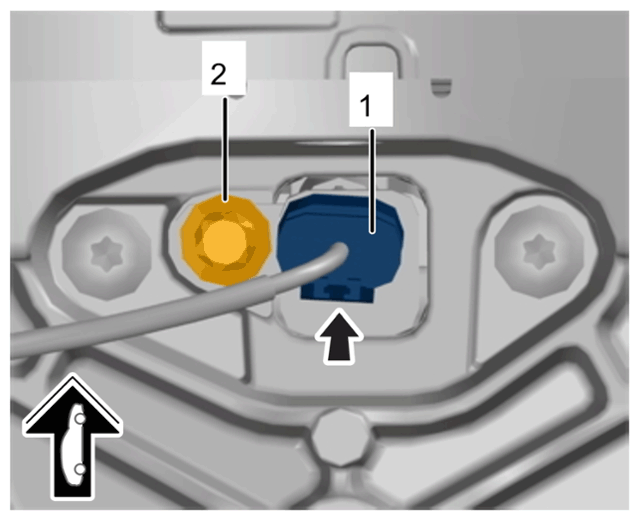

    G15198999Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing crankshaft pulse sender

  2. Carefully pull out the crankshaft pulse sender -1-  and cable.
  3. Disconnect the electric connector for the crankshaft pulse sender. -arrow-
