Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove cover for front underbody.

    > WM 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY (PANAMERA, PANAMERA S, PANAMERA S EXECUTIVE, PANAMERA 4, PANAMERA 4S, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO S) - portion on "Removing"

  2. Remove front-axle support.

    > WM 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT (EXCEPT PANAMERA GTS, PANAMERA TURBO S, PANAMERA PLATINUM ED., PANAMERA 4 PLATINUM ED.) - portion on "Removing"

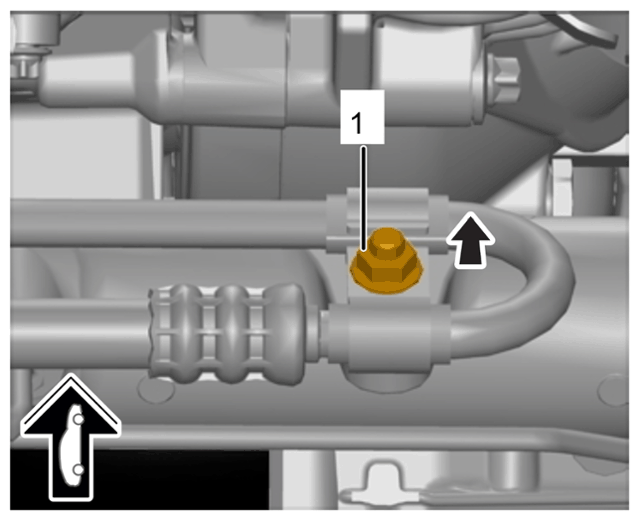

  3. Loosen mountings -1-  for steering fluid line at the steering gear and carefully pull the line aside.
    G15198998Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for steering fluid line
