Removing Spark Plugs

NOTIFICATION

Broken spark plug electrodes

• Bits of electrodes can fall into the combustion chamber

Information

• Only use spark plugs approved by Porsche AG!
• Check electrode gap before screwing in a new spark plug.
• The electrode gap is printed on the spark plug as a numeric code and is interpreted differently depending on the manufacture.

For example, for an NGK spark plug: B C P R 7 E S - 11 -> 11 = 1.1 mm electrode gap

Example for a Bosch spark plug: W R 7 D T C X -> X = 1.1 mm electrode gap

• There is no number code printed on spark plugs with the PORSCHE part number 0PB905612  (BOSCH R8). Electrode gap = 0.7 mm

1. Loosen spark plugs using > 3122B - Spark plug wrench  .

   Spark plugs for cylinders 3 and 6 need a shorter tool setup! Use a medium extension with a cardan join, and spark plug socket for this.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

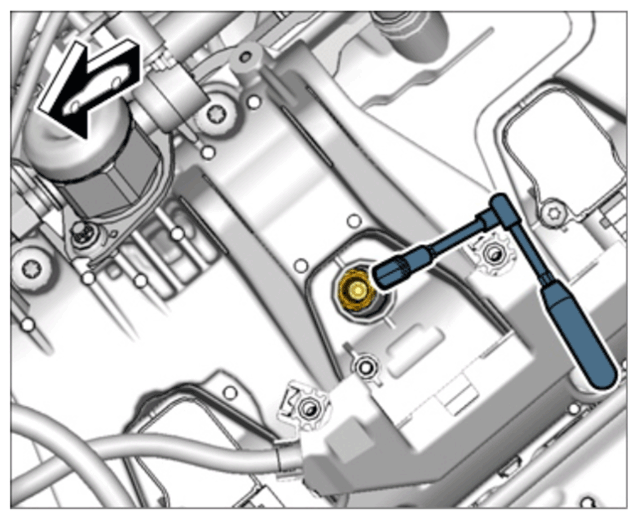

   Spark plug with tool (shown as an example)

2. Check electrode gap.

   > Control value 0.7 mm + 0.1 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

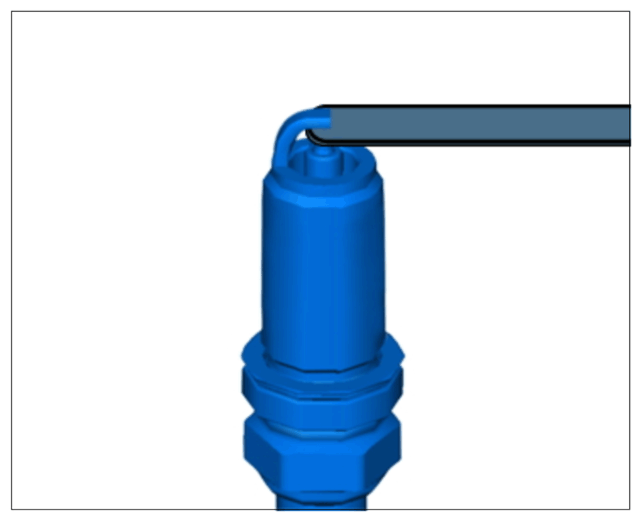

   Electrode gap of spark plug
