Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Fit design cover for cylinder head cover.

    > 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)

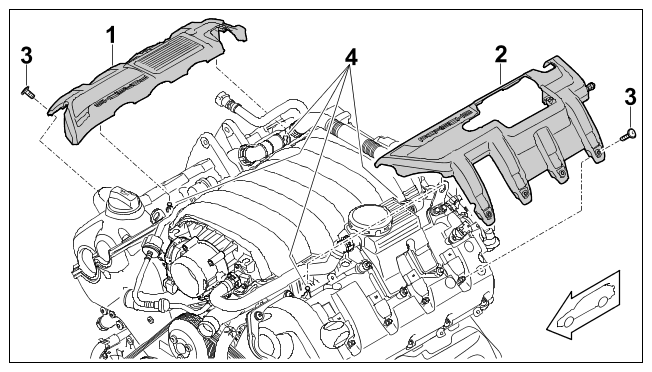

    Fig 1: Engine Design Cover Components Location
    G15198974Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Engine design cover

    1  Design cover for cylinder bank 1 to 4
    2  Design cover for cylinder bank 5 to 8
    3  Screw for securing design cover to bar ignition module
    4  Mounting points (tapered rubber elements)
