Removing Exhaust Camshaft Sensor

WARNING: This page is about a different variant/trim than selected.

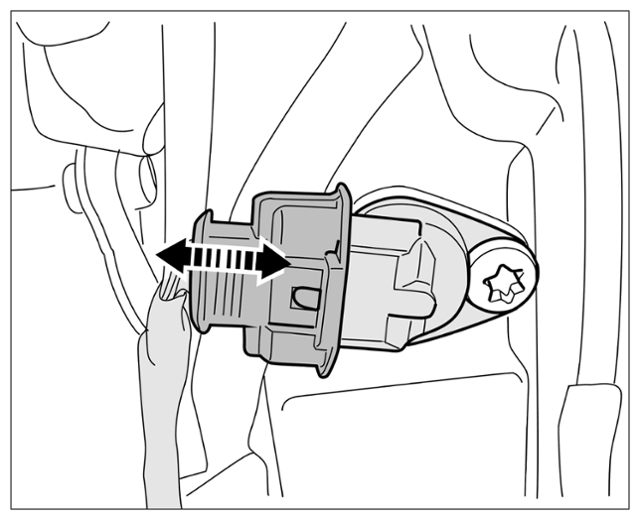

Release and unplug connector for camshaft sensor. > Camshaft sensor connector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Camshaft sensor connector

Loosen fastening screw on -3- the camshaft sensor and carefully pull out the camshaft sensor -4- .

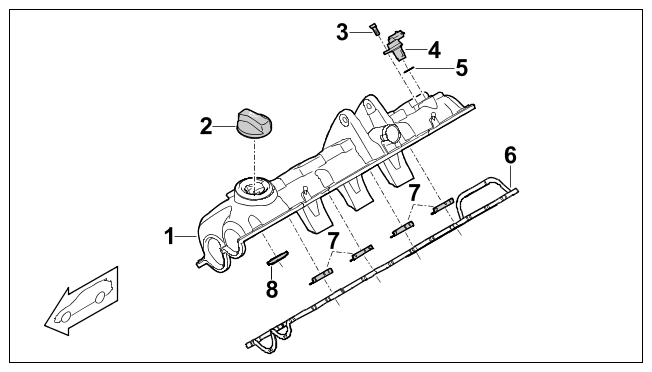

Fig 1: Valve Cover Gaskets, Cylinders 1 To 4 Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Valve cover gaskets, cylinders 1 to 4

1	Valve cover for cylinders 1 to 4 (align over rod ignition modules)
2	Oil cap
3	Aluminium screw , M6 x 20; camshaft sensor (phase sensor); always use new aluminium screws
4	Camshaft sensor
5	Sealing ring
6	Cylinder head cover gasket
7	Cylinder head cover gasket, inner
8	Seal for hydraulic valve for camshaft control

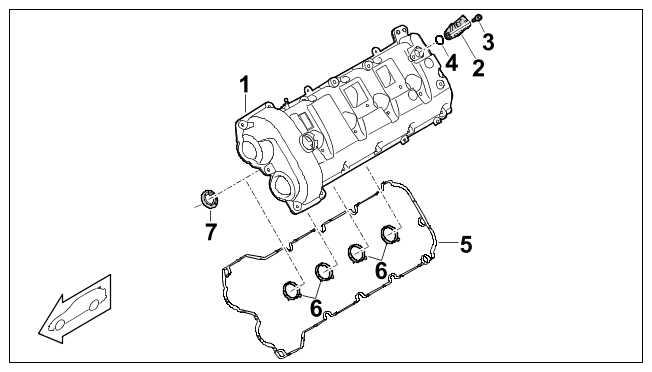

Fig 2: Valve Cover Cylinder Seals 5 To 8 Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Valve cover cylinder seals 5 to 8

1	Valve cover for cylinders 5 to 8 (align over rod ignition modules)
2	Camshaft sensor
3	Aluminium screw , M6 x 20; camshaft sensor (phase sensor); always use new aluminium screws
4	Sealing ring
5	Cylinder head cover gasket
6	Cylinder head cover gasket, inner
7	Seal for hydraulic valve for camshaft control
