Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove design cover on cylinder head cover for the affected cylinder bank.

    > 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)

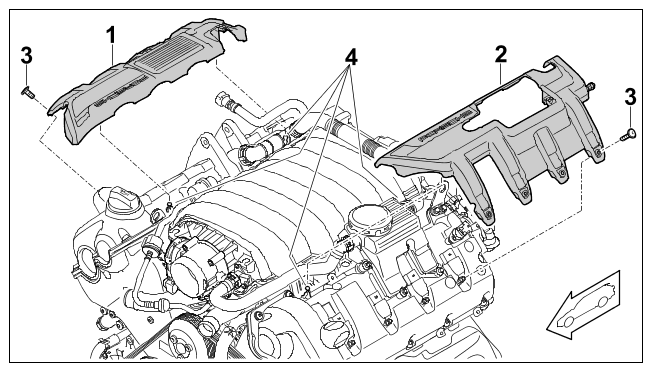

    Fig 1: Engine Design Cover Components Location
    G15198967Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Engine design cover

    1  Design cover for cylinder bank 1 to 4
    2  Design cover for cylinder bank 5 to 8
    3  Screw for securing design c over to bar ignition module
    4  Mounting points (tapered rubber elements)
