Install Camshaft Sensor
WARNING: This page is about a different variant/trim than selected.
Information
The tightening specifications for the basic engine are stored centrally.
/
or
> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS
Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.
- Replace sealing ring.
- Carefully install the camshaft sensor -4-
. Fit fastening screw -3-
for the camshaft sensor.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

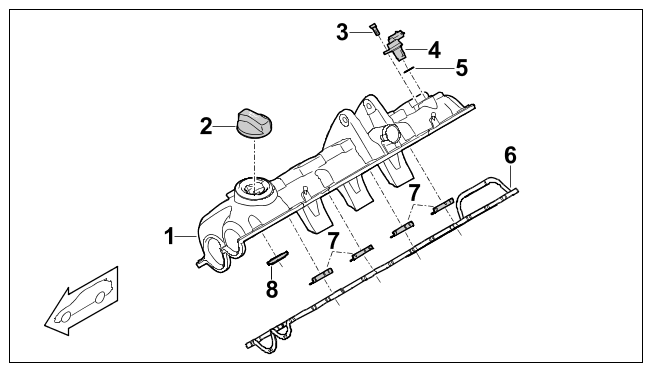

Valve cover gaskets, cylinders 1 to 4
1 Valve cover for cylinders 1 to 4 (align over rod ignition modules) 2 Oil cap 3 Aluminium screw , M6 x 20; camshaft sensor (phase sensor); always use new aluminium screws 4 Camshaft sensor 5 Sealing ring 6 Cylinder head cover gasket 7 Cylinder head cover gasket, inner 8 Seal for hydraulic valve for camshaft control Courtesy of PORSCHE CARS NORTH AMERICA, INC.

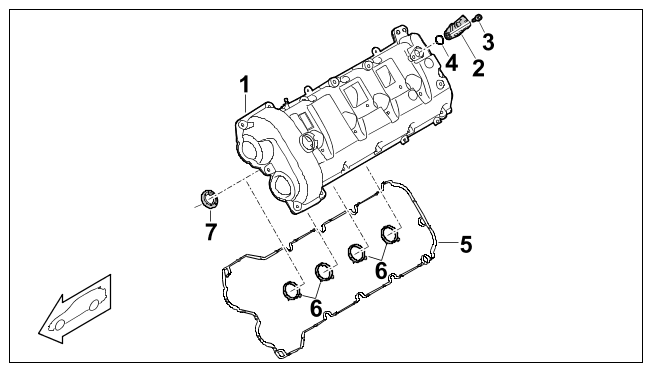

Valve cover cylinder seals 5 to 8
1 Valve cover for cylinders 5 to 8 (align over rod ignition modules) 2 Camshaft sensor 3 Aluminium screw , M6 x 20; camshaft sensor (phase sensor); always use new aluminium screws 4 Sealing ring 5 Cylinder head cover gasket 6 Cylinder head cover gasket, inner 7 Seal for hydraulic valve for camshaft control - Slide on cable plug. The connector must lock with an audible click.

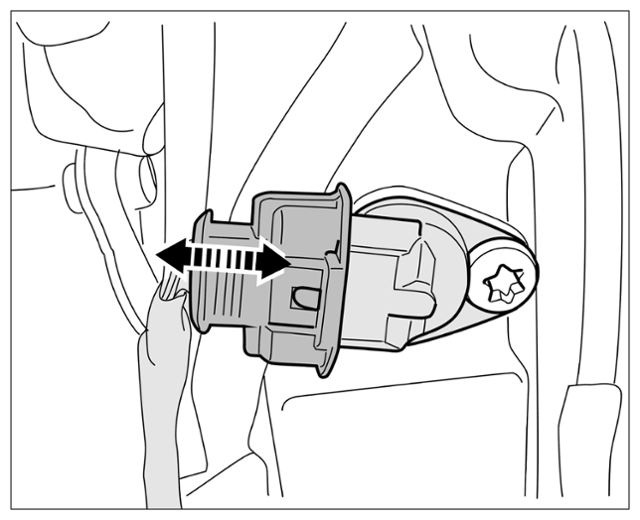

Camshaft sensor connector
