Installing Ignition Coils

Information

The tightening specifications for the basic engine are stored centrally.

> TECHNICAL VALUES

/

> WM 2X00IN TECHNICAL VALUES (PANAMERA, PANAMERA S, PANAMERA S EXECUTIVE, PANAMERA 4, PANAMERA 4S, PANAMERA 4 S EXECUTIVE)

or

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS

Tightening torques and assembly instructions for other assemblies (e.g. chassis electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

1. Always use new  aluminium screws for ignition coils and fit them securely > Fastening screw for ignition coil  . Fit cable plug. > Cable plug for ignition coil

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw for ignition coil

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

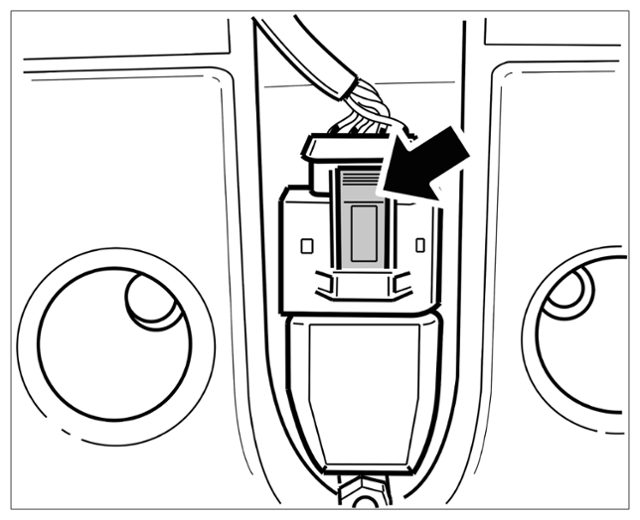

   Cable plug for ignition coil

2. Follow the instructions in reverse order for removal.
