Component Overview

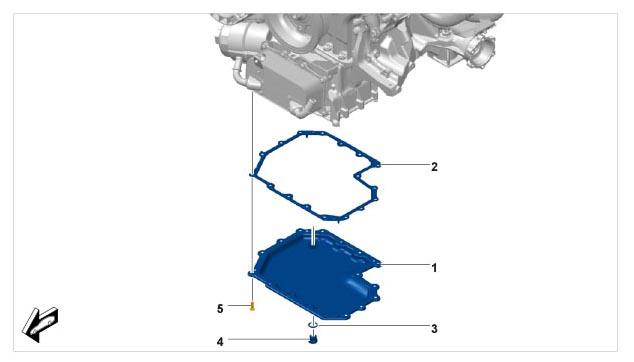

Fig 1: Identifying Oil Pan Components
G09805030Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Oil pan
  2. Seal
  3. Seal
  4. Oil drain plug, M18; aluminum screw; re-usable
  5. Screw, M6 x 20
