Information
Please note the following for the V6 =>
- The repair concepts for the V6 are the same as for the V8.
- The special features and component deviations are listed and shown in
> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS
- More significant deviations are shown in separate descriptions.
- If no special features are specifically highlighted, the assembly and adjustment instructions for the V8 apply.

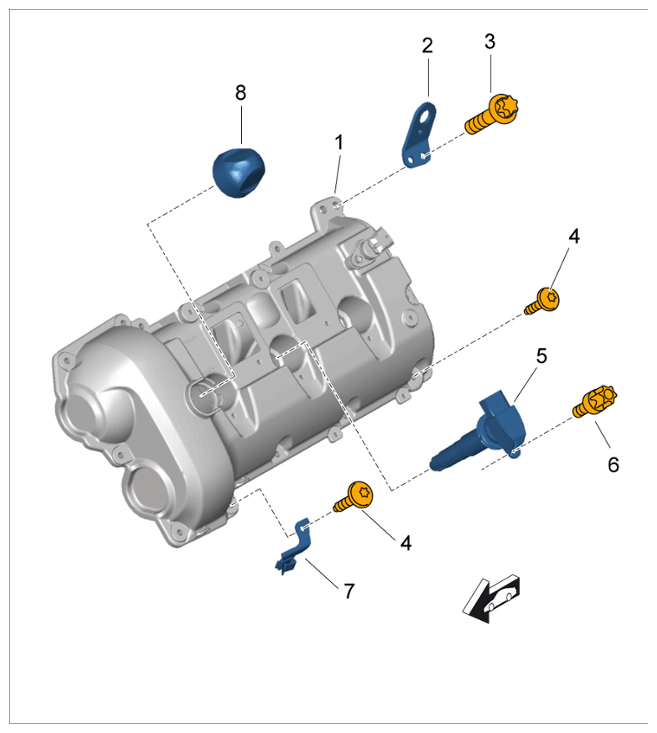

Valve cover, mounting for cylinder bank 4 to 6
| 1 | Valve cover for cylinder bank 4 to 6 (align over bar ignition modules) |
| 2 | Eyelet |
| 3 | Steel screw on eyelet |
| 4 | Aluminium screw M6 x 30; always use new aluminium screws |
| 5 | Bar ignition module |
| 6 | Aluminium screw M6 x 20; bar ignition module; always use new aluminium screws |
| 7 | Sheetmetal holder |
| 8 | Cap |

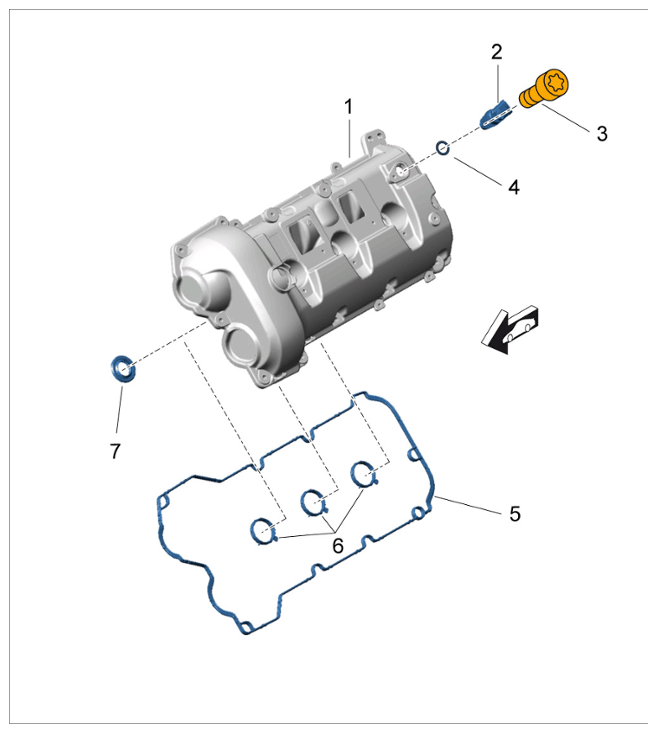

Valve cover seals, fitted on cylinder bank 4 to 6
| 1 | Valve cover for cylinders 4 to 6 (align over bar ignition modules) |
| 2 | Hall sender |
| 3 | Aluminium screw M6 x 20; hall sender (phase sensor); always use new aluminium screws |
| 4 | Sealing ring |
| 5 | Cylinder-head cover gasket |
| 6 | Cylinder-head cover gasket, inner |
| 7 | Seal for hydraulic valve for camshaft control |
