Technical Values -66- Rear Wheel Covers
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Wheel cover to rear apron | Tapping screw | Tightening torque | 2 Nm (1.5 ftlb.) | ||
| Fastening nut on door entry guard bracket | Item 1 | Tightening torque | 6 Nm (4.5 ftlb.) | ||
|

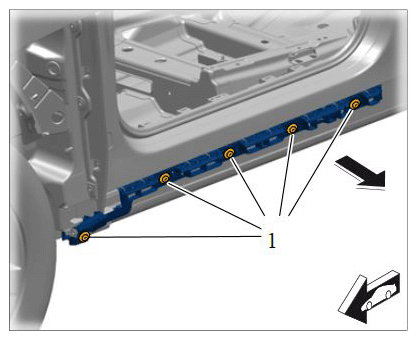

Support rail for door entry guard |
|||||
| Fastening nut on bracket for rear step | Item 1 | Tightening torque | 6 Nm (4.5 ftlb.) | ||
|

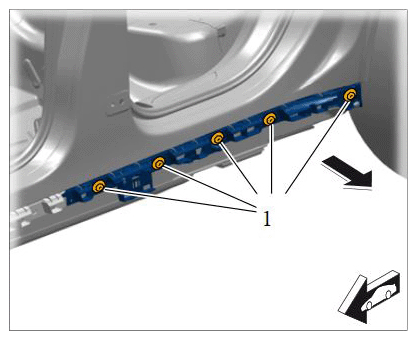

Bracket for rear step |
|||||
| Fastening nut on bracket for front step | Item 1 | Tightening torque | 6 Nm (4.5 ftlb.) | ||
|

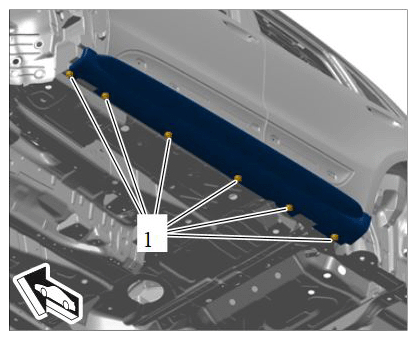

Bracket for front step |
|||||
| Fastening screw securing step to underbody | Item 1 | Tightening torque | 2.5 Nm (2 ftlb.) | ||
|

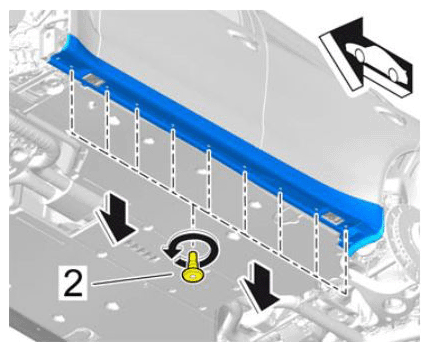

Bottom of step |
|||||
| Fastening screws for door entry guard | Tightening torque | 2.5 Nm (2 ftlb.) | |||
|

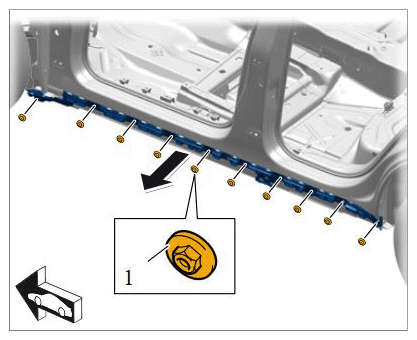

Door entry guard mounting |
|||||
