Installing Rain Sensor

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Limited rain sensor function if the following points are not observed:

There must be no air trapped between the windscreen and silicone layer on the rain sensor .
The temperature of the windscreen and rain sensor must be approx. 20 °C during assembly. Carefully heat the windscreen and rain sensor using a hot-air gun if necessary .
The contact surfaces must be free of grease and dirt .
Do not touch silicone layer on the rain sensor .
Do not remove the protection cap from a new rain sensor until immediately before pressing the rain sensor onto the windscreen .

Clean the contact area for the rain sensor on the inside of the windscreen.

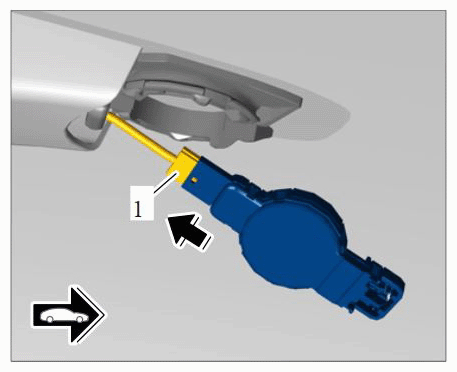

Plug electric plug connection -1- into the rain sensor until it engages securely.

Connecting electric plug connection
Remove protection cap from the rain sensor.

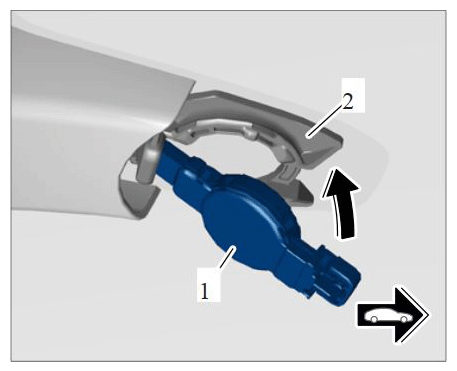

Position rain sensor -1- and insert it into the adhesive plate -2- .

Fitting rain sensor
