Removing Brake Light Switch
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

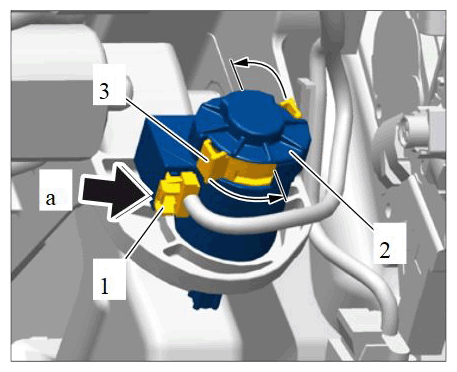

- Release electric plug connection -1-
(-a-
) and pull it off the brake light switch -2-
.

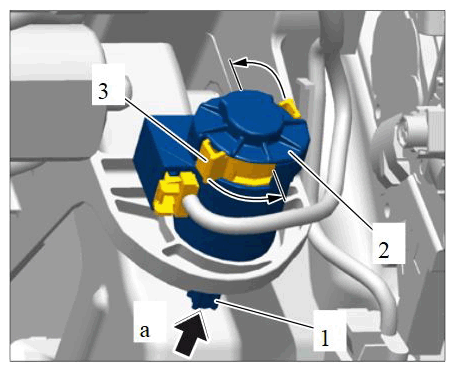

- Press tappet -1-
fully into the brake light switch -2-
(-a-
).
Pressing in tappets
- Disengage locking ring -3- and turn it approx. 60° anti-clockwise until it engages.

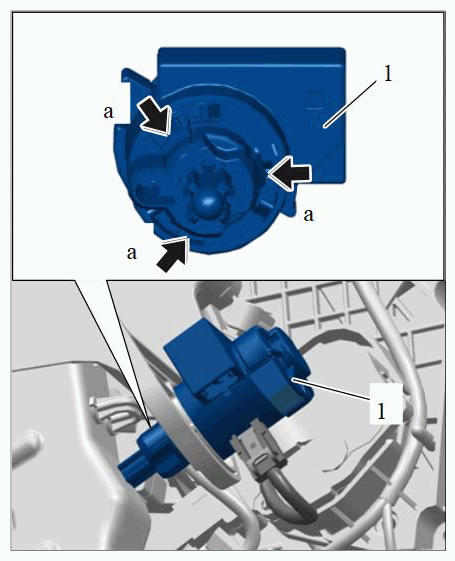

- Press locking lugs -a-
and pull the brake light switch -1-
to the rear and out of the pedal bearing block.
Removing brake light switch
