Removing Front Door

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

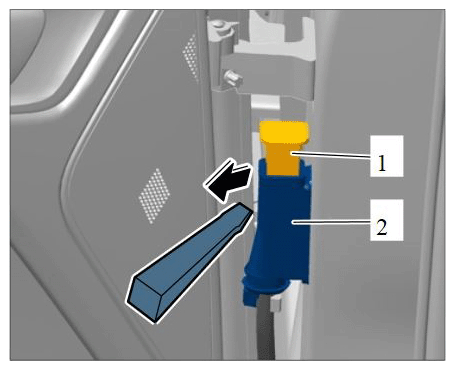

  1. Slide the locking mechanism -1-  up using a suitable tool and disconnect plug connection -2-  .
    G11984112

    Disconnecting electric plug connection

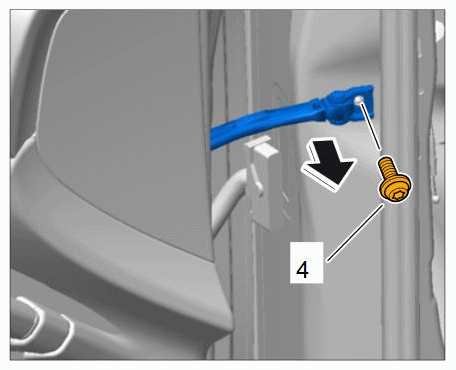

  2. Unscrew and remove fastening screw on the door arrester -4-  at the vehicle door.
    G11984113

    Unscrewing fastening screw on door arrester

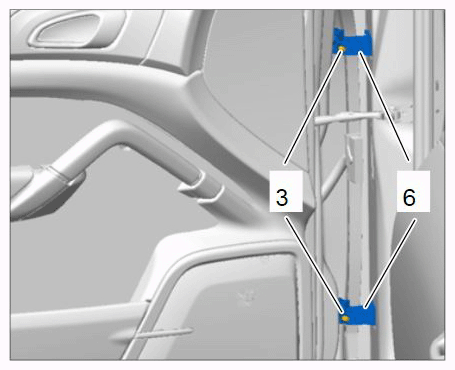

  3. Pull plastic caps -3-  off the hinge screws at the top and bottom hinge joints -6-  .
    G11984114

    Pulling off caps on hinge screws

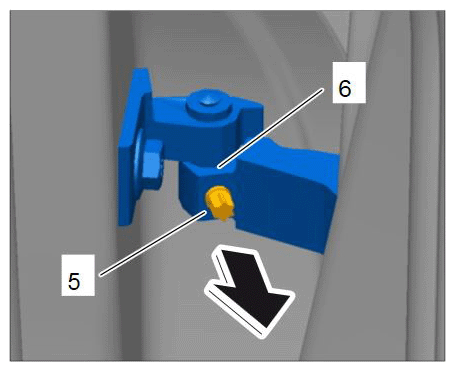

  4. Loosen fastening screws -5-  on the top and bottom hinge joint -6-  .
    G11984115

    Loosening hinge joint

  5. Get another person to hold the vehicle door.

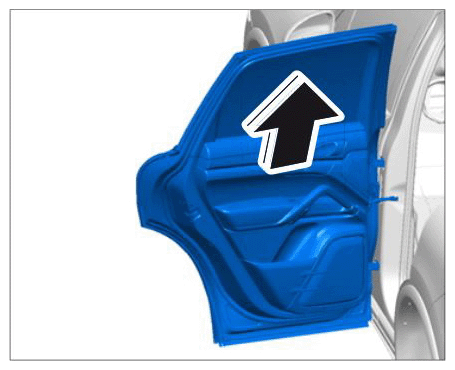

  6. Lift the vehicle door up slightly until the hinge bolts come out of the hinge halves on the door side.
    G11984116

    Lifting vehicle door

  7. Remove vehicle door.
